ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

diagram 55620A 55620B 58810J 58815F 58815F 58818A 58818A 58836B 58941A 58995A 58996A 8401 8401 8401 8420 8601 8601 SU00300013 SU00300064 SU00300064 SU00300068 SU00300068 SU00302919
Part # Description Qty Price
55620A - CUSHION(FOR CUP HOLDER)
SU003-03213

ZN6

 1
55620B - HOLDER, INSTRUMENT PANEL CUP
SU003-03208

ZN6

 1
58810J - BOX ASSY, CONSOLE
SU003-03186

ZN6..RHD..BASE

 1
58815F - CARPET, CONSOLE BOX
SU003-03211

ZN6..BASE

 1
58815F - CARPET, CONSOLE BOX
SU003-03211

ZN6..BASE

 1
58818A - COVER, CONSOLE BOX, FR
SU003-03202

ZN6..BASE

 1
58818A - COVER, CONSOLE BOX, FR
SU003-03202

ZN6..BASE

 1
58836B - PAD, CONSOLE BOX SILENCER, NO.1
SU003-03209

ZN6

 2
58941A - COVER, PARKING BRAKE HOLE
SU003-03198

ZN6..RHD..BASE

DESTINATION CODE=KA

 1
SU003-07097

ZN6..RHD..BASE

DESTINATION CODE=EK

 1
SU003-07097

ZN6..RHD..BASE

DESTINATION CODE=KC

 1
SU003-07097

ZN6..RHD..BASE

DESTINATION CODE=EN

 1
SU003-07097

ZN6..RHD..BASE

DESTINATION CODE=K8

 1
SU003-07097

ZN6..RHD..BASE

DESTINATION CODE=ER

 1
SU003-07097

ZN6..RHD..BASE

DESTINATION CODE=KY

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
SU003-03214

ZN6

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
SU003-03215

ZN6

 1
Common parts
SU003-00013
SU003-00064
SU003-00068
SU003-02919
Linked diagrams
8401
8420
8601

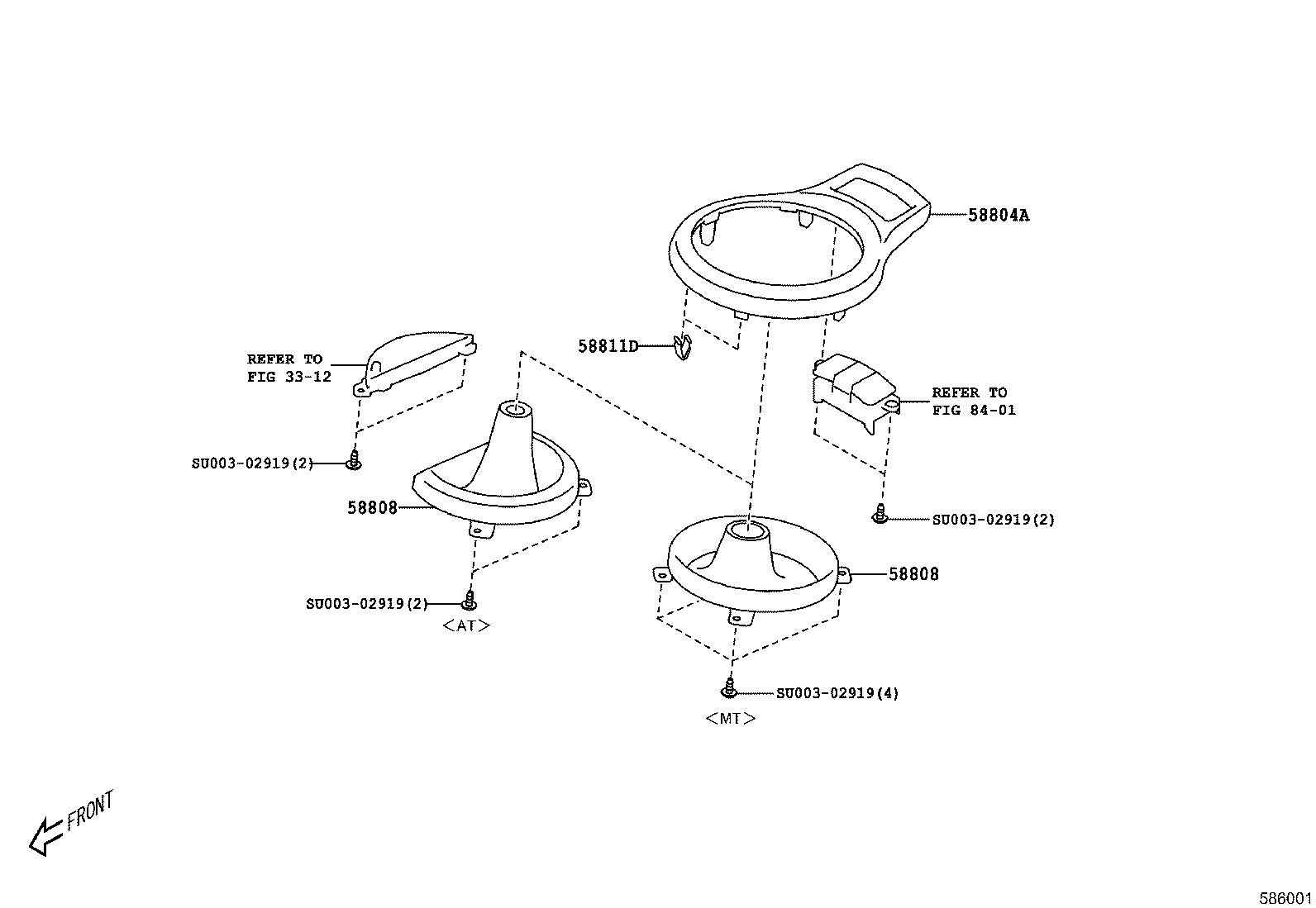

ILLUST NO. 2 OF 2(1608- )

Click highlighted areas on diagram

diagram 3312 58804A 58808 58808 58811D 8401 SU00302919 SU00302919 SU00302919 SU00302919
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
SU003-06016

ZN6..RHD..BASE

DESTINATION CODE=EK

 1
SU003-06016

ZN6..RHD..BASE

DESTINATION CODE=KC

 1
SU003-06016

ZN6..RHD..BASE

DESTINATION CODE=KY

 1
SU003-06016

ZN6..RHD..BASE

DESTINATION CODE=K8

 1
SU003-03190

ZN6..RHD..BASE

DESTINATION CODE=KA

 1
SU003-06016

ZN6..RHD..BASE

DESTINATION CODE=EN

 1
SU003-06016

ZN6..RHD..BASE

DESTINATION CODE=ER

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
SU003-07101

ZN6..6F

STITCH:SILVER

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
SU003-07101

ZN6..6F

STITCH:SILVER

 1
58811D - CLIP(FOR CONSOLE BOX)
SU003-02967

ZN6

 2
Common parts
SU003-02919
Linked diagrams
3312
8401
