ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

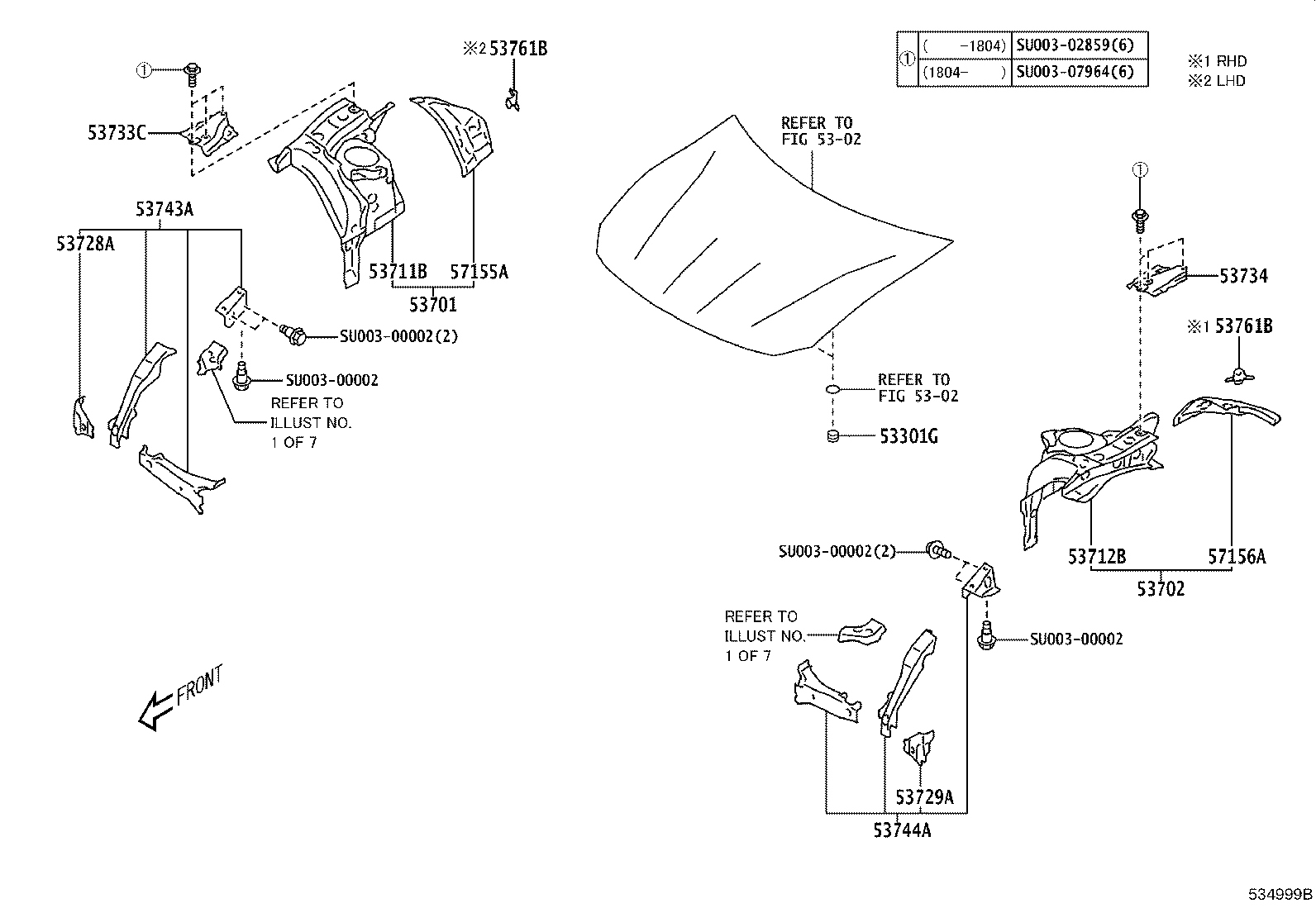

ILLUST NO. 2 OF 7(1608- )

Click highlighted areas on diagram

FENDER APRON & HOOD BUMPER CUSHION

diagram 5302 5302 53301G 53701 53702 53711B 53712B 53728A 53729A 53733C 53734 53743A 53744A 53761B 53761B 57155A 57156A SU00300002 SU00300002 SU00300002 SU00300002 SU00302859 SU00307964
Part # Description Qty Price
53301G - CUSHION, HOOD BUMPER
SU003-01398

ZN6

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
SU003-01310

ZN6

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
SU003-01311

ZN6

 1
53711B - APRON, FRONT FENDER, FRONT RH
SU003-01312

ZN6

 1
53712B - APRON, FRONT FENDER, FRONT LH
SU003-01313

ZN6

 1
53728A - BRACKET, FENDER APRON, RH
SU003-01299

ZN6

 1
53729A - BRACKET, FENDER APRON, LH
SU003-01300

ZN6

 1
53733C - PATCH, FRONT FENDER APRON
SU003-01243

ZN6

 1
53734 - PATCH, FRONT FENDER APRON, NO.4
SU003-01244

ZN6

 1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
SU003-01308

ZN6

 1
53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
SU003-01309

ZN6

 1
53761B - BRACKET, BATTERY CLAMP MOUNTING
SU003-01301

ZN6

 1
53761B - BRACKET, BATTERY CLAMP MOUNTING
SU003-01301

ZN6

 1
57155A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH
SU003-01314

ZN6

 1
57156A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
SU003-01315

ZN6

 1
Common parts
SU003-00002
SU003-02859
SU003-07964
Linked diagrams
5302

ILLUST NO. 4 OF 7(1608- )

Click highlighted areas on diagram

TOE BOARD BRACKET

diagram 1603 55137C 7403 7403 8715 8715 8715 8715 8715 8718 8718 8718 8718 8718 8718 SU00302874
Part # Description Qty Price
55137C - BRACKET, TOE BOARD, NO.2
SU003-02119

ZN6..RHD

 1
Common parts
SU003-02874
Linked diagrams
1603
7403
8715
8718

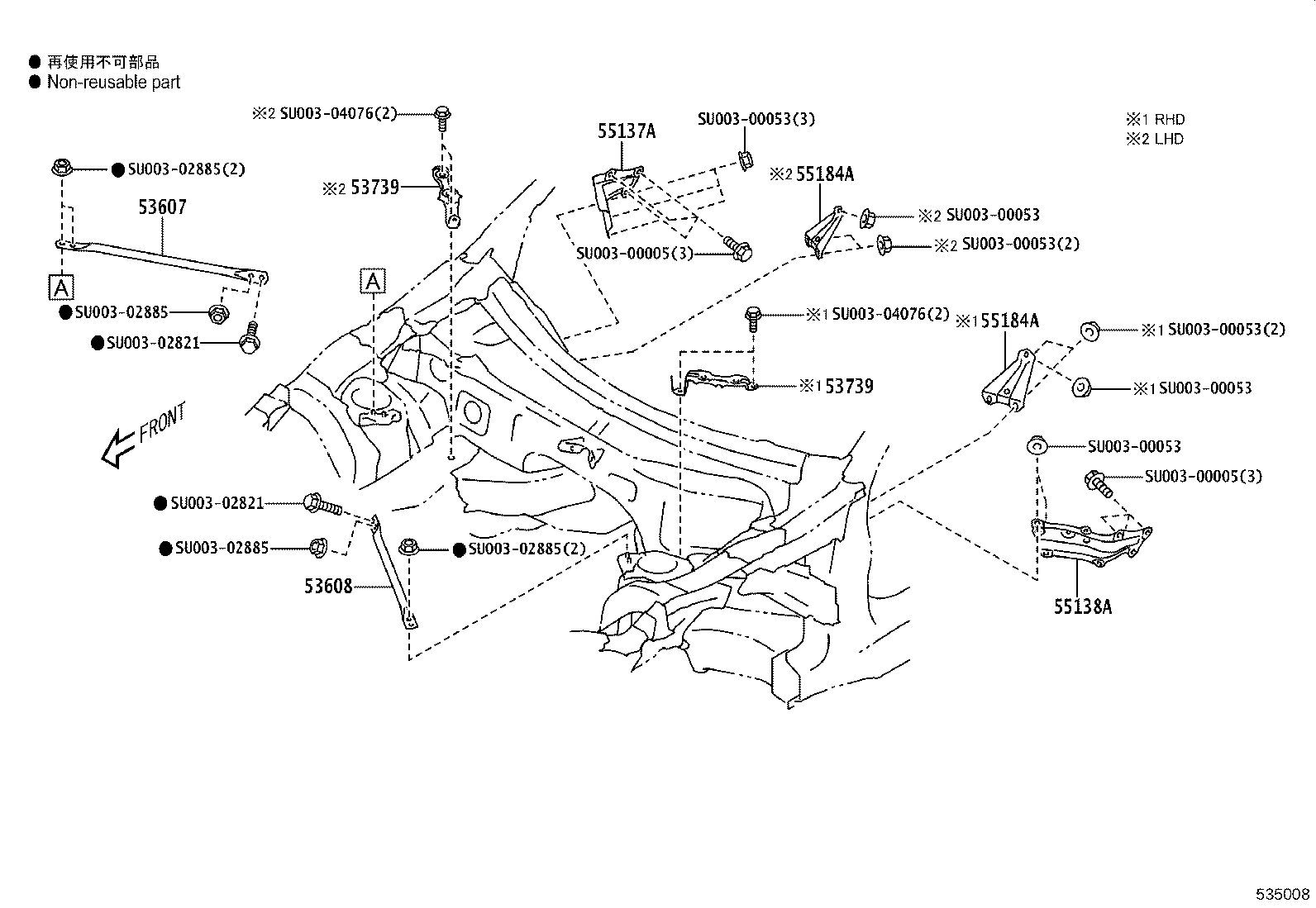

ILLUST NO. 5 OF 7(1608- )

Click highlighted areas on diagram

BRACKET,BRACE

diagram 53607 53608 53739 53739 55137A 55138A 55184A 55184A SU00300005 SU00300005 SU00300053 SU00300053 SU00300053 SU00300053 SU00300053 SU00300053 SU00302821 SU00302821 SU00302885 SU00302885 SU00302885 SU00302885 SU00304076 SU00304076
Part # Description Qty Price
53607 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
SU003-01232

ZN6

 1
53608 - BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH
SU003-01233

ZN6

 1
53739 - BRACKET, BATTERY SUPPORT
SU003-01234

ZN6

 1
53739 - BRACKET, BATTERY SUPPORT
SU003-01234

ZN6

 1
55137A - BRACE, DASH TO FRAME, RH
SU003-01226

ZN6

 1
55138A - BRACE, DASH TO FRAME, LH
SU003-01227

ZN6

 1
55184A - BRACKET, DASH PANEL
SU003-01228

ZN6..RHD

 1
55184A - BRACKET, DASH PANEL
SU003-01228

ZN6..RHD

 1
Common parts
SU003-00005
SU003-00053
SU003-02821
SU003-02885
SU003-04076

ILLUST NO. 6 OF 7(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

CLUTCH MASTER CYLINDER HOLE COVER

diagram 4701 4701 4701 4701 4701 4701 4701 4701 4701 4701 4701 4701 4701 4701 4703 55255 8401 8401
Part # Description Qty Price
Linked diagrams
4701
4703
8401

ILLUST NO. 7 OF 7(1608- )

Click highlighted areas on diagram

WELD BOLT

diagram 5801 5801
Part # Description Qty Price
Linked diagrams
5801

ILLUST NO. 1 OF 7(1608- )

Click highlighted areas on diagram

RADIATOR SUPPORT

diagram 53201 53202 53203 53208 53213A 53214A 53291B 53291K 53291K 57104A 57117E 57118D SU00300002 SU00300002 SU00302822 SU00302822 SU00302822
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
SU003-01364

ZN6

 1
SU003-07360

ZN6

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
SU003-01368

ZN6

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
SU003-01369

ZN6

 1
53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
SU003-01365

ZN6

 1
SU003-07361

ZN6

 1
53213A - SUPPORT, RADIATOR, UPPER RH
SU003-01366

ZN6

 1
53214A - SUPPORT, RADIATOR, UPPER LH
SU003-01367

ZN6

 1
53291B - PLATE, RADIATOR COVER
SU003-01221

ZN6

 1
53291K - CLIP, RADIATOR COVER PLATE
SU003-02984

ZN6

 6
53291K - CLIP, RADIATOR COVER PLATE
SU003-02984

ZN6

 6
57104A - MEMBER SUB-ASSY, FRONT CROSS
SU003-01372

ZN6

 1
57117E - RETAINER, FRONT BUMPER ARM, RH
SU003-01370

ZN6

 1
57118D - RETAINER, FRONT BUMPER ARM, LH
SU003-01371

ZN6

 1
Common parts
SU003-00002
SU003-02822

ILLUST NO. 3 OF 7(1608- )

Click highlighted areas on diagram

DASH PANEL

diagram 5503 5503 5503 55101 55210 SU00303001 SU00303001
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
SU003-07662

ZN6..RHD

 1
55210 - INSULATOR ASSY, DASH PANEL
SU003-02954

ZN6..RHD

 1
Common parts
SU003-03001
Linked diagrams
5503
