ZN6FK-B8 (2017)
Toyota 86
Production
Oct 2017
-
Apr 2018
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1608- )

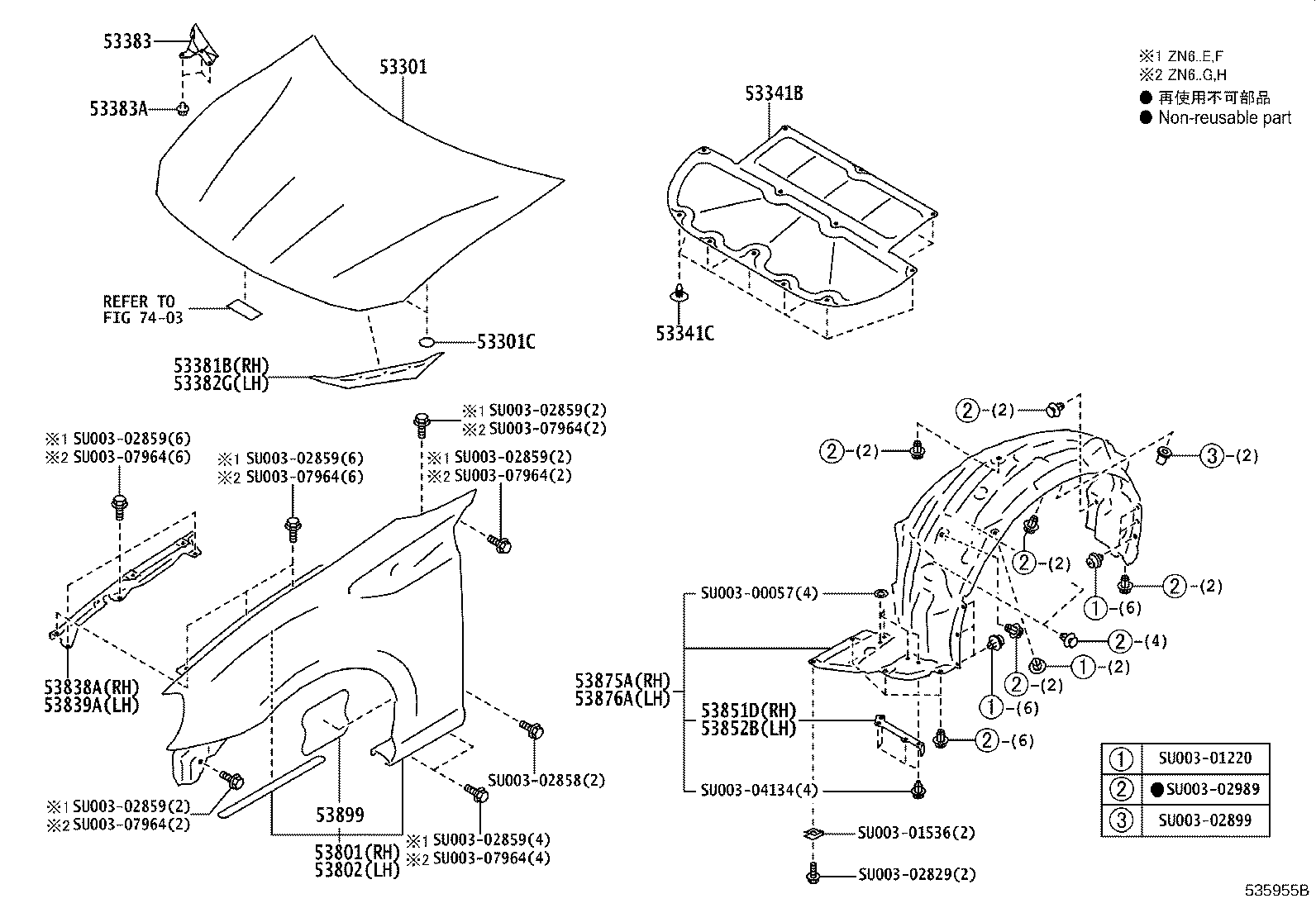

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| SU003-01394 |
ZN6 |
1 | ||
| 53301C - PROTECTOR, HOOD CUSHION | ||||
| SU003-04684 |
ZN6 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| SU003-02960 |
ZN6 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| SU003-03011 |
ZN6 |
12 | ||
| 53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH | ||||
| SU003-01396 |
ZN6 |
1 | ||
| 53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH | ||||
| SU003-01396 |
ZN6 |
1 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| SU003-03138 |
ZN6..RHD |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| SU003-02964 |
ZN6 |
3 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| SU003-01390 |
ZN6 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| SU003-01391 |
ZN6 |
1 | ||
| 53838A - EXTENSHION, FRONT FENDER, RH | ||||
| SU003-01392 |
ZN6 |
1 | ||
| 53839A - EXTENSHION, FRONT FENDER, LH | ||||
| SU003-01393 |
ZN6 |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| SU003-01554 |
ZN6 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| SU003-01555 |
ZN6 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| SU003-06093 |
ZN6 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| SU003-06094 |
ZN6 |
1 | ||
| 53899 - SILENCER | ||||
| SU003-02951 |
ZN6 |
2 | ||
| Common parts | ||||
| SU003-00057 | ||||
| SU003-01220 | ||||
| SU003-01536 | ||||
| SU003-02829 | ||||
| SU003-02858 | ||||
| SU003-02859 | ||||
| SU003-02899 | ||||
| SU003-02989 | ||||
| SU003-04134 | ||||
| SU003-07964 | ||||
| Linked diagrams | ||||
| 7403 | ||||
