ZN6FK-B8 (2017)
Toyota 86
ILLUST NO. 1 OF 4(1608- )ZN6EK,6FK,6GK,6HK
FRONT BRAKE TUBE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47310 - TUBE ASSY, BRAKE, NO.1 | ||||
| SU003-00594 |
ZN6..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| SU003-00598 |
ZN6 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| SU003-04680 |
ZN6..BASE OPTION CODE=AS |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AW |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AD |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AU |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AV |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AM |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AF |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=XF |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=AK |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=XD |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IF |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=ID |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IA |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IC |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=XM |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IU |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=EJ |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IS |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=EF |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=EC |
1 | ||
| SU003-04680 |
ZN6..BASE OPTION CODE=XK |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IJ |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=EM |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IH |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IW |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IV |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IK |
1 | ||
| SU003-06806 |
ZN6 OPTION CODE=IM |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| SU003-00600 |
ZN6 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| SU003-04681 |
ZN6..BASE OPTION CODE=AV |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AW |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AU |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AD |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AS |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AF |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=XD |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=XF |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AK |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=AM |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=XM |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=ID |
1 | ||
| SU003-04681 |
ZN6..BASE OPTION CODE=XK |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IS |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=EM |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IA |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IF |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IJ |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IU |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IC |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=EF |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=EJ |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IK |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=EC |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IW |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IV |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IH |
1 | ||
| SU003-06807 |
ZN6 OPTION CODE=IM |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| SU003-04289 |
ZN6 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| SU003-04290 |
ZN6 |
1 | ||
| 47371 - BRACKET, CONNECTOR | ||||
| SU003-00601 |
ZN6 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| SU003-00605 |
ZN6 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| SU003-00604 |
ZN6..RHD |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| SU003-00612 |
ZN6..RHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| SU003-00599 |
ZN6 |
3 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| SU003-00608 |
ZN6 |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| SU003-00607 |
ZN6 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| SU003-00611 |
ZN6 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| SU003-00609 |
ZN6 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| SU003-00610 |
ZN6..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| SU003-00613 |
ZN6..RHD |
3 | ||
| Common parts | ||||
| SU003-00013 | ||||
| SU003-00015 | ||||
| SU003-00016 | ||||
| SU003-00524 | ||||
| SU003-03017 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 4(1608- )
REAR BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| SU003-00608 |
ZN6 |
2 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| SU003-00607 |
ZN6 |
2 | ||
| Linked diagrams | ||||
| 2211 | ||||
| 7701 | ||||

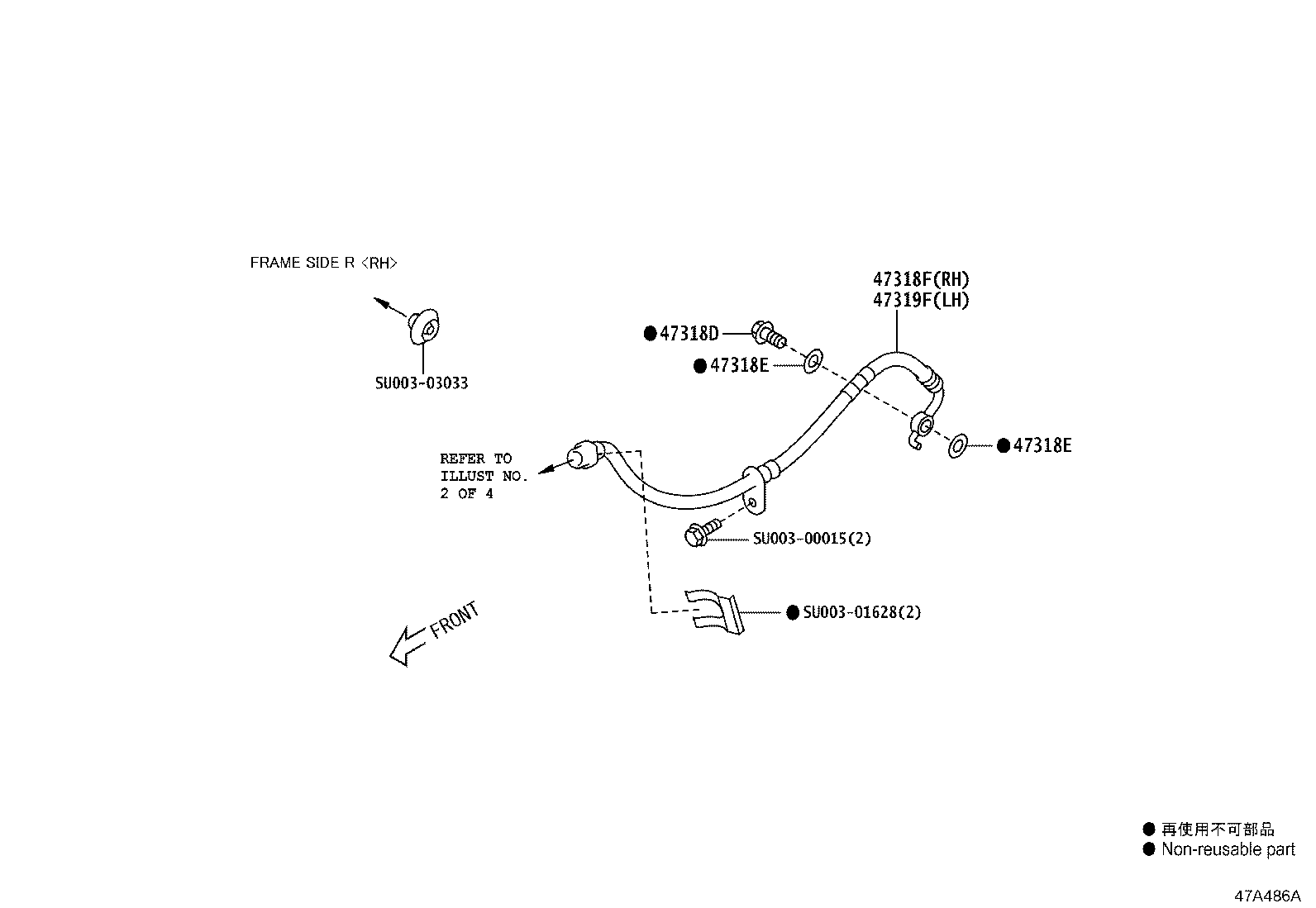

ILLUST NO. 3 OF 4(1608- )
REAR BRAKE HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| SU003-00600 |
ZN6 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| SU003-04682 |
ZN6..BASE OPTION CODE=AF |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=XD |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AM |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AW |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AV |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AU |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=XM |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IF |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AS |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AD |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=ID |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IU |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=XF |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IC |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IS |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=AK |
1 | ||
| SU003-04682 |
ZN6..BASE OPTION CODE=XK |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IA |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=EJ |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IJ |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IK |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IM |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=EC |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IV |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=EF |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IW |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=EM |
1 | ||
| SU003-06808 |
ZN6 OPTION CODE=IH |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| SU003-04683 |
ZN6..BASE OPTION CODE=AV |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AW |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AD |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AF |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=XF |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AU |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=XD |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AS |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=XK |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IA |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IS |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AM |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=XM |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IF |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=ID |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IH |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=EJ |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IK |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=EM |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IW |
1 | ||
| SU003-04683 |
ZN6..BASE OPTION CODE=AK |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IC |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IM |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IJ |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=EC |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IV |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=IU |
1 | ||
| SU003-06809 |
ZN6 OPTION CODE=EF |
1 | ||
| Common parts | ||||
| SU003-00015 | ||||
| SU003-01628 | ||||
| SU003-03033 | ||||
ILLUST NO. 4 OF 4(1608- )
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=ER&OPTION CODE=XD |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EN&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EN&OPTION CODE=XD |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EK&OPTION CODE=XD |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EK&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=ER&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=K8&OPTION CODE=XD |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KY&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KY&OPTION CODE=XD |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=K8&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KC&OPTION CODE=XD |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EK&OPTION CODE=XK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KC&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=EK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=ER&OPTION CODE=XK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EN&OPTION CODE=XK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=EN |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=ER |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KC&OPTION CODE=XK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=KY |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=K8 |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=ER&OPTION CODE=XM |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=KC |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=K8&OPTION CODE=XK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KY&OPTION CODE=XK |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EK&OPTION CODE=XM |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KC&OPTION CODE=XM |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AW&DESTINATION CODE=KA |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=ER |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AD&DESTINATION CODE=KA |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=EN&OPTION CODE=XM |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=K8&OPTION CODE=XM |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AV&DESTINATION CODE=KA |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE DESTINATION CODE=KY&OPTION CODE=XM |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AU&DESTINATION CODE=KA |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AF&DESTINATION CODE=KA |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE DESTINATION CODE=KA&OPTION CODE=XF |
1 | ||
| SU003-07816 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=KC |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE DESTINATION CODE=KA&OPTION CODE=XM |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AM&DESTINATION CODE=KA |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AK&DESTINATION CODE=KA |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE DESTINATION CODE=KA&OPTION CODE=XD |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE OPTION CODE=AS&DESTINATION CODE=KA |
1 | ||
| SU003-07818 |
ZN6..RHD..6F..BASE DESTINATION CODE=KA&OPTION CODE=XK |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=ID |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IA |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IF |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IS |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IS |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IF |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IA |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IU |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=ID |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IA&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=ID&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IS&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IF&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IU |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IC&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EJ&DESTINATION CODE=EK |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IU&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IJ |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EF&DESTINATION CODE=EK |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EF&DESTINATION CODE=ER |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IV |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IM |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=EM |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IH |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EC&DESTINATION CODE=EK |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EJ&DESTINATION CODE=ER |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IW |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IM |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=EK&OPTION CODE=IK |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IW |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EC&DESTINATION CODE=ER |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EJ&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EM&DESTINATION CODE=ER |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EM&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IK |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IJ&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IV |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IJ |
1 | ||
| SU003-07822 |
ZN6..RHD..6F DESTINATION CODE=ER&OPTION CODE=IH |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EF&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IK&DESTINATION CODE=KC |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IF&DESTINATION CODE=KA |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IM&DESTINATION CODE=KC |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IA&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=EF&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=ID&DESTINATION CODE=KA |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IV&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=EC&DESTINATION CODE=KC |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IW&DESTINATION CODE=KC |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IC&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IS&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=EJ&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IH&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IW&DESTINATION CODE=KA |
1 | ||
| SU003-07822 |
ZN6..RHD..6F OPTION CODE=IH&DESTINATION CODE=KC |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IJ&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IM&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IV&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IU&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=IK&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=EM&DESTINATION CODE=KA |
1 | ||
| SU003-07823 |
ZN6..RHD..6F OPTION CODE=EC&DESTINATION CODE=KA |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| SU003-00661 |
ZN6 |
1 | ||
| 44599A - DAMPER, BRAKE ACTUATOR | ||||
| SU003-00660 |
ZN6 NO.2 |
1 | ||
| SU003-00659 |
ZN6 NO.1 |
2 | ||
| 44599A - DAMPER, BRAKE ACTUATOR | ||||
| SU003-00660 |
ZN6 NO.2 |
1 | ||
| SU003-00659 |
ZN6 NO.1 |
2 | ||
| Common parts | ||||
| SU003-00015 | ||||
| SU003-00666 | ||||
| SU003-00667 | ||||
| SU003-00668 | ||||
| SU003-00669 | ||||
| SU003-00671 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
