ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )6F

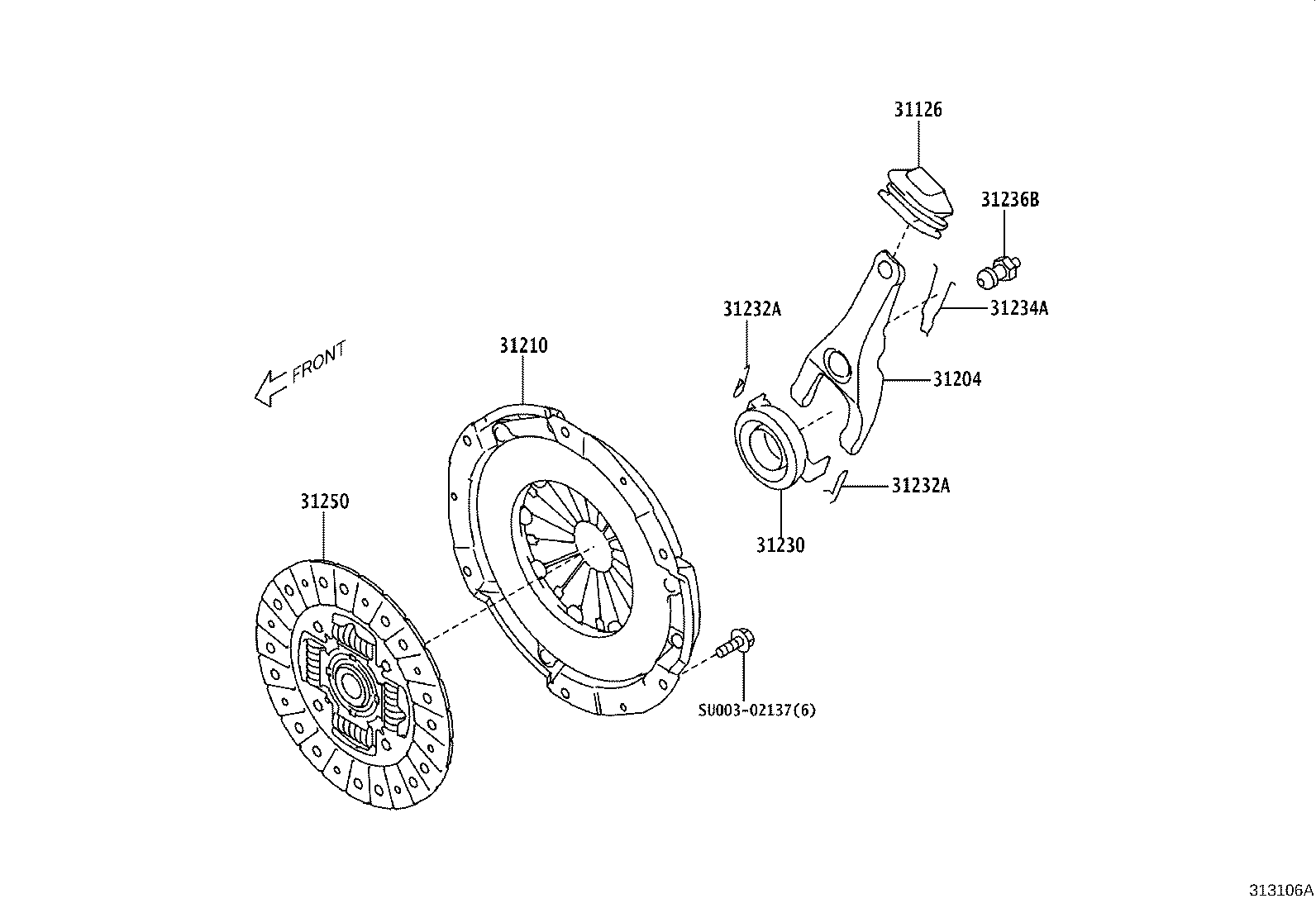

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31234A 31236B 31250 SU00302137
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
SU003-00807

ZN6..6F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
SU003-00803

ZN6..6F

 1
31210 - COVER ASSY, CLUTCH
SU003-00800

ZN6..6F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
SU003-07349

ZN6..6F

 1
31232A - CLIP, RELEASE BEARING HUB
SU003-00806

ZN6..6F

 2
31232A - CLIP, RELEASE BEARING HUB
SU003-00806

ZN6..6F

 2
31234A - SPRING, RELEASE FORK SUPPORT
SU003-00804

ZN6..6F

 1
31236B - SUPPORT, RELEASE FORK
SU003-00805

ZN6..6F

 1
31250 - DISC ASSY, CLUTCH
SU003-00799

ZN6..6F

 1
Common parts
SU003-02137
