ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

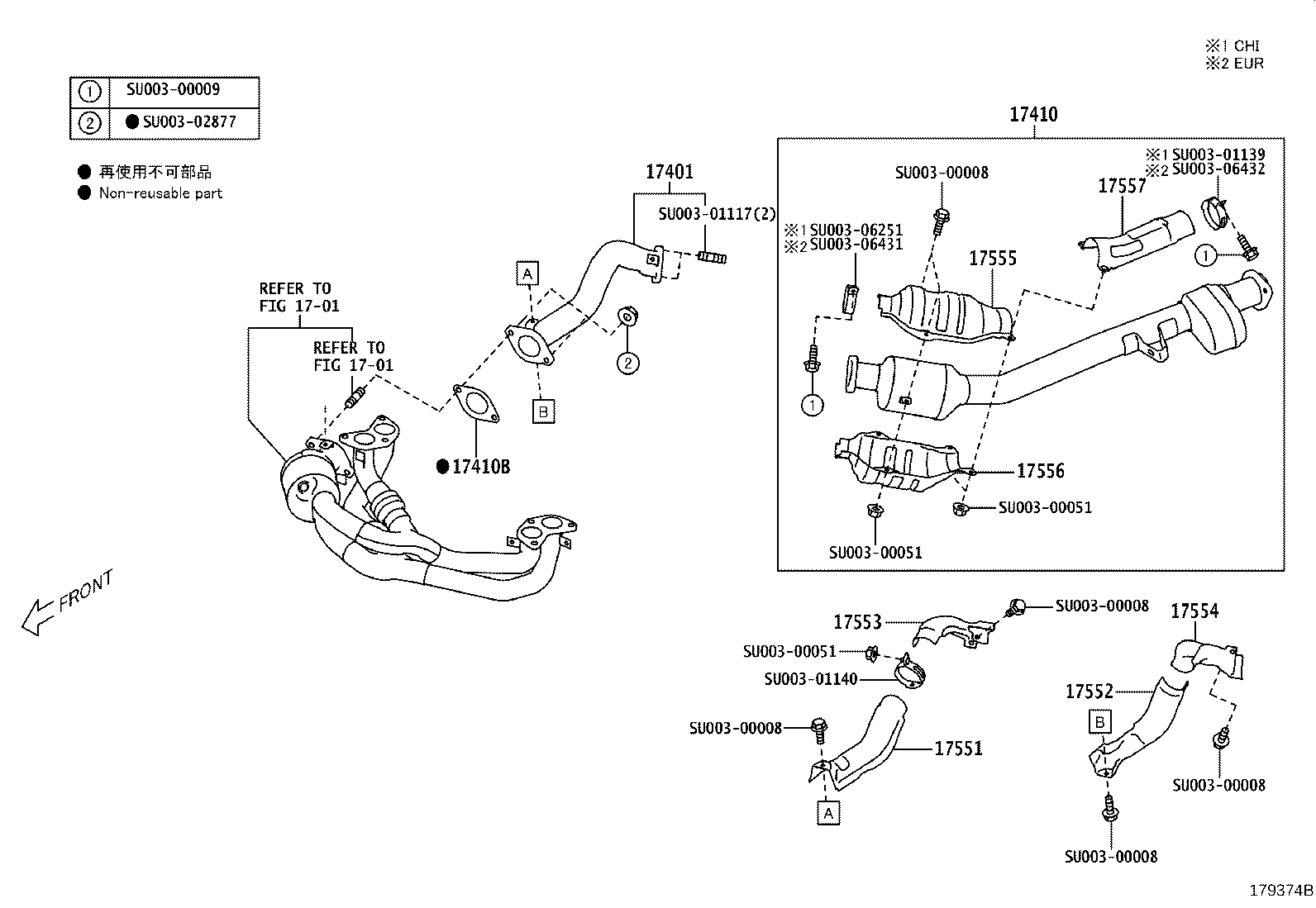

ILLUST NO. 1 OF 2(1608- )

Click highlighted areas on diagram

EXCEPT DESTINATION CODE=KA

diagram 1701 1701 17401 17410 17410B 17551 17552 17553 17554 17555 17556 17557 SU00300008 SU00300008 SU00300008 SU00300008 SU00300008 SU00300009 SU00300051 SU00300051 SU00300051 SU00301117 SU00301139 SU00301140 SU00302877 SU00306251 SU00306431 SU00306432
Part # Description Qty Price
17401 - PIPE SUB-ASSY, EXHAUST, FRONT
SU003-01137

FA20..ZN6

 1
17410 - PIPE ASSY, EXHAUST, FRONT
SU003-06427

FA20..ZN6

*114=SUBARU/RCA41/Y

 1
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
SU003-01165

FA20..ZN6

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
SU003-01167

FA20..ZN6

 1
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
SU003-01169

FA20..ZN6

 1
17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT
SU003-01171

FA20..ZN6

 1
17555 - INSULATOR, EXHAUST PIPE HEAT, NO.5
SU003-06443

FA20..ZN6

 1
17556 - INSULATOR, EXHAUST PIPE HEAT, NO.6
SU003-06444

FA20..ZN6

 1
17557 - INSULATOR, EXHAUST PIPE HEAT, NO.7
SU003-06445

FA20..ZN6

 1
Common parts
SU003-00008
SU003-00009
SU003-00051
SU003-01117
SU003-01139
SU003-01140
SU003-02877
SU003-06251
SU003-06431
SU003-06432
Linked diagrams
1701

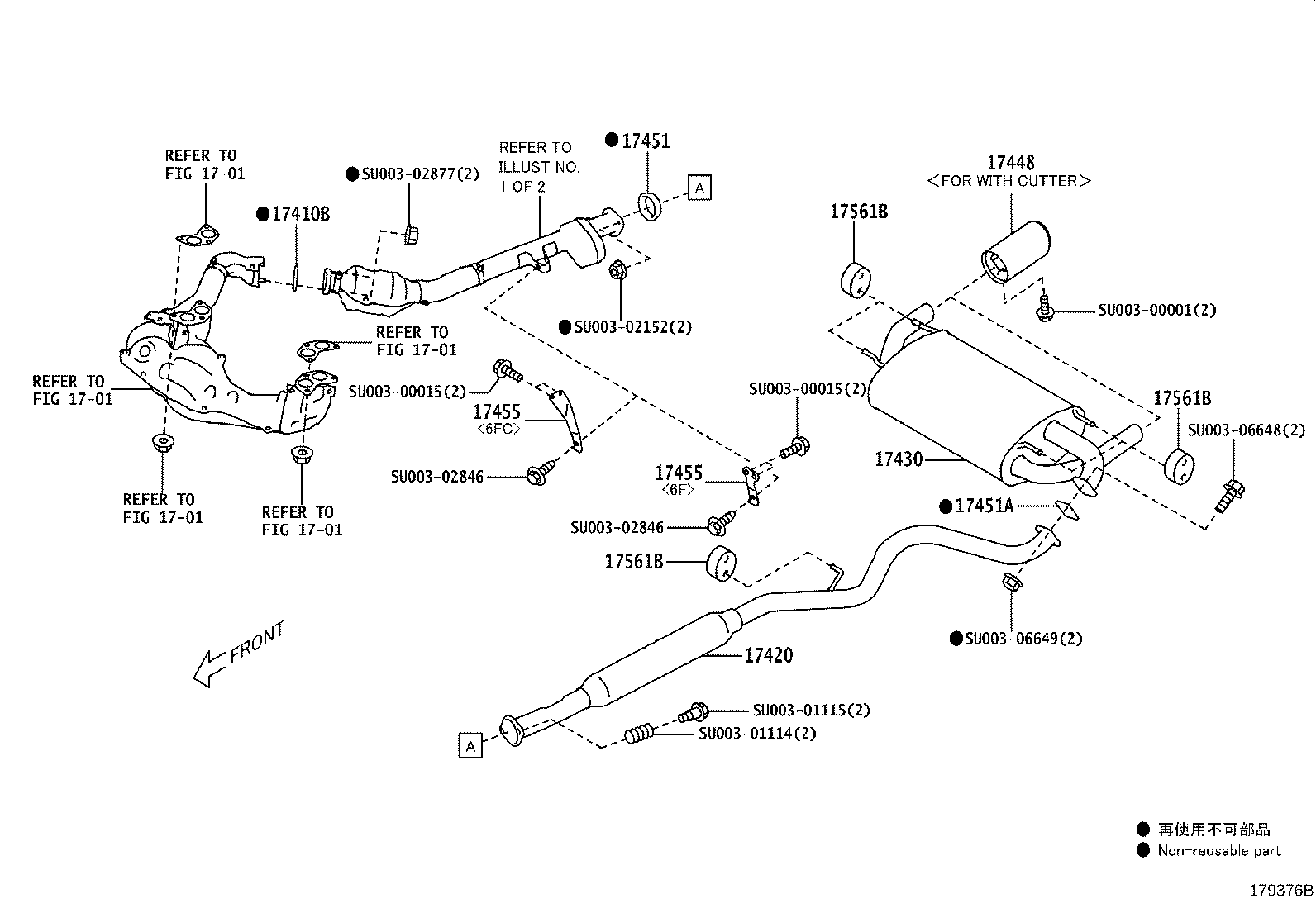

ILLUST NO. 2 OF 2(1608- )

Click highlighted areas on diagram

DESTINATION CODE=E9,KS,KR

diagram 1701 1701 1701 1701 1701 17410B 17420 17430 17448 17451 17451A 17455 17455 17561B 17561B 17561B SU00300001 SU00300015 SU00300015 SU00301114 SU00301115 SU00302152 SU00302846 SU00302846 SU00302877 SU00306648 SU00306649
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 1
17420 - PIPE ASSY, EXHAUST, CENTER
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=KC

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=EN

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=K8

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=KY

 1
SU003-06391

FA20..ZN6..RHD

DESTINATION CODE=EK

 1
SU003-06391

FA20..ZN6..RHD

DESTINATION CODE=ER

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=KA

 1
17430 - PIPE ASSY, EXHAUST, TAIL
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=KC

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=KA

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=EN

 1
SU003-06396

FA20..ZN6..RHD

DESTINATION CODE=EK

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=K8

 1
SU003-06396

FA20..ZN6..RHD

DESTINATION CODE=ER

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=KY

 1
17448 - BAFFLE, TAIL PIPE
SU003-01126

FA20..ZN6..RHD

 2
17451 - GASKET, EXHAUST PIPE
SU003-01112

FA20..ZN6

 1
17451A - GASKET, EXHAUST PIPE, NO.2
SU003-06425

FA20..ZN6

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
Common parts
SU003-00001
SU003-00015
SU003-01114
SU003-01115
SU003-02152
SU003-02846
SU003-02877
SU003-06648
SU003-06649
Linked diagrams
1701

ILLUST NO. 2 OF 2(1608- )

Click highlighted areas on diagram

EXCEPT DESTINATION CODE=E9,KS,KR

diagram 1701 1701 1701 1701 1701 17410B 17420 17430 17448 17451 17451A 17455 17455 17561B 17561B 17561B SU00300001 SU00300015 SU00300015 SU00301114 SU00301115 SU00302152 SU00302846 SU00302846 SU00302877 SU00306648 SU00306649
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 1
17420 - PIPE ASSY, EXHAUST, CENTER
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=KC

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=EN

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=K8

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=KY

 1
SU003-06391

FA20..ZN6..RHD

DESTINATION CODE=EK

 1
SU003-06391

FA20..ZN6..RHD

DESTINATION CODE=ER

 1
SU003-06390

FA20..ZN6..RHD

DESTINATION CODE=KA

 1
17430 - PIPE ASSY, EXHAUST, TAIL
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=KC

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=KA

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=EN

 1
SU003-06396

FA20..ZN6..RHD

DESTINATION CODE=EK

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=K8

 1
SU003-06396

FA20..ZN6..RHD

DESTINATION CODE=ER

 1
SU003-06395

FA20..ZN6..RHD

DESTINATION CODE=KY

 1
17448 - BAFFLE, TAIL PIPE
SU003-01126

FA20..ZN6..RHD

 2
17451 - GASKET, EXHAUST PIPE
SU003-01112

FA20..ZN6

 1
17451A - GASKET, EXHAUST PIPE, NO.2
SU003-06425

FA20..ZN6

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17455 - BRACKET, EXHAUST PIPE
SU003-01129

FA20..ZN6..6F

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
SU003-01116

FA20..ZN6

 5
Common parts
SU003-00001
SU003-00015
SU003-01114
SU003-01115
SU003-02152
SU003-02846
SU003-02877
SU003-06648
SU003-06649
Linked diagrams
1701

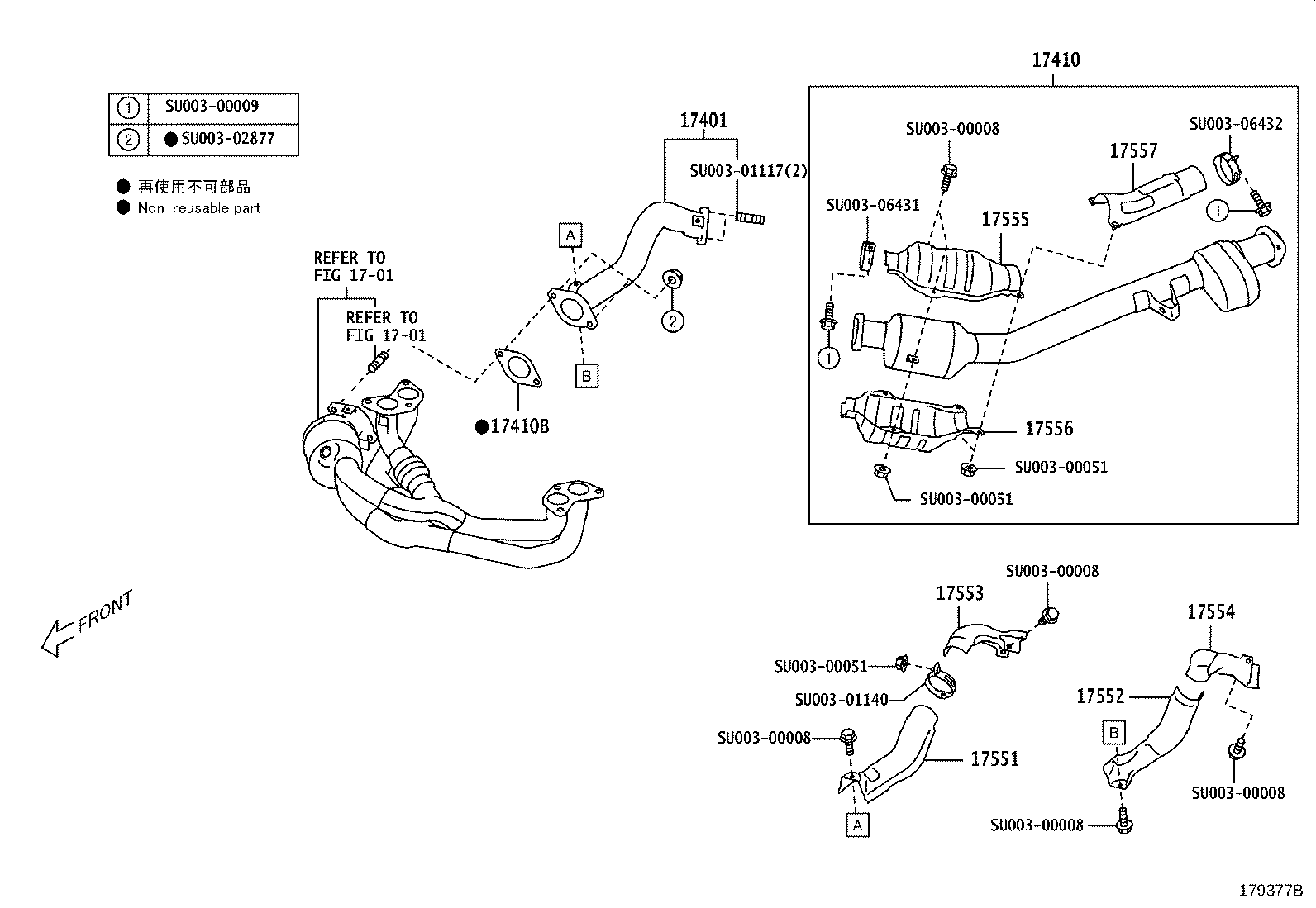

ILLUST NO. 1 OF 2(1608- )

Click highlighted areas on diagram

DESTINATION CODE=KA

diagram 1701 1701 17401 17410 17410B 17551 17552 17553 17554 17555 17556 17557 SU00300008 SU00300008 SU00300008 SU00300008 SU00300008 SU00300009 SU00300051 SU00300051 SU00300051 SU00301117 SU00301140 SU00302877 SU00306431 SU00306432
Part # Description Qty Price
17401 - PIPE SUB-ASSY, EXHAUST, FRONT
SU003-01137

FA20..ZN6

 1
17410 - PIPE ASSY, EXHAUST, FRONT
SU003-06427

FA20..ZN6

*114=SUBARU/RCA41/Y

 1
17410B - GASKET, EXHAUST PIPE
SU003-01110

FA20..ZN6

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
SU003-01165

FA20..ZN6

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
SU003-01167

FA20..ZN6

 1
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
SU003-01169

FA20..ZN6

 1
17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT
SU003-01171

FA20..ZN6

 1
17555 - INSULATOR, EXHAUST PIPE HEAT, NO.5
SU003-06443

FA20..ZN6

 1
17556 - INSULATOR, EXHAUST PIPE HEAT, NO.6
SU003-06444

FA20..ZN6

 1
17557 - INSULATOR, EXHAUST PIPE HEAT, NO.7
SU003-06445

FA20..ZN6

 1
Common parts
SU003-00008
SU003-00009
SU003-00051
SU003-01117
SU003-01140
SU003-02877
SU003-06431
SU003-06432
Linked diagrams
1701
