ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1608- )

Click highlighted areas on diagram

WATER PUMP

diagram 16100 16173 16271 SU00302139 SU00302198
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
SU003-00401

FA20..ZN6

 1
16173 - PULLEY, WATER PUMP
SU003-00403

FA20..ZN6

 1
16271 - GASKET, WATER PUMP
SU003-00402

FA20..ZN6

 1
Common parts
SU003-02139
SU003-02198

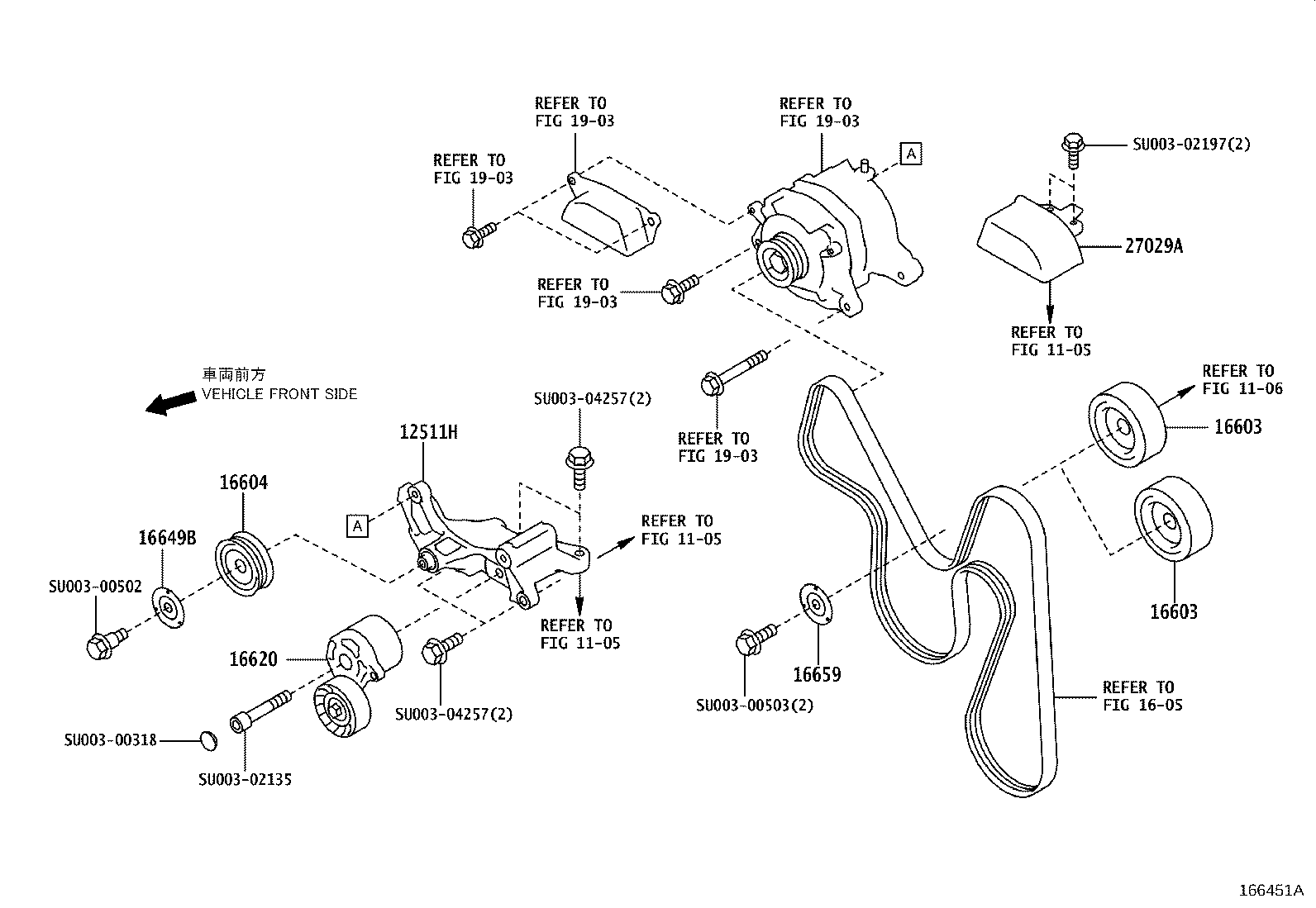

ILLUST NO. 2 OF 2(1608- )

Click highlighted areas on diagram

TENSIONER & IDLER PULLY

diagram 1105 1105 1105 1106 12511H 1605 16603 16603 16604 16620 16649B 16659 1903 1903 1903 1903 1903 27029A SU00300318 SU00300502 SU00300503 SU00302135 SU00302197 SU00304257 SU00304257
Part # Description Qty Price
12511H - BRACKET, ALTERNATOR
SU003-06448

FA20..ZN6

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
SU003-00500

FA20..ZN6

 2
16603 - PULLEY SUB-ASSY, IDLER, NO.1
SU003-00500

FA20..ZN6

 2
16604 - PULLEY SUB-ASSY, IDLER, NO.2
SU003-00501

FA20..ZN6

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
SU003-00498

FA20..ZN6

 1
16649B - PLATE, IDLER PULLEY COVER
SU003-00504

FA20..ZN6

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
SU003-00505

FA20..ZN6

 2
27029A - COVER, BELT ALTERNATOR
SU003-00507

FA20..ZN6

 1
Common parts
SU003-00318
SU003-00502
SU003-00503
SU003-02135
SU003-02197
SU003-04257
Linked diagrams
1105
1106
1605
1903
