ZN6EC-E7 (2016)

Toyota 86

Production Aug 2016 - Oct 2017
Engine FA20
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )ZN6EC,6EL,6FL,6GL,6HC,6HL

Click highlighted areas on diagram

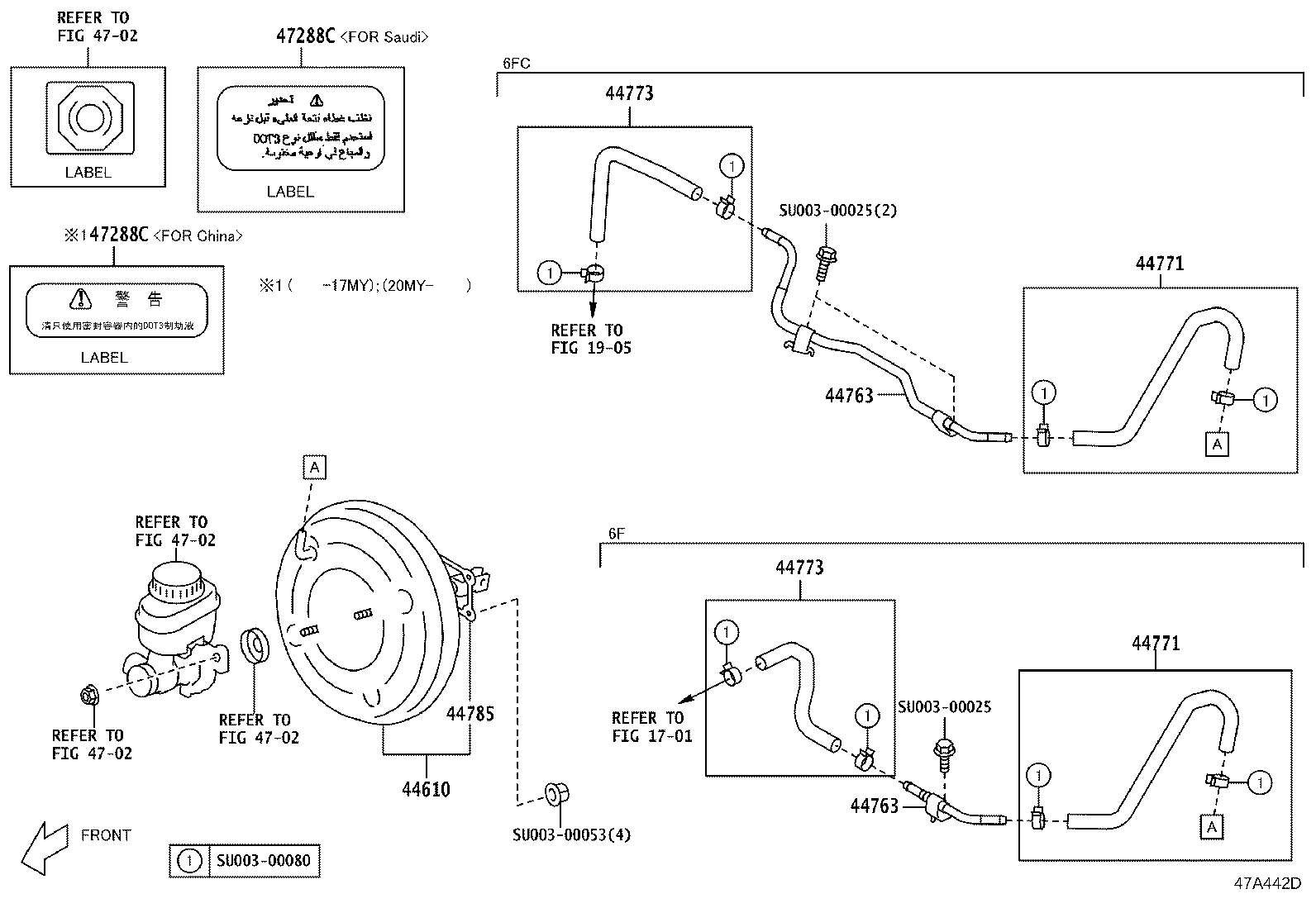

diagram 1701 1905 44610 44763 44763 44771 44771 44773 44773 44785 4702 4702 4702 4702 47288C 47288C SU00300025 SU00300025 SU00300053 SU00300080
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
SU003-00590

ZN6..LHD

 1
44763 - TUBE, BOOSTER VACUUM
SU003-00560

ZN6..LHD..6FC

 1
SU003-00562

ZN6..LHD..6F

 1
44763 - TUBE, BOOSTER VACUUM
SU003-00560

ZN6..LHD..6FC

 1
SU003-00562

ZN6..LHD..6F

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
SU003-04752

ZN6..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
SU003-04752

ZN6..LHD

 1
44773 - HOSE, VACUUM, NO.2
SU003-04753

ZN6..LHD..6FC

 1
SU003-06244

ZN6..LHD..6F

 1
44773 - HOSE, VACUUM, NO.2
SU003-04753

ZN6..LHD..6FC

 1
SU003-06244

ZN6..LHD..6F

 1
44785 - GASKET, BRAKE BOOSTER
SU003-04545

ZN6

 1
47288C - LABEL, FLUID MARK
SU003-00564

ZN6..CHI

 1
47288C - LABEL, FLUID MARK
SU003-00564

ZN6..CHI

 1
Common parts
SU003-00025
SU003-00053
SU003-00080
Linked diagrams
1701
1905
4702
