RZN185L-GKMSK (1995)
Toyota 4runner
Production
Nov 1995
-
Nov 2002
Engine
3RZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )3RZFE..RZN185

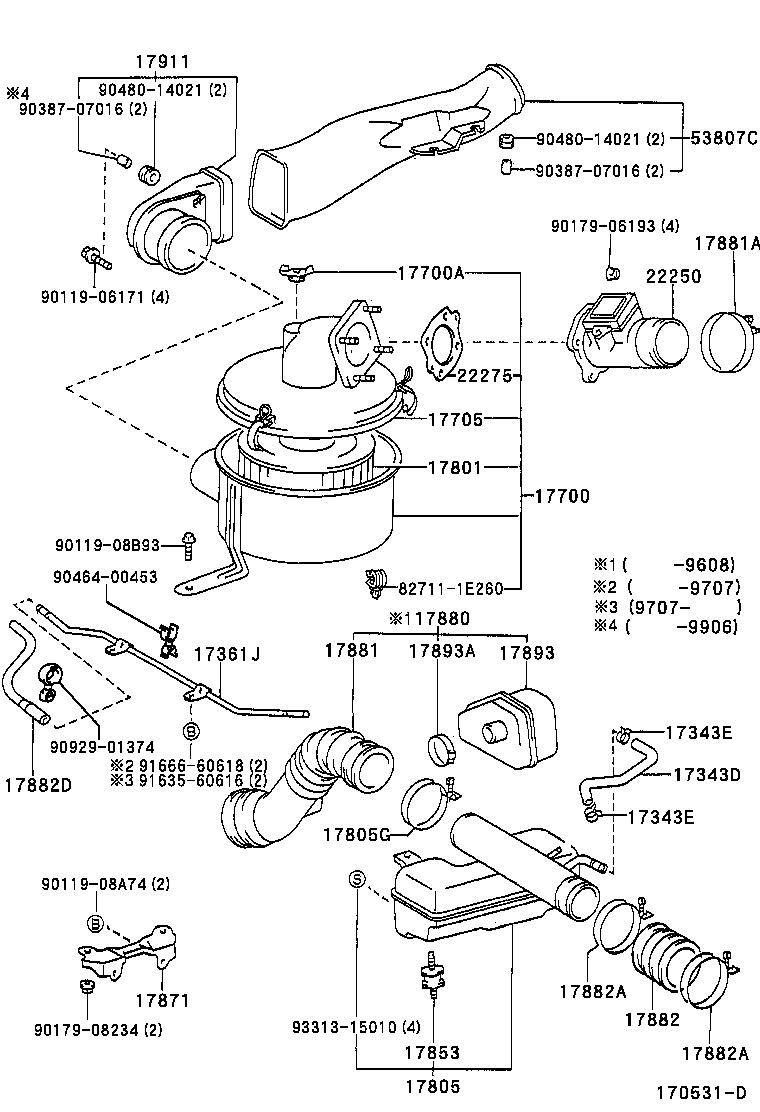

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-75010 |
3RZFE..RZN18# |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 96134-42100 |
3RZFE..RZN18# |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 96134-42100 |
3RZFE..RZN18# |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-75010 |
3RZFE..RZN18# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75120 |
3RZFE..RZN185 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3RZFE..RZN185 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75090 |
3RZFE..RZN185 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
3RZFE..RZN185 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-75100 |
3RZFE..RZN18# |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 96111-10830 |
3RZFE..RZN18# |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-75010 |
3RZFE..RZN18# |
2 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-75010 |
3RZFE..RZN185 |
1 | ||
| 17871-75011 |
3RZFE..RZN18# |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-0C010 |
3RZFE..RZN185 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0C010 |
3RZFE..RZN185 |
1 | ||
| 17881-75080 |
3RZFE..RZN185 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
3RZFE..RZN18# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0C010 |
3RZFE..RZN18# |
1 | ||
| 17882-0C010 |
3RZFE..RZN185 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3RZFE..RZN18# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3RZFE..RZN18# |
2 | ||
| 17882D - HOSE, COOL AIR INTAKE | ||||
| 17882-75060 |
3RZFE..RZN185 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-75040 |
3RZFE..RZN185 |
1 | ||
| 17893-0C010 |
3RZFE..RZN185 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 90080-46185 |
3RZFE..RZN185 |
1 | ||
| 96111-10480 |
3RZFE..RZN185 |
1 | ||
| 96111-10530 |
3RZFE..RZN185 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-35010 |
3RZFE..RZN18# |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-75010 |
3RZFE..RZN185 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-75010 |
3RZFE..RZN185 |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-35020 |
RZN18# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90119-06171 | ||||
| 90119-08A74 | ||||
| 90119-08B93 | ||||
| 90179-06193 | ||||
| 90179-08234 | ||||
| 90387-07016 | ||||
| 90464-00453 | ||||
| 90480-14021 | ||||
| 90929-01374 | ||||
| 91635-60616 | ||||
| 91666-60618 | ||||
| 93313-15010 | ||||
