KZN215L-GKPZT (2002)
Toyota 4runner
Production
Nov 2002
-
Aug 2005
Engine
1KZTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

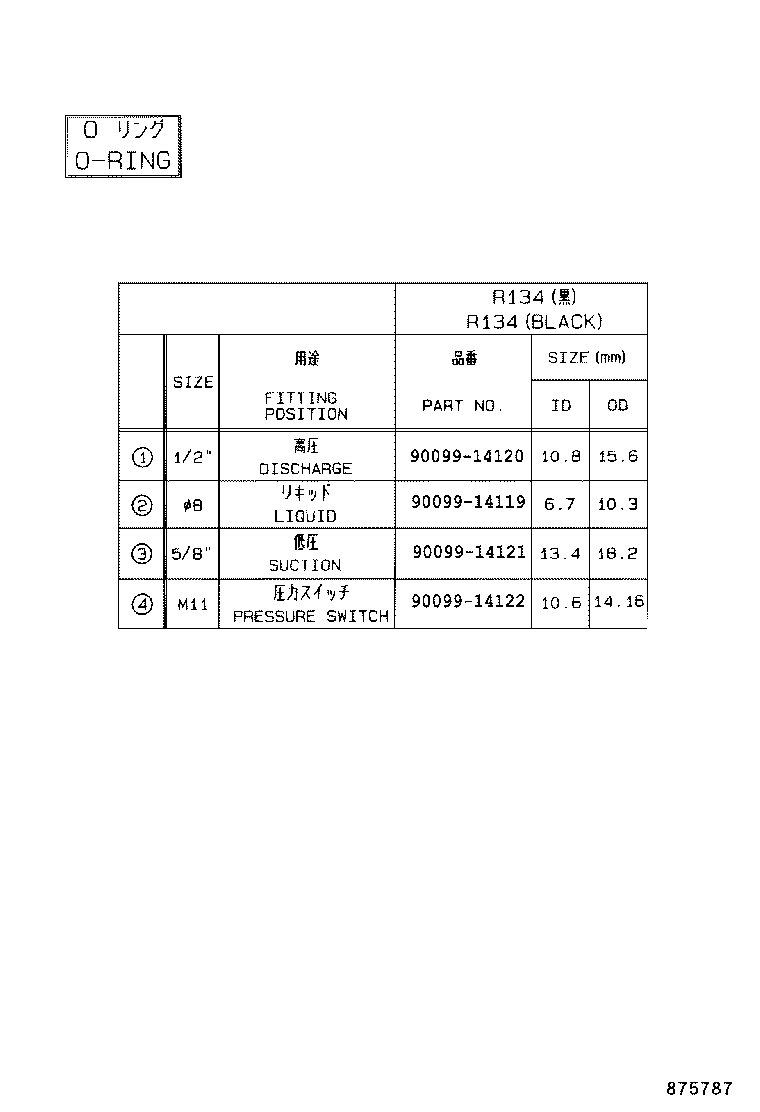

ILLUST NO. 2 OF 2(0211- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

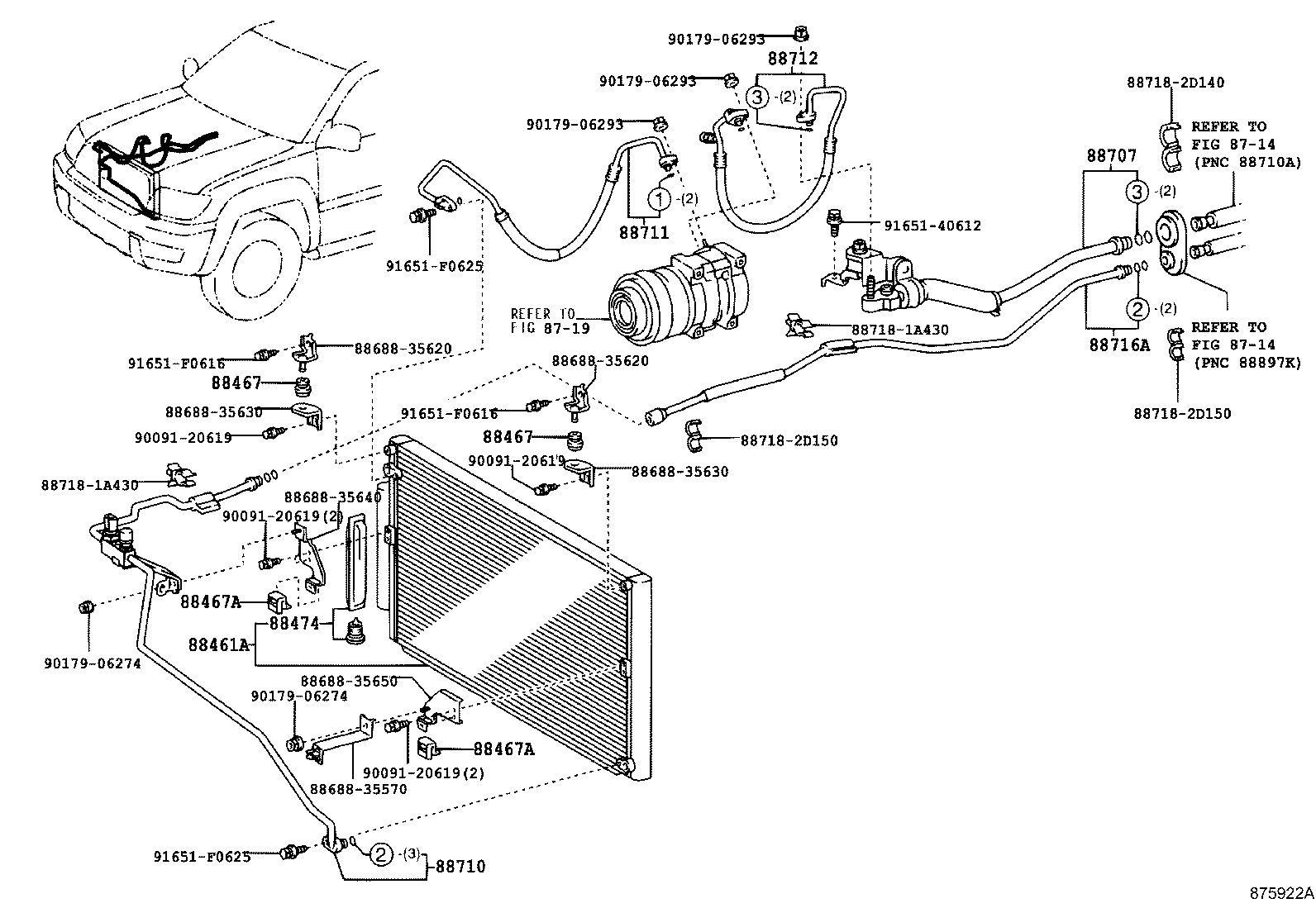

ILLUST NO. 1 OF 2(0211- )KZN215
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60100 |
KZN215 |
1 | ||
| 88461-35160 |
KZN215 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRN21#,KZN215 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRN21#,KZN215 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GRN21#,KZN215 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GRN21#,KZN215 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRN21#,KZN215 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-35040 |
KZN215 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35540 |
KZN215;GRN21#..5FC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35660 |
KZN215 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-6A190 |
KZN215 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35620 |
KZN215;GRN21#..5FC |
1 | ||
| Common parts | ||||
| 88688-35570 | ||||
| 88688-35620 | ||||
| 88688-35630 | ||||
| 88688-35640 | ||||
| 88688-35650 | ||||
| 88718-1A430 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 90091-20619 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91651-40612 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
