KZN215L-GKPZT (2002)

Toyota 4runner

Production Nov 2002 - Aug 2005
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

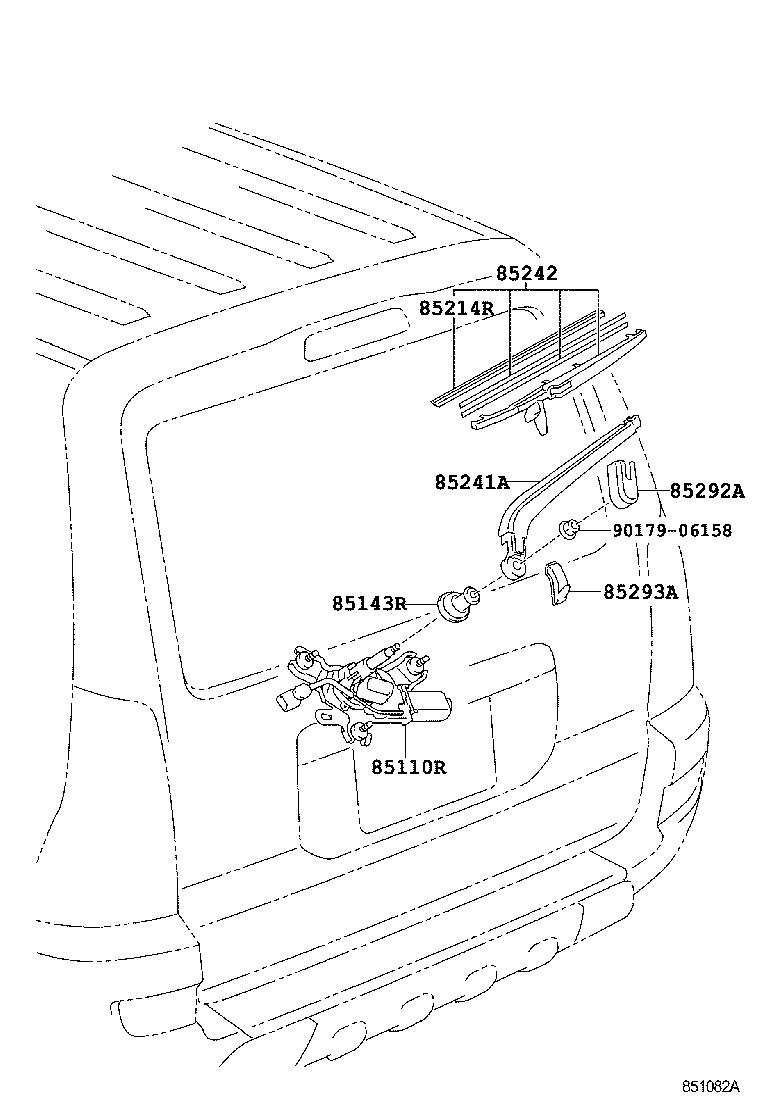

Click highlighted areas on diagram

diagram 85110R 85143R 85214R 85241A 85242 85292A 85293A 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-35080

KZN215;GRN21#..5FC

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-35070

KZN215;GRN21#..5FC

 1
85214R - RUBBER, REAR WIPER
85214-22440

KZN215;GRN21#..5FC

 1
85241A - ARM, REAR WIPER
85241-35030

GRN21#,KZN215

 1
85241-35031

KZN215;GRN21#..5FC

 1
85242 - BLADE, RR WIPER
85242-35020

KZN215;GRN21#..5FC

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-35010

KZN215;GRN21#..5FC

 1
85293A - STOPPER,REAR WIPER
85293-35020

KZN215;GRN21#..5FC

 1
Common parts
90179-06158
