KZN215L-GKPZT (2002)
Toyota 4runner

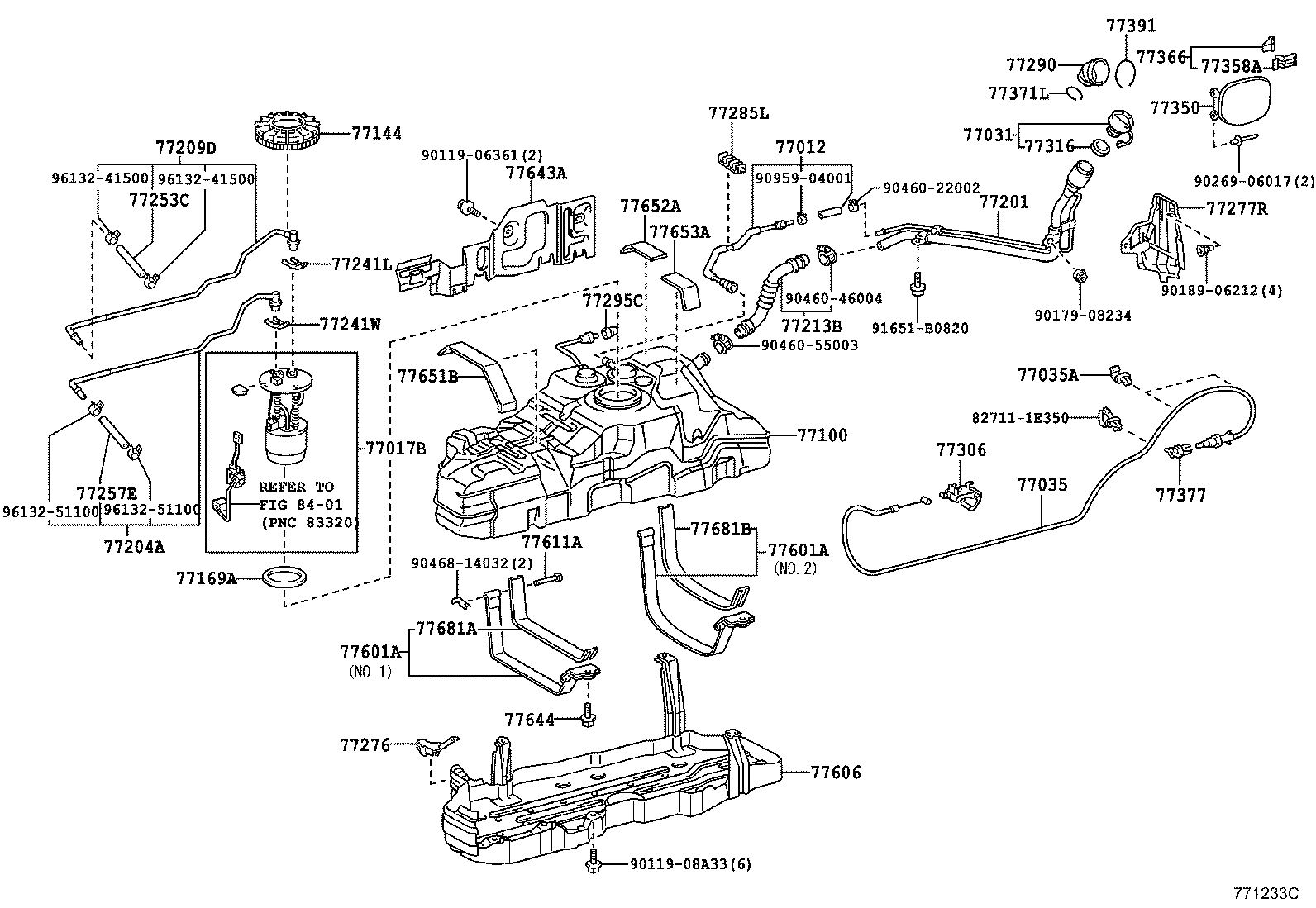

ILLUST NO. 1 OF 2(0211-0508)KZN215
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-35060 |
KZN215;GRN21#..5FC |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-35030 |
KZN215 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77300-35020 |
KZN215 |
1 | ||
| 77300-35050 |
KZN215 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-35120 |
KZN215;GRN21#..5FC |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
KZN215;GRN21#..5FC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D530 |
KZN215 |
1 | ||
| 77001-3D531 |
KZN215 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-35010 |
GRN21#,KZN215..4FC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-35010 |
GRN21#,KZN215..4FC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35740 |
KZN215 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-35050 |
KZN215 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-35430 |
KZN215 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35390 |
KZN215;GRN21#..5FC |
1 | ||
| 77241L - TUBE, FUEL TANK SUCTION | ||||
| 77241-35450 |
KZN215 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
KZN215 |
1 | ||
| 77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE) | ||||
| 95332-10018 |
KZN215 |
1 | ||
| 77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-06020 |
KZN215 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-35040 |
KZN215;GRN21#..5FC |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60080 |
KZN215;GRN21#..5FC |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35620 |
KZN215;GRN21#..5FC |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-35130 |
KZN215;GRN21#..5FC |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
KZN215 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28050C0 |
KZN215;GRN21#..5FC BLACK,TRIM1#,4# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-33042 |
KZN215;GRN21#..5FC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-35050 |
KZN215;GRN21#..5FC |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
KZN215;GRN21#..5FC |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
GRN21#,KZN215 |
1 | ||
| 77360-35040 |
GRN21#,KZN215 |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-35010 |
KZN215;GRN21#..5FC |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
KZN215;GRN21#..5FC |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-35020 |
KZN215;GRN21#..5FC |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77602-35030 |
KZN215;GRN21#..5FC NO.2 |
1 | ||
| 77601-35090 |
KZN215;GRN21#..5FC NO.1 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77602-35030 |
KZN215;GRN21#..5FC NO.2 |
1 | ||
| 77601-35090 |
KZN215;GRN21#..5FC NO.1 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-35060 |
KZN215;GRN21#..5FC |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-35040 |
KZN215;GRN21#..5FC |
2 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-35020 |
GRN21#,KZN215..4FC |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KZN215;GRN21#..5FC |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-35070 |
GRN21#,KZN215..4FC |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-35060 |
GRN21#,KZN215..4FC |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-35050 |
GRN21#,KZN215..4FC |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-35030 |
KZN215;GRN21#..5FC |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77681-35040 |
KZN215;GRN21#..5FC |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 90119-06361 | ||||
| 90119-08A33 | ||||
| 90179-08234 | ||||
| 90189-06212 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46004 | ||||
| 90460-55003 | ||||
| 90468-14032 | ||||
| 90959-04001 | ||||
| 91651-B0820 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

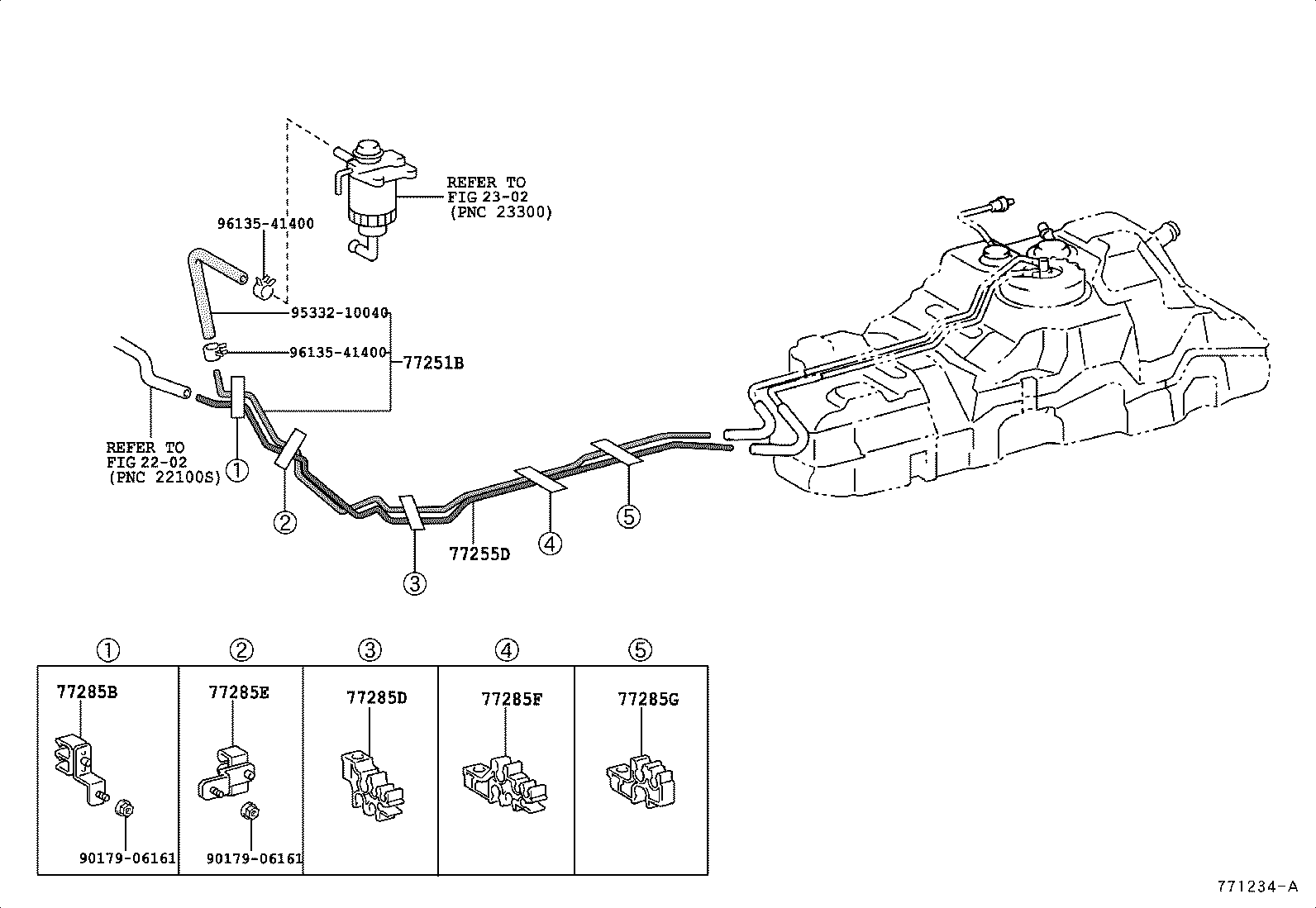

ILLUST NO. 2 OF 2(0211-0508)KZN215
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-35310 |
KZN215 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-3D090 |
KZN215 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35650 |
KZN215 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35670 |
KZN215;GRN21#..5FC |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35660 |
KZN215 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35680 |
KZN215;GRN21#..5FC |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35690 |
KZN215;GRN21#..5FC |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 95332-10040 | ||||
| 96135-41400 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
