KZN215L-GKPZT (2002)

Toyota 4runner

Production Nov 2002 - Aug 2005
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

Click highlighted areas on diagram

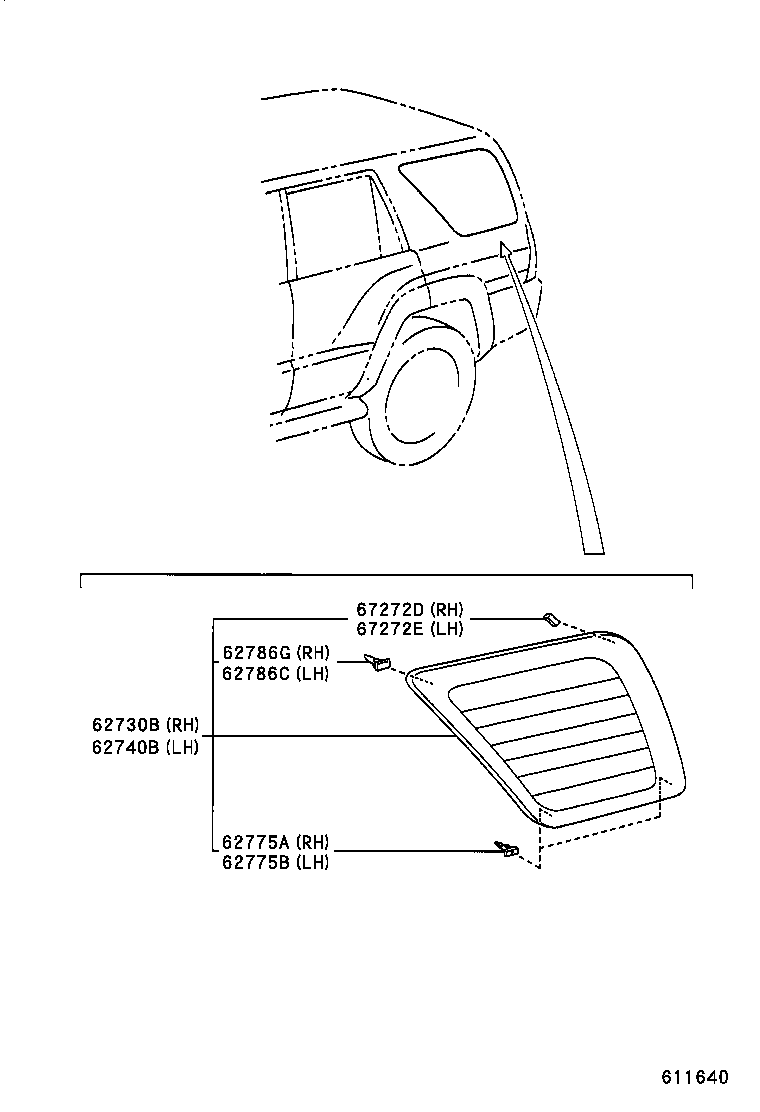

diagram 62730B 62740B 62775A 62775B 62786C 62786G 67272D 67272E
Part # Description Qty Price
62730B - WINDOW ASSY, QUARTER, REAR RH
62730-35120

KZN215;GRN21#..5FC

*TT,T=3.1,PRIVACY,REAR QUARTER GLASS-PRIVACY

 1
62730-35100

KZN215;GRN21#..5FC

*TT,T=3.1,GREEN

 1
62740B - WINDOW ASSY, QUARTER, REAR LH
62740-35100

KZN215;GRN21#..5FC

*TT,T=3.1,PRIVACY,REAR QUARTER GLASS-PRIVACY

 1
62740-35080

KZN215;GRN21#..5FC

*TT,T=3.1,GREEN

 1
62775A - CLIP, QUARTER WINDOW
62775-35020

KZN215;GRN21#..5FC

 2
62775B - CLIP, QUARTER WINDOW, LH
62775-35020

KZN215;GRN21#..5FC

 2
62786C - SPACER, QUARTER WINDOW GLASS LH
62786-35010

KZN215;GRN21#..5FC

 1
62786G - SPACER, QUARTER WINDOW GLASS, RH
62786-35010

KZN215;GRN21#..5FC

 1
67272D - CUSHION, BACK DOOR STOPPER
67272-20010

KZN215;GRN21#..5FC

 1
67272E - CUSHION, BACK DOOR STOPPER, LH
67272-20010

KZN215;GRN21#..5FC

 1
