KZN215L-GKPZT (2002)

Toyota 4runner

Production Nov 2002 - Aug 2005
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

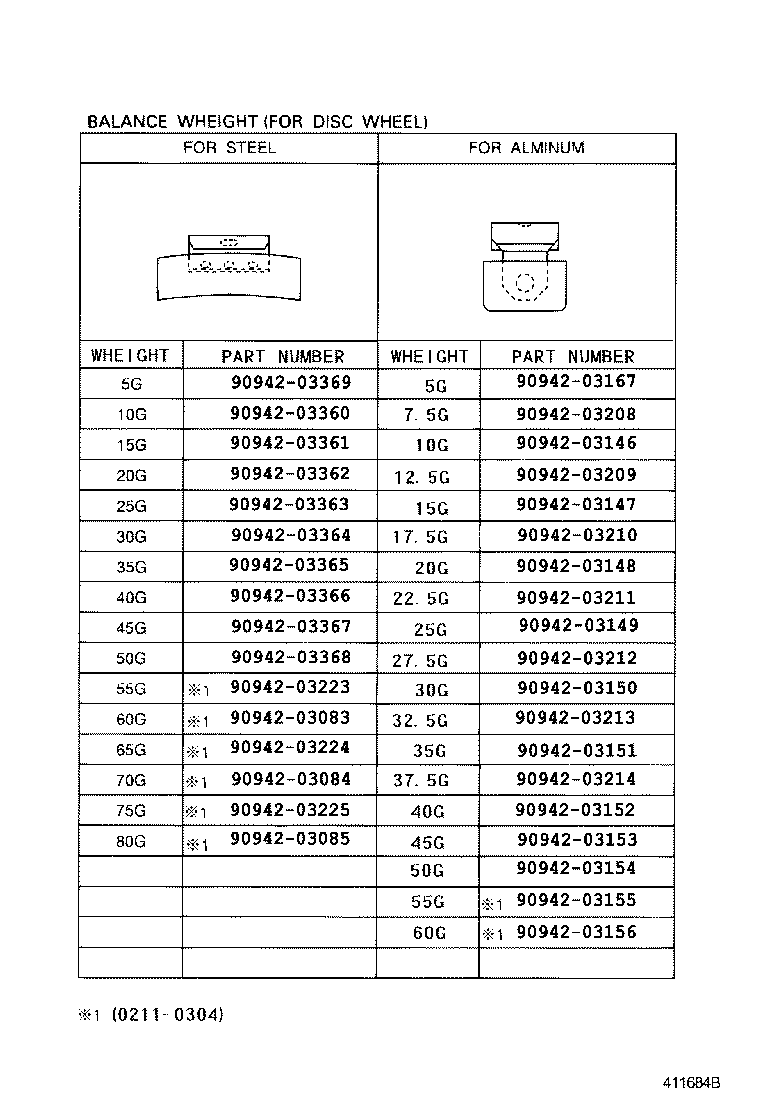

ILLUST NO. 3 OF 3(0211- )

Click highlighted areas on diagram

diagram 9094203083 9094203084 9094203085 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203223 9094203224 9094203225 9094203360 9094203361 9094203362 9094203363 9094203364 9094203365 9094203366 9094203367 9094203368 9094203369
Part # Description Qty Price
Common parts
90942-03083
90942-03084
90942-03085
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03223
90942-03224
90942-03225
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

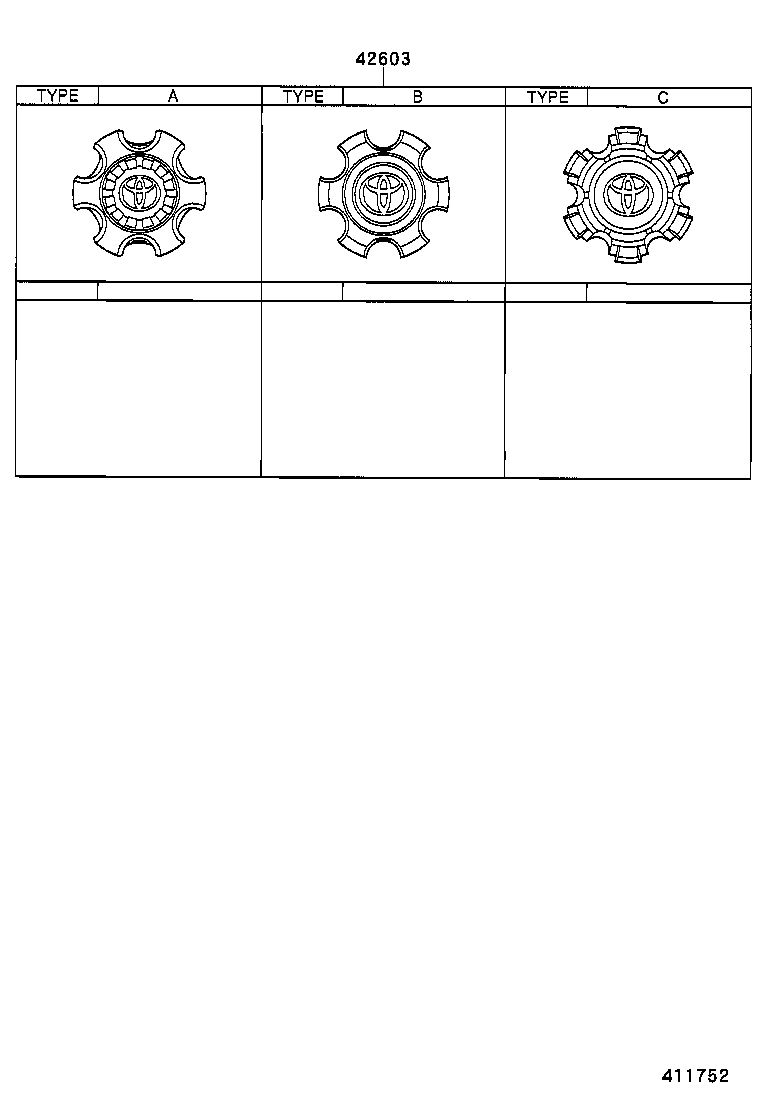

ILLUST NO. 2 OF 3(0211- )

Click highlighted areas on diagram

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35810

GRN21#,KZN215

*ALU,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST.

 4
42603-35800

GRN215,KZN215..LIMD

*ALU,TYPE A:REFER ILLUST.

 4

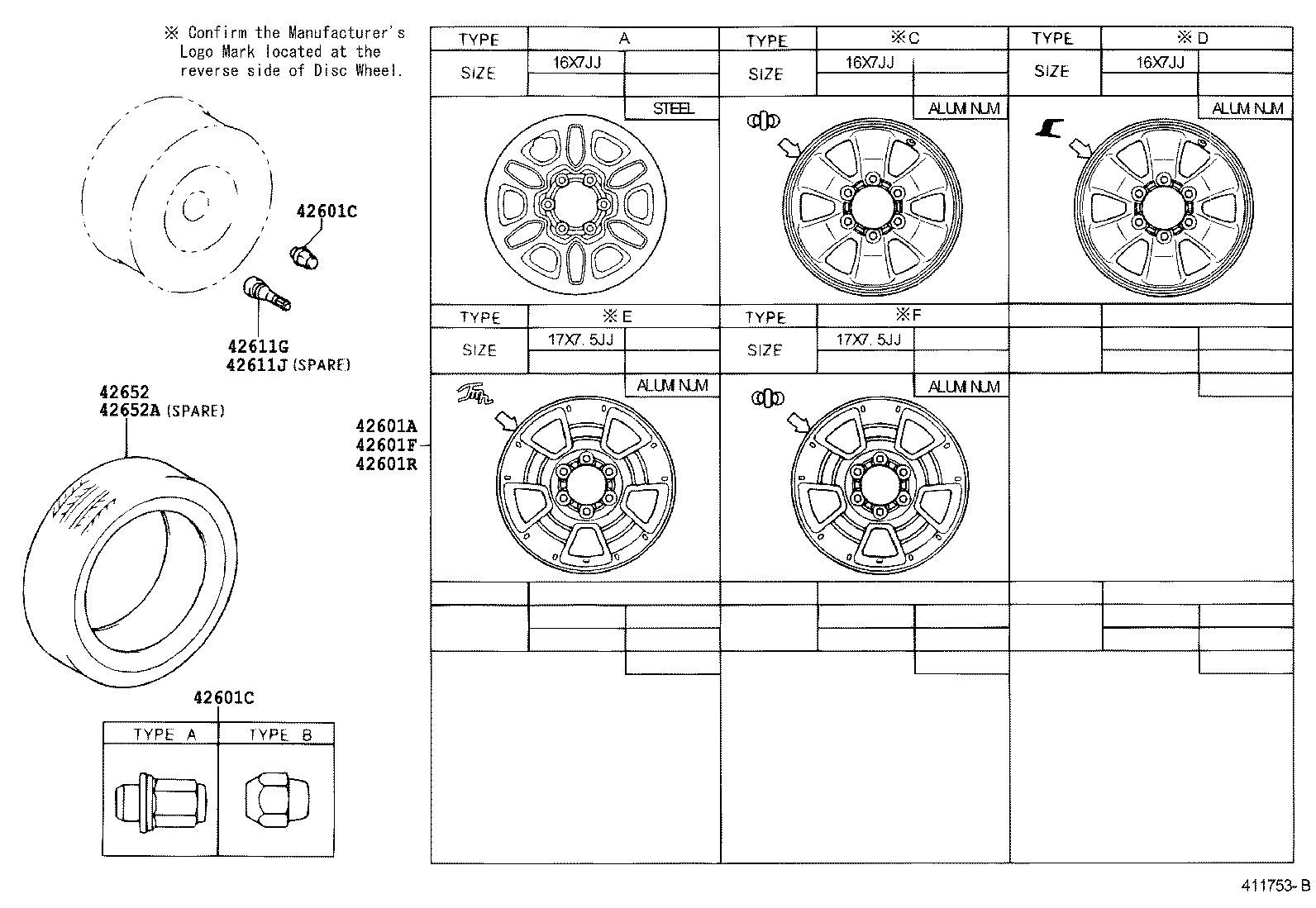

ILLUST NO. 1 OF 3(0211-0308)

Click highlighted areas on diagram

diagram 42601A 42601C 42601C 42601F 42601R 42611G 42611J 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-35280

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 1
42611-35250

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 1
42611-35260

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 1
42611-35261

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 1
42611-35251

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 1
42611-35281

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 1
42611-35271

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 1
42611-35270

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01058

GRN215,KZN215..LIMD

TYPE A:REFER ILLUST.

 24
42601C - NUT, HUB (FOR AXLE)
90942-01058

GRN215,KZN215..LIMD

TYPE A:REFER ILLUST.

 24
42601F - WHEEL, DISC (FOR FRONT)
42611-35250

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35260

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35280

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35270

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35271

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35281

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35251

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35261

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35281

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35271

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42611-35280

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35281

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35260

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35271

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35261

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35250

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35270

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35271

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35251

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35281

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

GRN21#,KZN215

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

GRN21#,KZN215

 1
42652 - TIRE
42652-3D180

GRN21#,KZN215

P265/70R16,*D/L

 4
42652-60681

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 4
42652-60680

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 4
42652A - TIRE (FOR SPARE)
42652-60681

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 1
42652-60680

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 1
42652-3D180

GRN21#,KZN215

P265/70R16,*D/L

 1

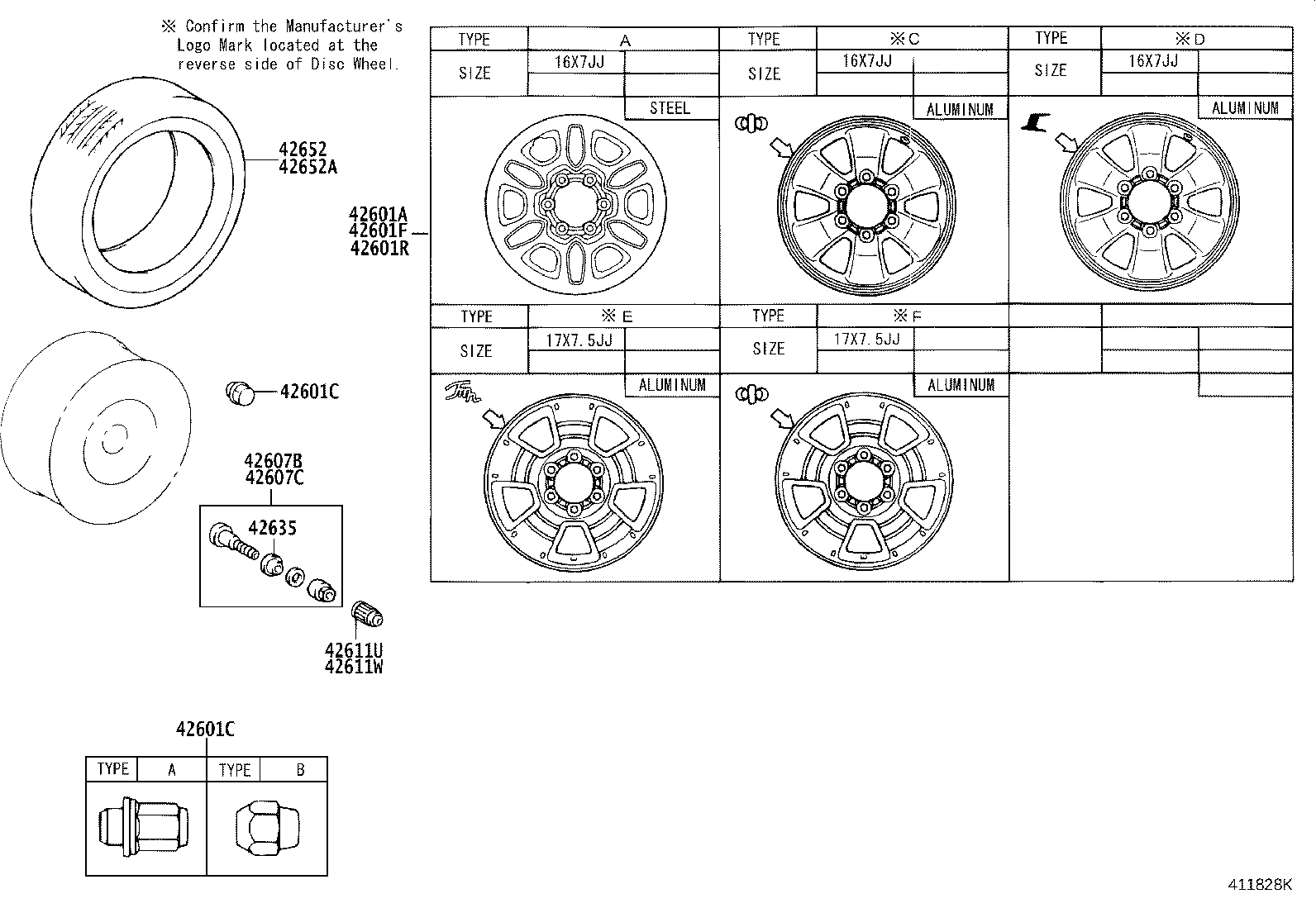

ILLUST NO. 1 OF 3(0308- )

Click highlighted areas on diagram

diagram 42601A 42601C 42601C 42601F 42601R 42607B 42607C 42611U 42611W 42635 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-35280

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 1
42611-35250

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 1
42611-35260

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 1
42611-35261

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 1
42611-35251

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 1
42611-35281

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 1
42611-35271

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 1
42611-35270

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01058

GRN215,KZN215..LIMD

TYPE A:REFER ILLUST.

 24
42601C - NUT, HUB (FOR AXLE)
90942-01058

GRN215,KZN215..LIMD

TYPE A:REFER ILLUST.

 24
42601F - WHEEL, DISC (FOR FRONT)
42611-35250

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35260

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35280

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35270

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35271

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35281

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35251

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35261

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35281

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35271

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42611-35280

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35281

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42611-35260

GRN215,KZN215..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35271

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35261

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE D:REFER ILLUST.

 2
42611-35250

GRN215,KZN215..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35270

GRN21#,KZN215

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35271

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST.

 2
42611-35251

KZN215..LIMD;GRN215..5FC..LIMD

16X7JJ, #,TYPE C:REFER ILLUST.

 2
42611-35281

KZN215;GRN21#..5FC

17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST.

 2
42607B - VALVE SUB-ASSY, TIRE PRESSURE BALANCER
42607-35020

GRN21#,KZN215

 4
42607-35020

GRN21#,KZN215

TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 4
42607C - VALVE SUB-ASSY, TIRE PRESSURE BALANCER (FOR SPARE)
42607-35020

GRN21#,KZN215

 1
42611U - CAP, TIRE VALVE
90942-05035

GRN21#,KZN215

TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 4
90942-05035

GRN21#,KZN215

 4
42611W - CAP, TIRE VALVE (FOR SPARE)
90942-05035

GRN21#,KZN215

 1
42652 - TIRE
42652-3D180

GRN21#,KZN215

P265/70R16,*D/L

 4
42652-60681

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 4
42652-60680

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 4
42652A - TIRE (FOR SPARE)
42652-60681

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 1
42652-60680

GRN21#,KZN215

265/65R17 112S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM

 1
42652-3D180

GRN21#,KZN215

P265/70R16,*D/L

 1
