KZN215L-GKPZT (2002)

Toyota 4runner

Production Nov 2002 - Aug 2005
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)1KZTE

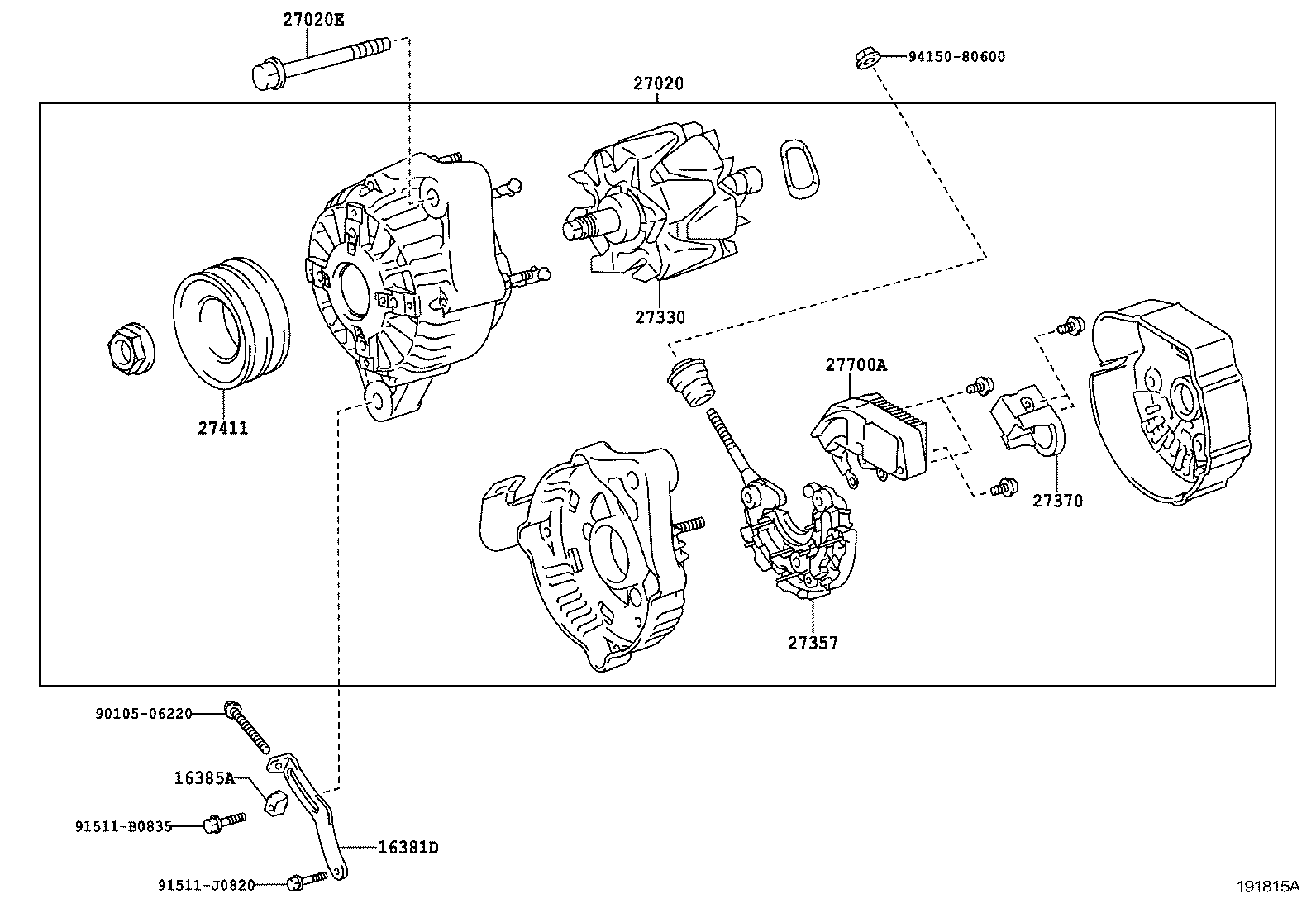

Click highlighted areas on diagram

12V 70A

diagram 16381D 16385A 27020 27020E 27330 27357 27370 27411 27700A 9010506220 91511B0835 91511J0820 9415080600
Part # Description Qty Price
16381D - BAR, FAN BELT ADJUSTING
16381-67020

1KZTE..KZN215

 1
16385A - SLIDER, FAN BELT ADJUSTING
16385-67010

1KZTE..KZN215

 1
27020 - ALTERNATOR ASSY
27060-67110

1KZTE..KZN215

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10092

1KZTE..KZN215

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100

1KZTE..KZN215

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-67100

1KZTE..KZN215

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320

1KZTE..KZN215

 1
27411 - PULLEY, ALTERNATOR
27411-67020

1KZTE..KZN215

 1
27700A - REGULATOR ASSY, GENERATOR
27700-50030

1KZTE..KZN215

 1
Common parts
90105-06220
91511-B0835
91511-J0820
94150-80600
