KZN215L-GKPGT (2002)

Toyota 4runner

Production Nov 2002 - Aug 2005
Engine 1KZTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )1KZTE

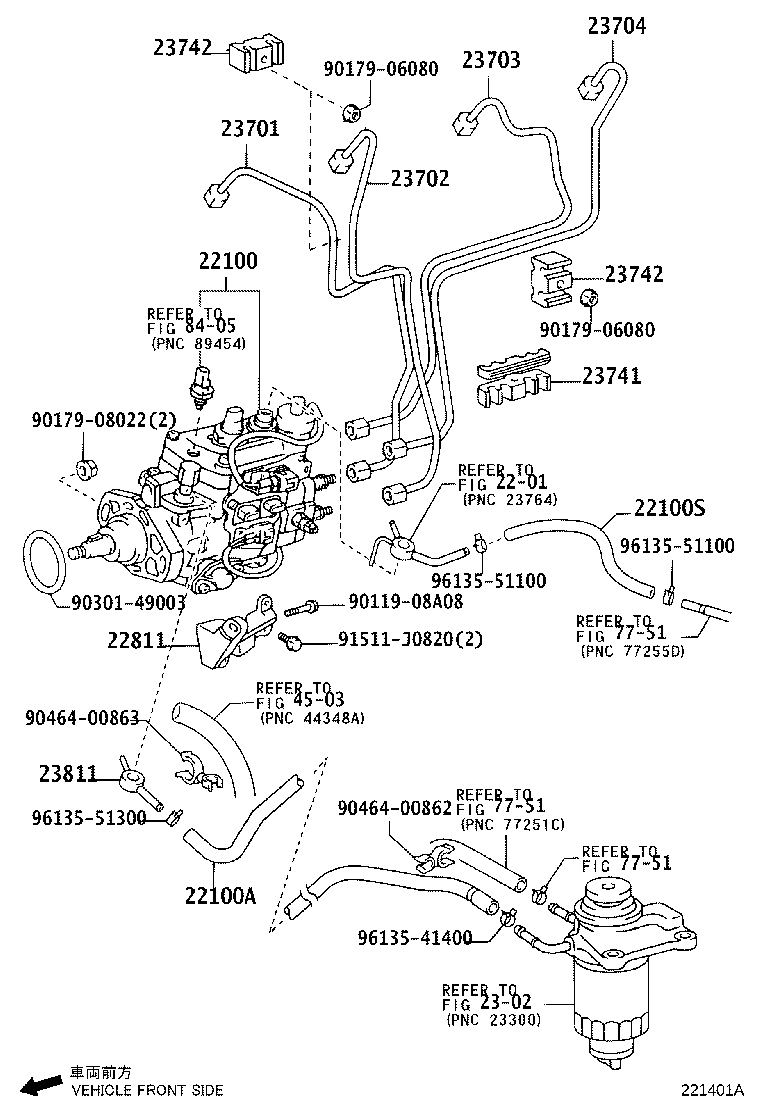

Click highlighted areas on diagram

diagram 2201 22100 22100A 22100S 22811 2302 23701 23702 23703 23704 23741 23742 23742 23811 4503 7751 7751 7751 8405 9011908A08 9017906080 9017906080 9017908022 9030149003 9046400862 9046400863 91511J0820 9613541400 9613551100 9613551100 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-67120

1KZTE..KZN215

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-67180

1KZTE..KZN215

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-67120

1KZTE..KZN215

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-67010

1KZTE..KZN215

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-67021

1KZTE..KZN215

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-67021

1KZTE..KZN215

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-67031

1KZTE..KZN215

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-67020

1KZTE..KZN215

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64030

1KZTE..KZN215

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZTE..KZN215

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZTE..KZN215

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-67020

1KZTE..KZN215

 1
Common parts
90119-08A08
90179-06080
90179-08022
90301-49003
90464-00862
90464-00863
91511-J0820
96135-41400
96135-51100
96135-51300
Linked diagrams
2201
2302
4503
7751
8405
