KZN185L-GKMSX (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

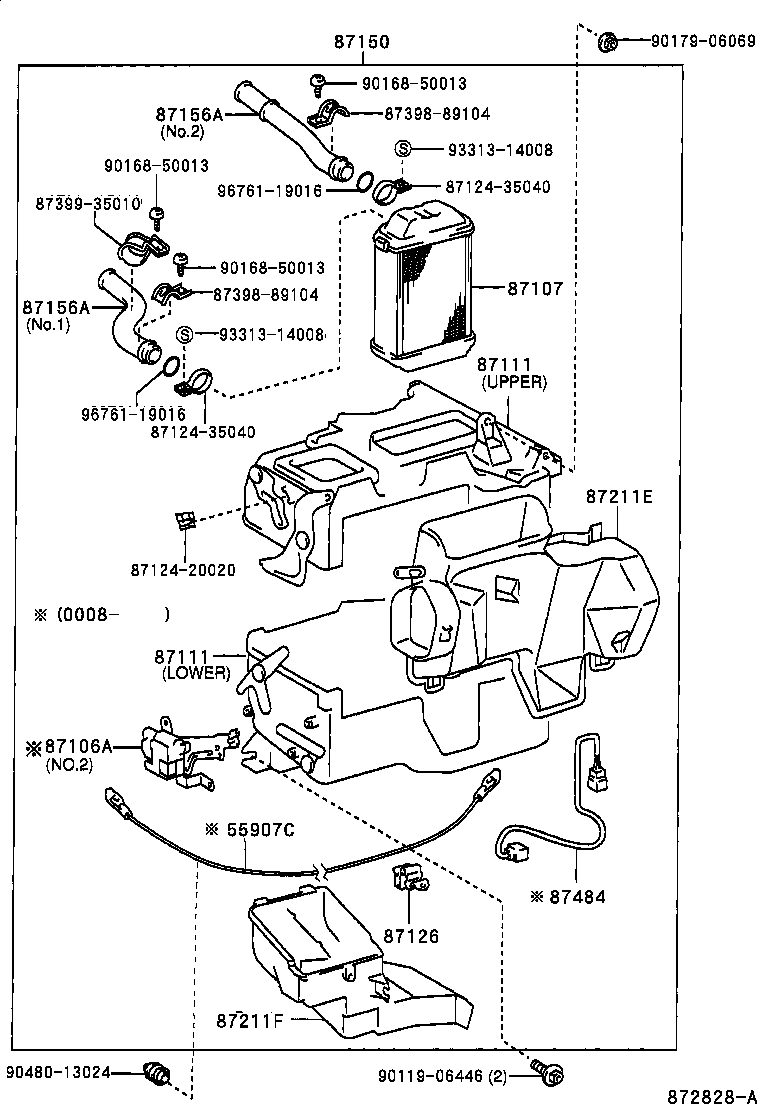

HEATER RADIATOR

diagram 55907C 87106A 87107 87111 87111 8712420020 8712435040 8712435040 87126 87150 87156A 87156A 87211E 87211F 8739889104 8739889104 8739935010 87484 9011906446 9016850013 9016850013 9016850013 9017906069 9048013024 9331314008 9331314008 9676119016 9676119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-35060

KZN185,RZN18#,VZN18#

 1
87111 - CASE, HEATER
87111-35300

KZN185,RZN185,VZN185

UPPER

 1
87111-35321

KZN185,RZN185,VZN185

LOWER

 1
87111-89101

KZN185,RZN185,VZN185

LOWER

 1
87111-35010

KZN185,RZN185,VZN185

UPPER

 1
87111-35310

KZN185,RZN18#,VZN18#

UPPER

 1
87111 - CASE, HEATER
87111-35300

KZN185,RZN185,VZN185

UPPER

 1
87111-35321

KZN185,RZN185,VZN185

LOWER

 1
87111-89101

KZN185,RZN185,VZN185

LOWER

 1
87111-35010

KZN185,RZN185,VZN185

UPPER

 1
87111-35310

KZN185,RZN18#,VZN18#

UPPER

 1
87126 - CLAMP, HEATER CONTROL
87126-89101

KZN185,RZN18#,VZN18#

 1
87150 - RADIATOR ASSY, HEATER
87150-35210

KZN185,RZN185,VZN185

 1
87150-35132

KZN185,RZN185,VZN185

 1
87150-35130

KZN185,RZN185,VZN185

 1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35040

KZN185,RZN18#,VZN18#

NO.2

 1
87156-35030

KZN185,RZN18#,VZN18#

NO.1

 1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35040

KZN185,RZN18#,VZN18#

NO.2

 1
87156-35030

KZN185,RZN18#,VZN18#

NO.1

 1
87211E - DUCT, AIR
87211-35120

KZN185,RZN185,VZN185

 1
87211-35270

KZN185,RZN185,VZN185

 1
87211F - DUCT, AIR
87211-35140

KZN185,RZN185,VZN185

 1
87211-35250

KZN185,RZN185,VZN185

 1
Common parts
87124-20020
87124-35040
87398-89104
87399-35010
90119-06446
90168-50013
90179-06069
90480-13024
93313-14008
96761-19016

ILLUST NO. 1 OF 2(9511-0008)

Click highlighted areas on diagram

HEATER BLOWER

diagram 87103 8712420020 87130 9011906446 9017906069
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-35021

KZN185,RZN185,VZN185

 1
87103-35020

KZN185,RZN185,VZN185

 1
87103-35022

KZN185,RZN18#,VZN18#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-35070

KZN185,RZN185,VZN185

 1
87130-35110

KZN185,RZN185,VZN185

 1
Common parts
87124-20020
90119-06446
90179-06069
