KZN185L-GKMSX (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

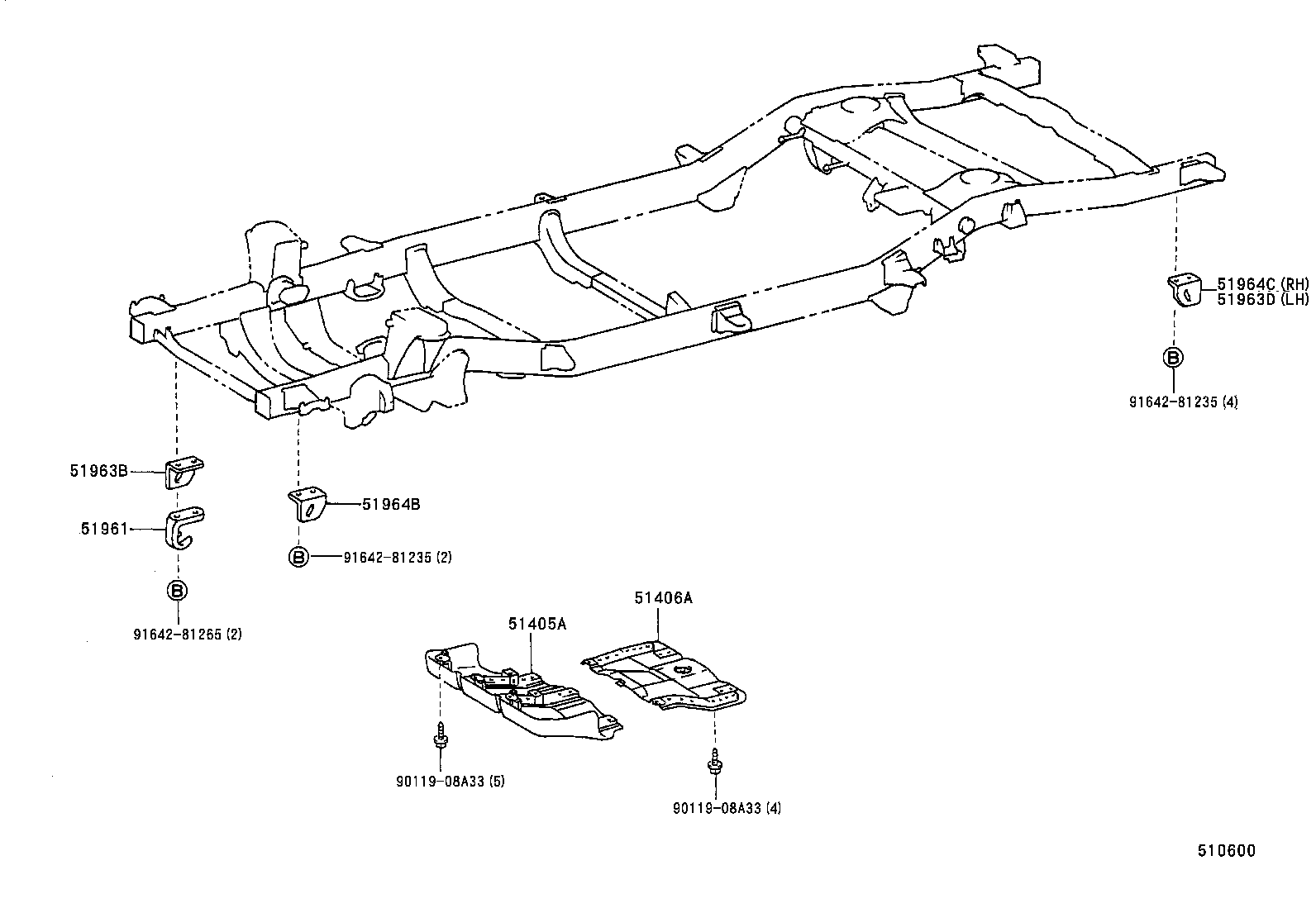

Click highlighted areas on diagram

diagram 51405A 51406A 51961 51963B 51963D 51964B 51964C 9011908A33 9011908A33 9164281235 9164281235 9164281265
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-35070

KZN185,RZN185,VZN185

 1
51405-35071

KZN185,RZN18#,VZN18#

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-35010

KZN185,RZN18#,VZN18#

 1
51961 - HOOK, NO.1
51961-35051

KZN185,RZN18#,VZN18#

 1
51961-35050

KZN185,RZN185,VZN185

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-35070

KZN185,RZN18#,VZN18#

 1
51963D - HOOK, TRANSPORT, REAR LH
51964-35060

KZN185,RZN18#,VZN18#

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-35050

KZN185,RZN18#,VZN18#

 1
51964C - HOOK, TRANSPORT, REAR LH
51963-35090

KZN185,RZN18#,VZN18#

 1
Common parts
90119-08A33
91642-81235
91642-81265
