KZN185L-GKMSX (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )KZN185,RZN18#

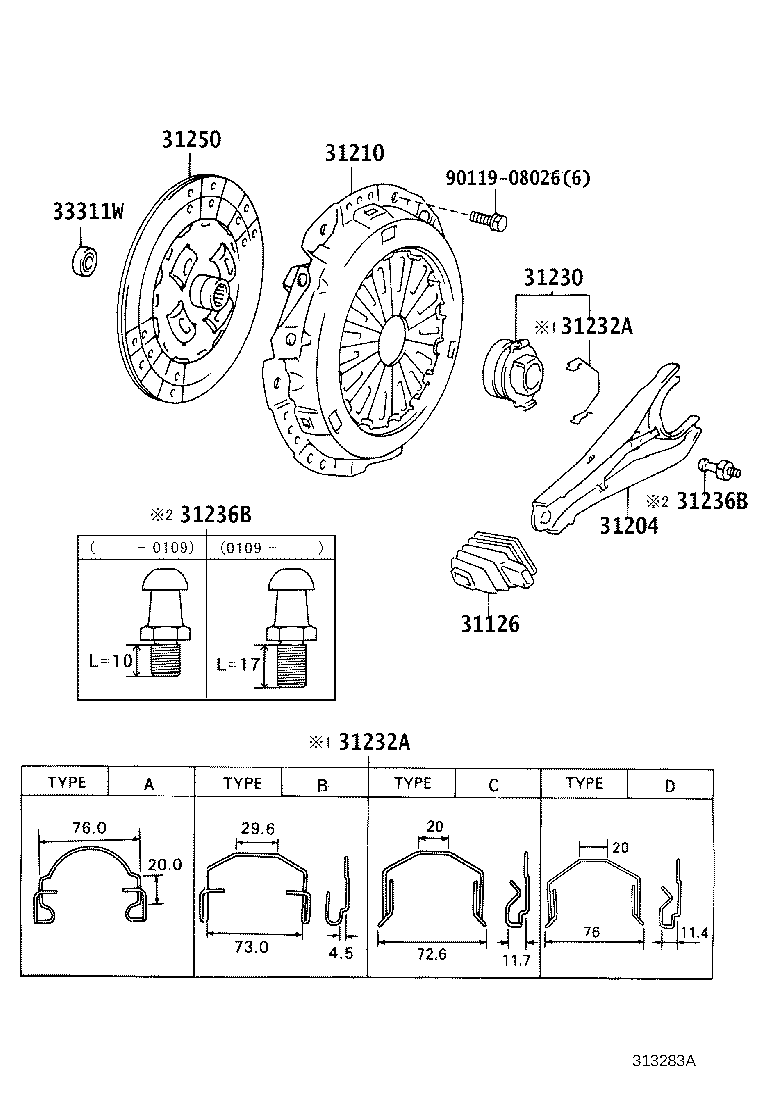

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60080

KZN185

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-60090

KZN185

 1
31210 - COVER ASSY, CLUTCH
31210-60170

KZN185

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-60170

KZN185

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

KZN185

TYPE A:REFER TO ILLUSTRATION

 1
31232-60030

KZN185

TYPE B:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

KZN185

TYPE A:REFER TO ILLUSTRATION

 1
31232-60030

KZN185

TYPE B:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

KZN185

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

KZN185

 1
31250 - DISC ASSY, CLUTCH
31250-35341

KZN185

 1
31250-35340

KZN185

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KZN185

 1
Common parts
90119-08026
