KZN185L-GKMSX (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 1KZT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )

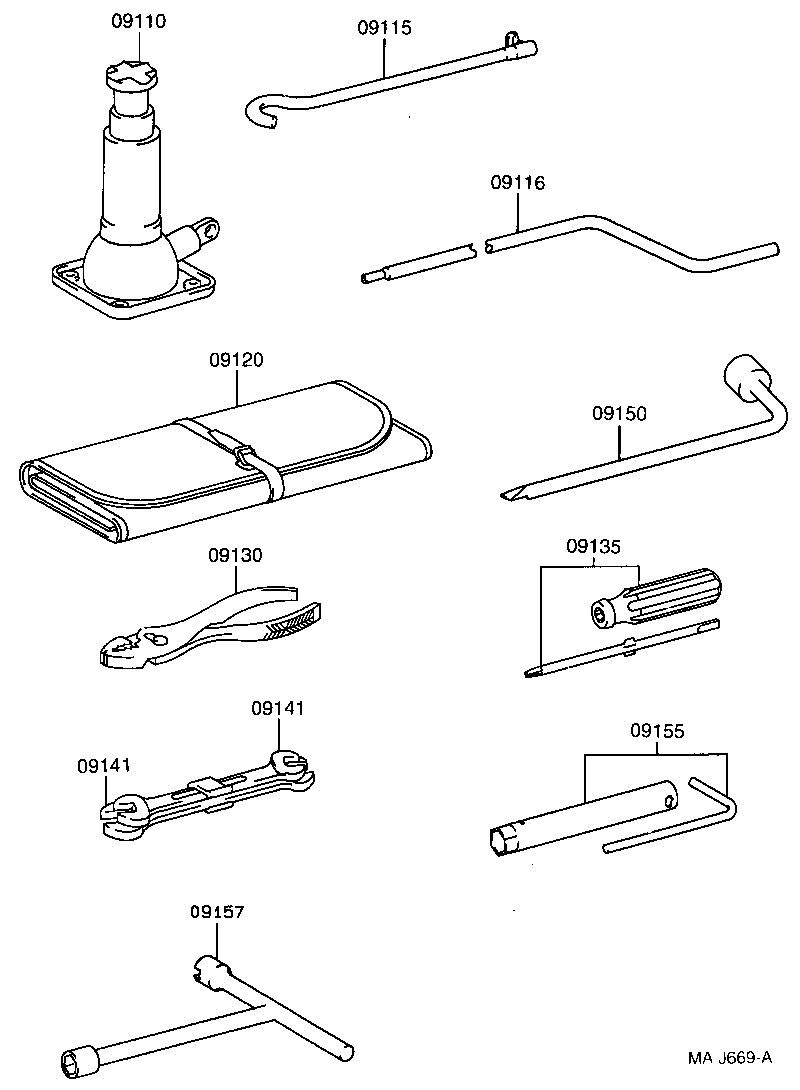

Click highlighted areas on diagram

diagram 09110 09115 09116 09120 09130 09135 09141 09141 09150 09155 09157
Part # Description Qty Price
09110 - JACK ASSY
09111-35140

KZN185,RZN185,VZN185

 1
09111-35151

KZN185,RZN185,VZN185

 1
09110-35190

KZN185,RZN185,VZN185

 1
09111-60075

KZN185,RZN18#,VZN18#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-35100

KZN185,RZN18#,VZN18#

 1
09116 - LEVER, JACK HANDLE
09116-35070

KZN185,RZN18#,VZN18#

 1
09120 - BAG, TOOL
09120-26021

KZN185,RZN18#,VZN18#

 1
09130 - PLIERS
99913-11500

KZN185,RZN18#,VZN18#

 1
09135 - DRIVER, SCREW
99915-10700

KZN185,RZN18#,VZN18#

 1
09141 - SPANNER
99914-10810

KZN185,RZN18#,VZN18#

8 X 10

 1
99914-11214

KZN185,RZN18#,VZN18#

12 X 14

 1
09141 - SPANNER
99914-10810

KZN185,RZN18#,VZN18#

8 X 10

 1
99914-11214

KZN185,RZN18#,VZN18#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-35070

KZN185,RZN18#,VZN18#

 1
09157 - WRENCH, FUEL FILTER
09157-67010

KZN185

 1
