KZN185L-GKMST (2000)
Toyota 4runner

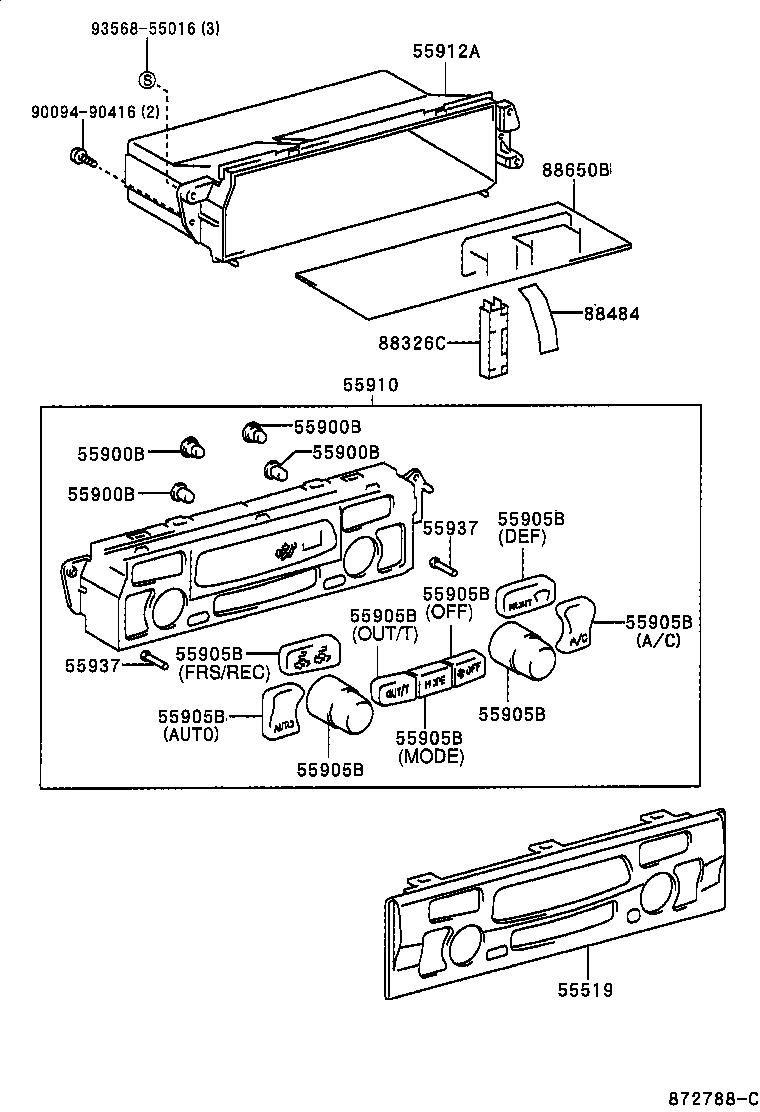

ILLUST NO. 1 OF 3(0008- )
FRONT HEATER CONTROL--AUTO A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-35050 |
KZN185,RZN185,VZN185 W(AIR CONDITIONER) |
1 | ||
| 55519-35070 |
KZN185,RZN185,VZN185 |
1 | ||
| 55519-35330 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 55519-35360 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35040 |
KZN185,VZN185 14V 80MA |
2 | ||
| 81850-35050 |
KZN185,VZN185 14V 110MA |
2 | ||
| 90010-05126 |
KZN185,RZN18#,VZN18# 14V 1.12W |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35040 |
KZN185,VZN185 14V 80MA |
2 | ||
| 81850-35050 |
KZN185,VZN185 14V 110MA |
2 | ||
| 90010-05126 |
KZN185,RZN18#,VZN18# 14V 1.12W |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35040 |
KZN185,VZN185 14V 80MA |
2 | ||
| 81850-35050 |
KZN185,VZN185 14V 110MA |
2 | ||
| 90010-05126 |
KZN185,RZN18#,VZN18# 14V 1.12W |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35040 |
KZN185,VZN185 14V 80MA |
2 | ||
| 81850-35050 |
KZN185,VZN185 14V 110MA |
2 | ||
| 90010-05126 |
KZN185,RZN18#,VZN18# 14V 1.12W |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-35090 |
KZN185,RZN185,VZN185 |
1 | ||
| 55910-35250 |
KZN185,RZN18#,VZN18# |
1 | ||
| 55910-35231 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-35030 |
KZN185,RZN18#,VZN18# |
1 | ||
| 55912-35020 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-35010 |
KZN185,VZN185 |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-35010 |
KZN185,VZN185 |
2 | ||
| 88326C - PLATE, COVER | ||||
| 88326-35020 |
KZN185,VZN185 |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-35020 |
KZN185,VZN185 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-35120 |
KZN185,RZN18#,VZN18# |
1 | ||
| 88650-35130 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 88650-35121 |
KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 93568-55016 | ||||

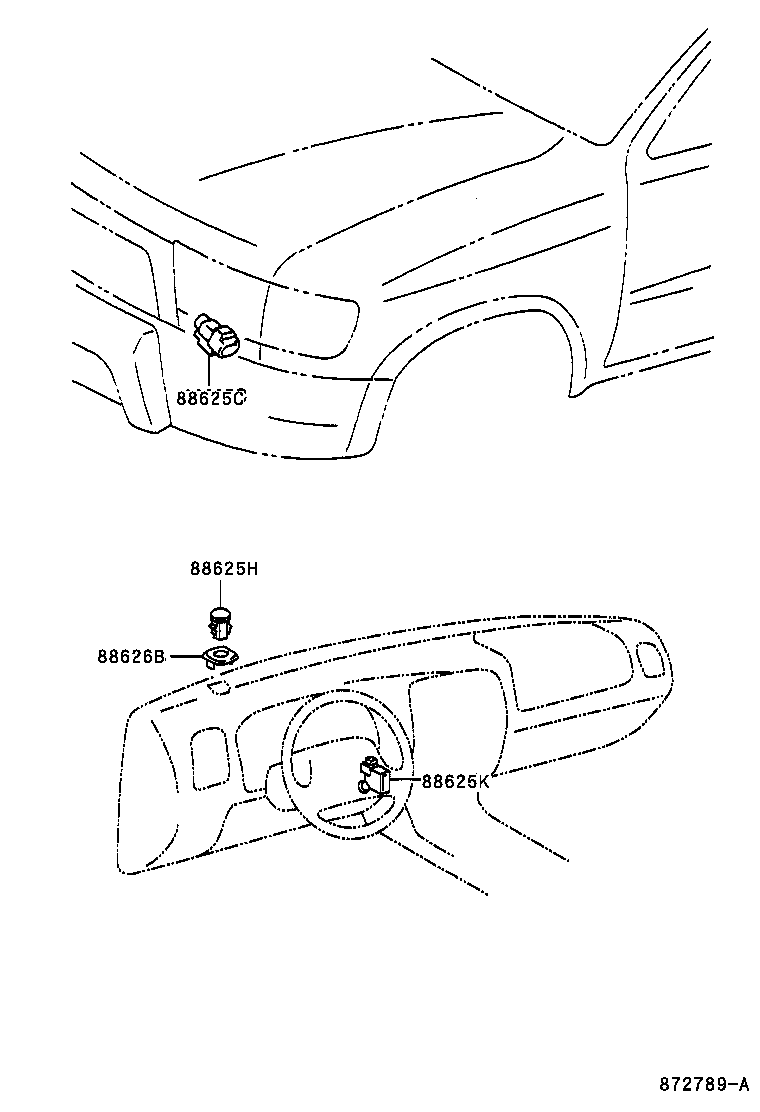

ILLUST NO. 3 OF 3(0008- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32170 |
KZN185,VZN185 |
1 | ||
| 88625-32171 |
KZN185,VZN185 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
KZN185,VZN185 |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88790-35040 |
KZN185,VZN185 |
1 | ||
| 88626B - HOLDER, THERMISTOR | ||||
| 88626-35020B1 |
KZN185,VZN185 DK.CHARCOAL,TRIM1# |
1 | ||
| 88626-35020E0 |
KZN185,VZN185 OAK,TRIM4# |
1 | ||
ILLUST NO. 1 OF 3(0008- )
FRONT HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-35050 |
KZN185,RZN185,VZN185 W(AIR CONDITIONER) |
1 | ||
| 55519-35070 |
KZN185,RZN185,VZN185 |
1 | ||
| 55519-35330 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 55519-35360 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 81850-35040 |
KZN185,VZN185 14V 80MA |
2 | ||
| 81850-35050 |
KZN185,VZN185 14V 110MA |
2 | ||
| 90010-05126 |
KZN185,RZN18#,VZN18# 14V 1.12W |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
KZN185,RZN185,VZN185 |
4 | ||
| 55905-35330 |
KZN185,RZN18#,VZN18# |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
KZN185,RZN185,VZN185 |
4 | ||
| 55905-35330 |
KZN185,RZN18#,VZN18# |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
KZN185,RZN185,VZN185 |
4 | ||
| 55905-35330 |
KZN185,RZN18#,VZN18# |
3 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35290 |
KZN185,VZN185 AUTO |
1 | ||
| 55905-35170 |
KZN185,VZN185 DIAL |
2 | ||
| 55905-35250 |
KZN185,VZN185 FRS/REC |
1 | ||
| 55905-35320 |
KZN185,RZN18#,VZN18# W(MANUAL AIR CONDITIONER),FRS/REC |
1 | ||
| 55905-35300 |
KZN185,VZN185 MODE |
1 | ||
| 55905-35230 |
KZN185,VZN185 OFF |
1 | ||
| 55905-35210 |
KZN185,VZN185 A/C |
1 | ||
| 55905-35190 |
KZN185,VZN185 DEF |
1 | ||
| 55905-35270 |
KZN185,VZN185 OUT/T |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-35090 |
KZN185,RZN185,VZN185 |
1 | ||
| 55910-35250 |
KZN185,RZN18#,VZN18# |
1 | ||
| 55910-35231 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-35030 |
KZN185,RZN18#,VZN18# |
1 | ||
| 55912-35020 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 84661A - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-35010 |
KZN185,RZN18#,VZN18# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-35120 |
KZN185,RZN18#,VZN18# |
1 | ||
| 88650-35130 |
KZN185,VZN185 W(AUTO AIR CONDITIONER) |
1 | ||
| 88650-35121 |
KZN185,RZN18#,VZN18# |
1 | ||
| Common parts | ||||
| 90167-30009 | ||||
| 90167-50028 | ||||
