KZN185L-GKMST (2000)

Toyota 4runner

Production Aug 2000 - Nov 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )KZN185

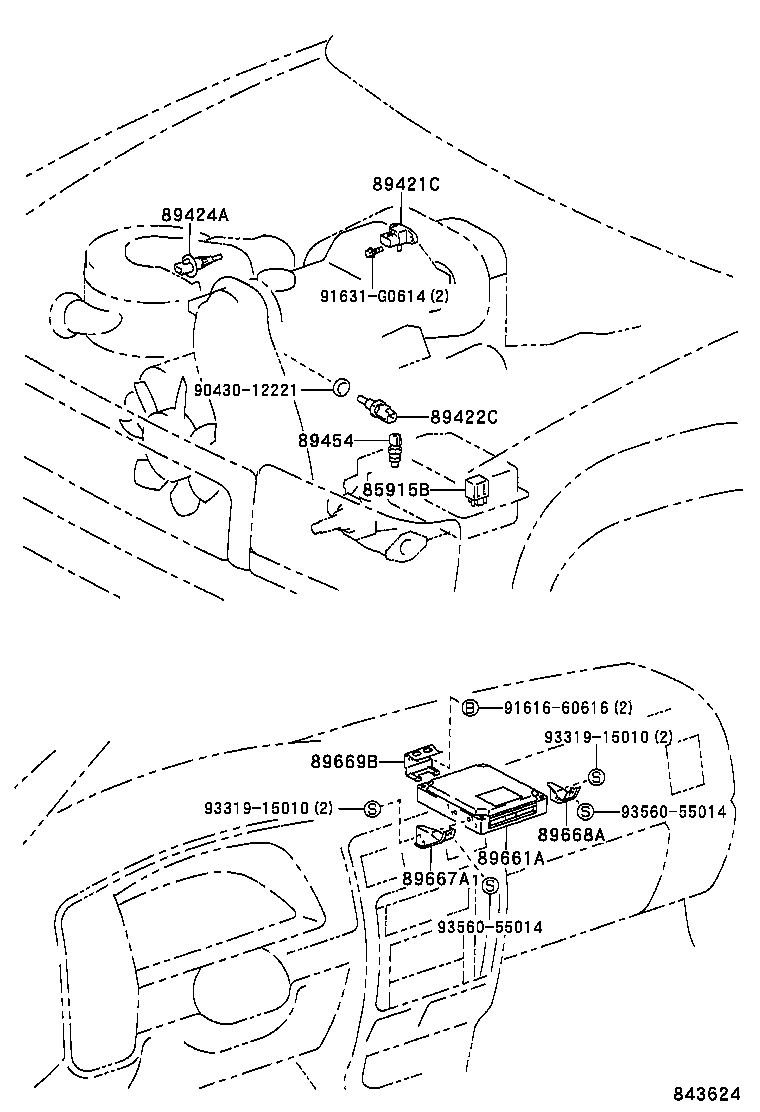

Click highlighted areas on diagram

diagram 85915B 89421C 89422C 89424A 89454 89661A 89667A 89668A 89669B 9043012221 9161660616 91631G0614 9331915010 9331915010 9356055014 9356055014
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02012

KZN185

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-60030

KZN185

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

KZN185

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-12010

KZN185

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

KZN185

 1
89661A - COMPUTER, ENGINE CONTROL
89666-35190

KZN185

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-35080

KZN185

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35120

KZN185

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35060

KZN185

 1
Common parts
90430-12221
91616-60616
91631-G0614
93319-15010
93560-55014
