KZN185L-GKMST (2000)

Toyota 4runner

Production Aug 2000 - Nov 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

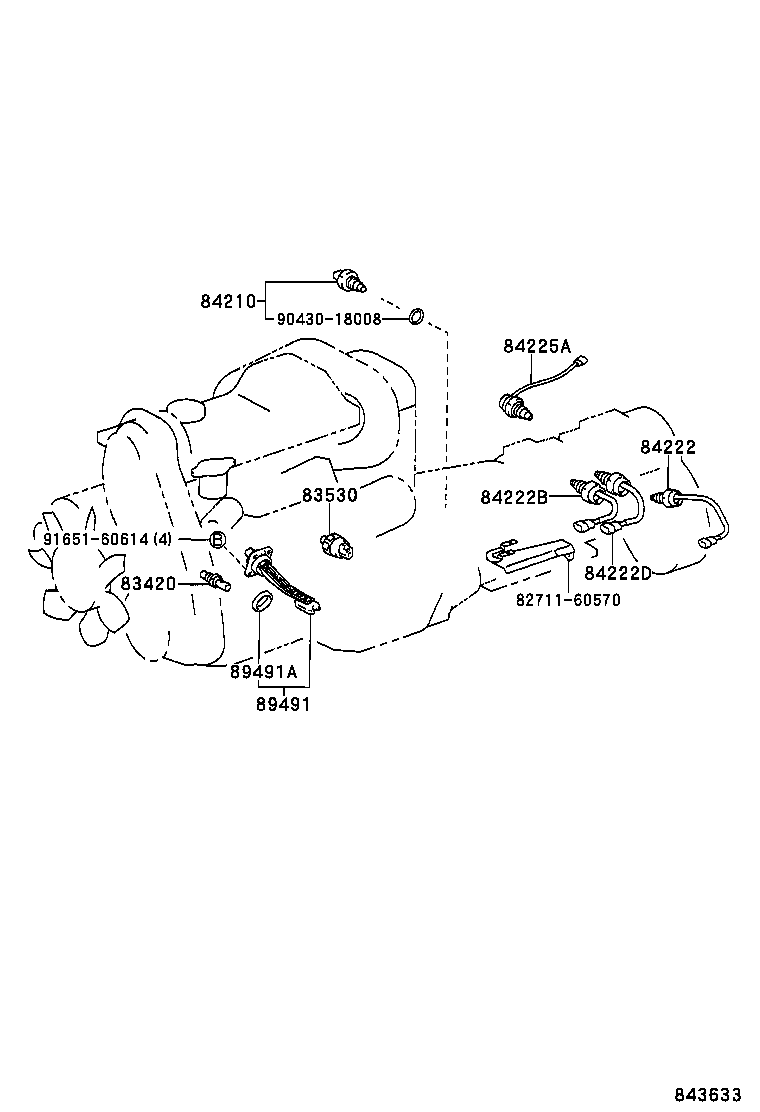

ILLUST NO. 1 OF 7(0008- )KZN185

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271160570 83420 83530 84210 84222 84222B 84222D 84225A 89491 89491A 9043018008 9165160614
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

KZN185

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30100

KZN185

YAZAKI

 1
83530-14070

KZN185

NIPPONDENSO

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

KZN185,RZN18#

 1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-35110

KZN185,RZN185,VZN185

 1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-35090

KZN185,VZN185..EFI,TDE

 1
84225A - SWITCH, SHIFT POSITION
84225-35010

KZN185

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-60050

KZN185

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

KZN185

 1
Common parts
82711-60570
90430-18008
91651-60614
