KZN185L-GKMST (2000)

Toyota 4runner

Production Aug 2000 - Nov 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

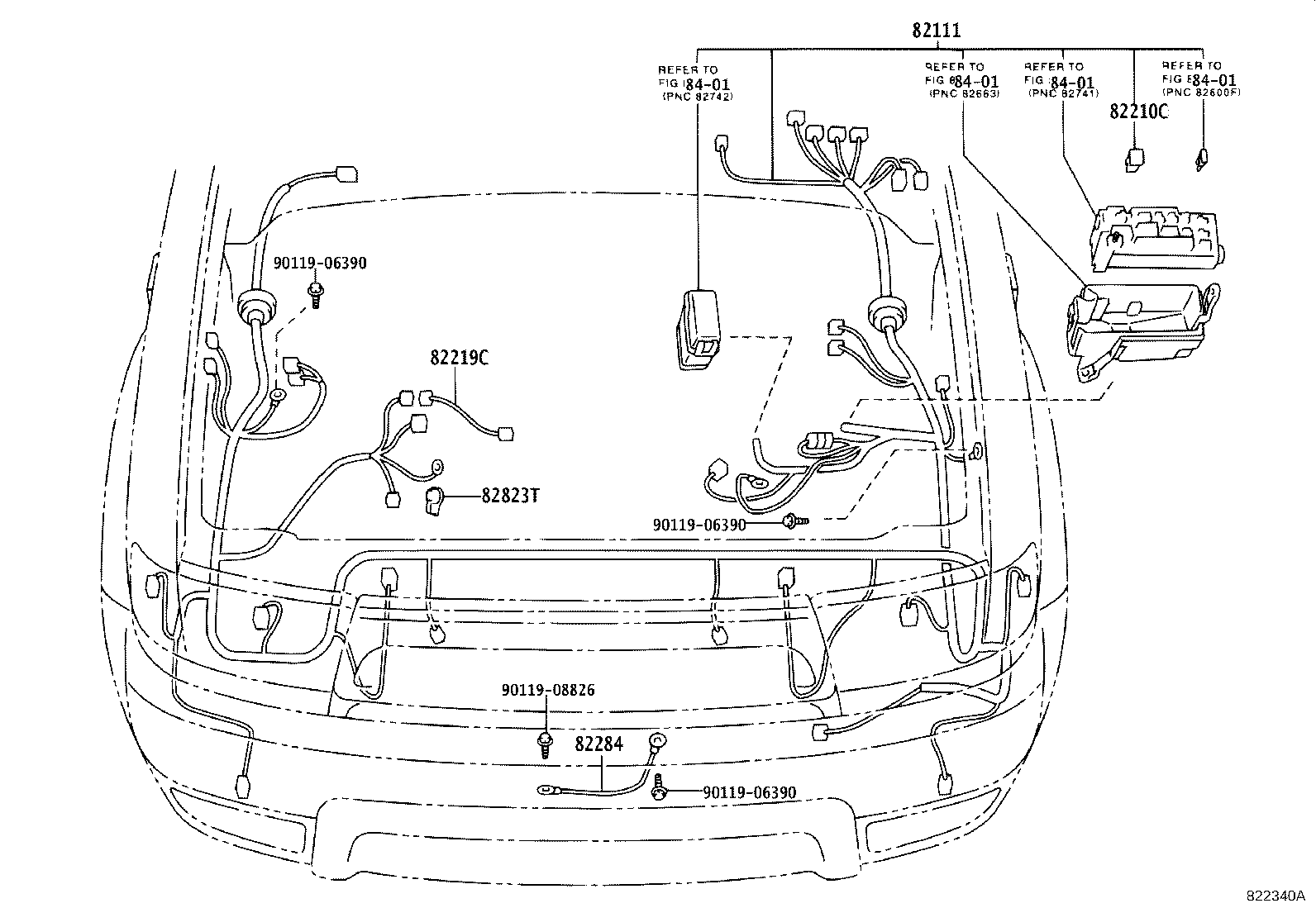

ILLUST NO. 1 OF 7(0008- )KZN185

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82210C 82219C 82284 82823T 8401 8401 8401 8401 9011906390 9011906390 9011906390 9011908826
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-3D610

KZN185

 1
82111-3D620

KZN185

W(*ADD)

 1
82115-35150

KZN185

W(ABS)

 1
82115-35140

KZN185

 1
82210C - FUSIBLE LINK
90982-08281

KZN185,RZN18#,VZN18#

40A,TERM.:FEMALE,GRN,YAZAKI

 1
90982-08284

KZN185,RZN18#,VZN18#

40A,TERM.:FEMALE,GRN,TAIHEIYO

 1
90982-08203

KZN185

80A,TERM.:MALE,BLK

 2
90982-08282

KZN185,RZN185,VZN185

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08285

KZN185,RZN185,VZN185

50A,TERM.:FEMALE,RED,TAIHEIYO

 1
82219C - WIRE, SENSOR
82219-60020

KZN185

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

KZN185

 1
Common parts
90119-06390
90119-08826
Linked diagrams
8401

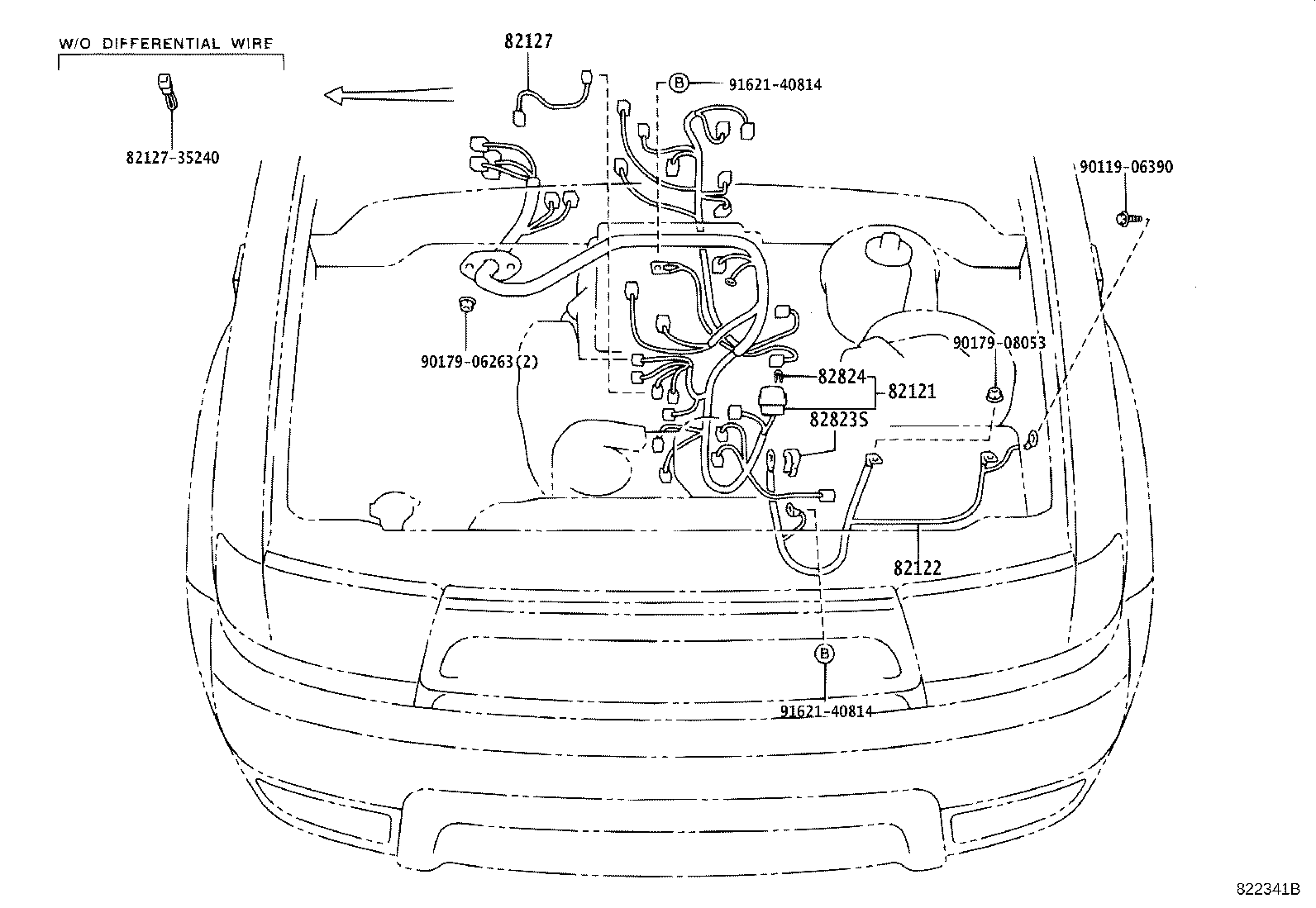

ILLUST NO. 2 OF 7(0008- )KZN185

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82127 8212735240 82823S 82824 9011906390 9017906263 9017908053 9162140814 9162140814
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-3D180

KZN185

 1
82121-3G810

KZN185

 1
82127 - WIRE, DIFFERENTIAL
82127-35110

KZN185

 1
82127-35220

KZN185

 1
82824 - CONNECTOR, WIRING HARNESS
82824-24010

KZN185

 1
Common parts
82127-35240
90119-06390
90179-06263
90179-08053
91621-40814
