KZN185L-GKMST (2000)

Toyota 4runner

Production Aug 2000 - Nov 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )KZN185,RZN185,VZN185

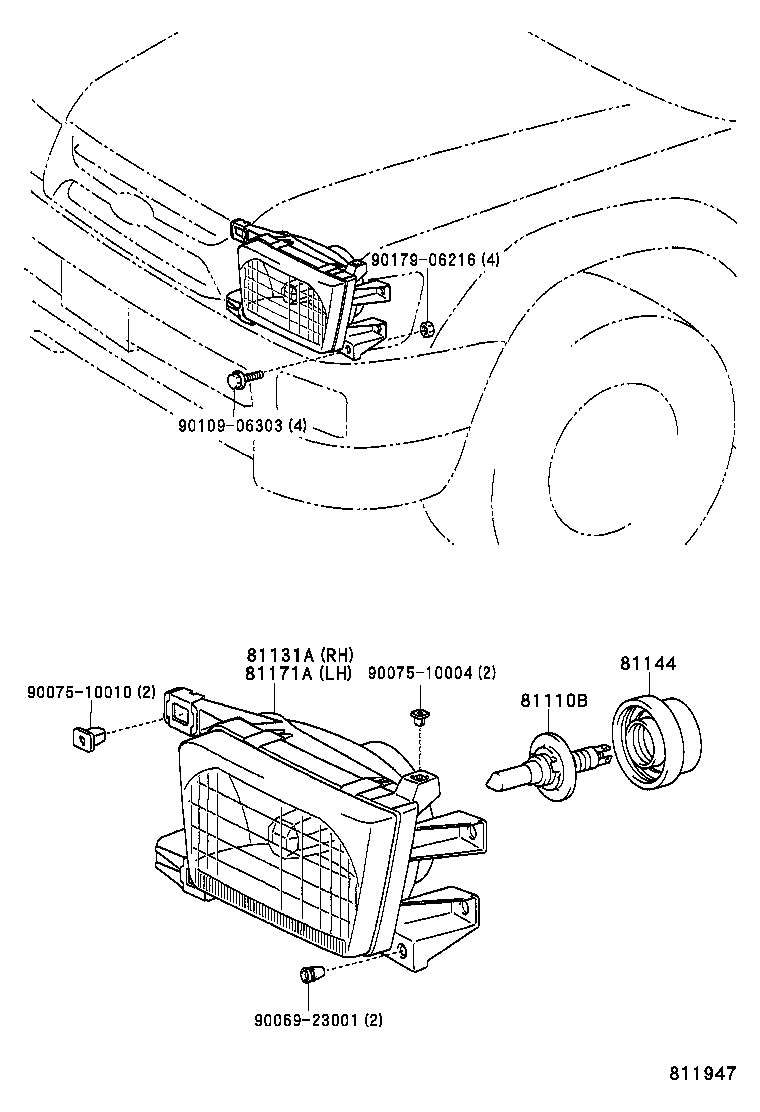

Click highlighted areas on diagram

ARGENTINA SPEC

diagram 81110B 81131A 81144 81171A 9006923001 9007510004 9007510010 9010906303 9017906216
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13055

KZN185,RZN185,VZN185

12V 60/55W,HALOGEN

 2
90981-13058

KZN185,RZN18#,VZN18#

12V 60/55W,HALOGEN

 2
81131A - UNIT, HEADLAMP, RH
81130-35410

KZN185,RZN185,VZN185

ARGENTINA SPEC

 1
81130-35230

KZN185,RZN185,VZN185

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

KZN185,RZN185,VZN185

 2
81171A - UNIT, HEADLAMP, LH
81170-35210

KZN185,RZN185,VZN185

 1
81170-35390

KZN185,RZN185,VZN185

ARGENTINA SPEC

 1
Common parts
90069-23001
90075-10004
90075-10010
90109-06303
90179-06216
