KZN185L-GKMST (2000)
Toyota 4runner
Production
Aug 2000
-
Nov 2002
Engine
1KZTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )KZN185

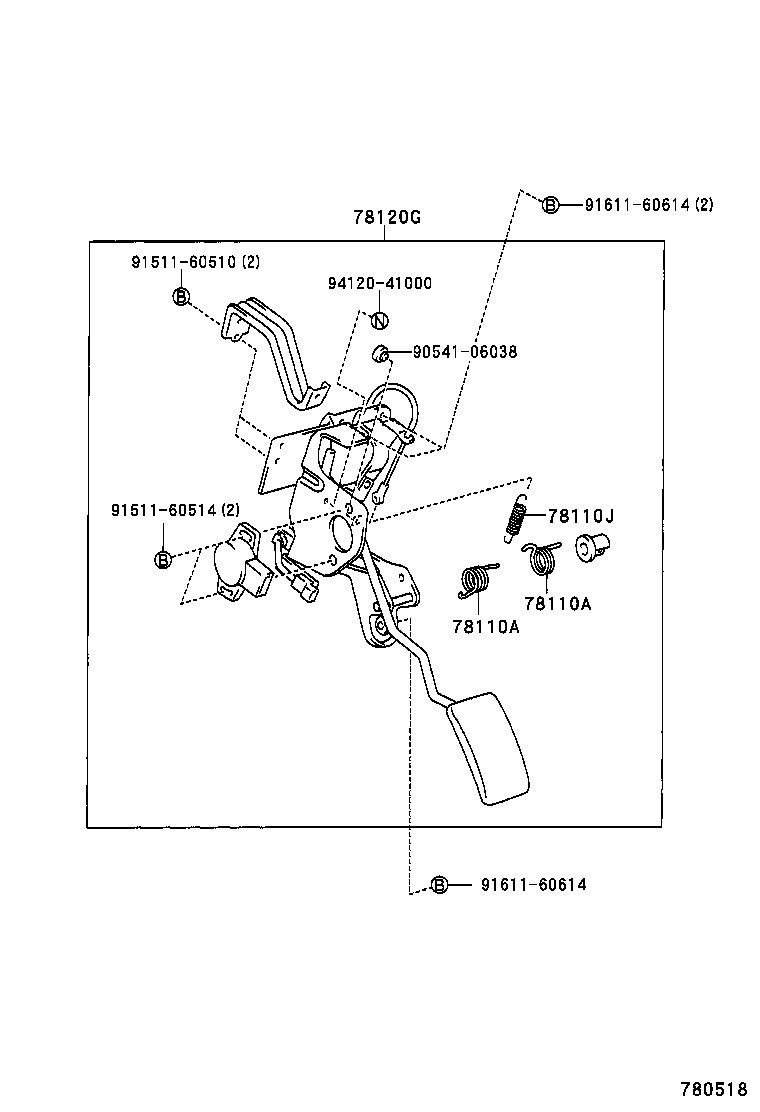

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03296 |
KZN185 INNER |
1 | ||
| 90959-03295 |
KZN185 OUTER |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03296 |
KZN185 INNER |
1 | ||
| 90959-03295 |
KZN185 OUTER |
1 | ||
| 78110J - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90506-11008 |
KZN185 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-35040 |
KZN185 |
1 | ||
| Common parts | ||||
| 90541-06038 | ||||
| 91511-60510 | ||||
| 91511-60514 | ||||
| 91611-60614 | ||||
| 94120-41000 | ||||
