KZN185L-GKMST (2000)

Toyota 4runner

Production Aug 2000 - Nov 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

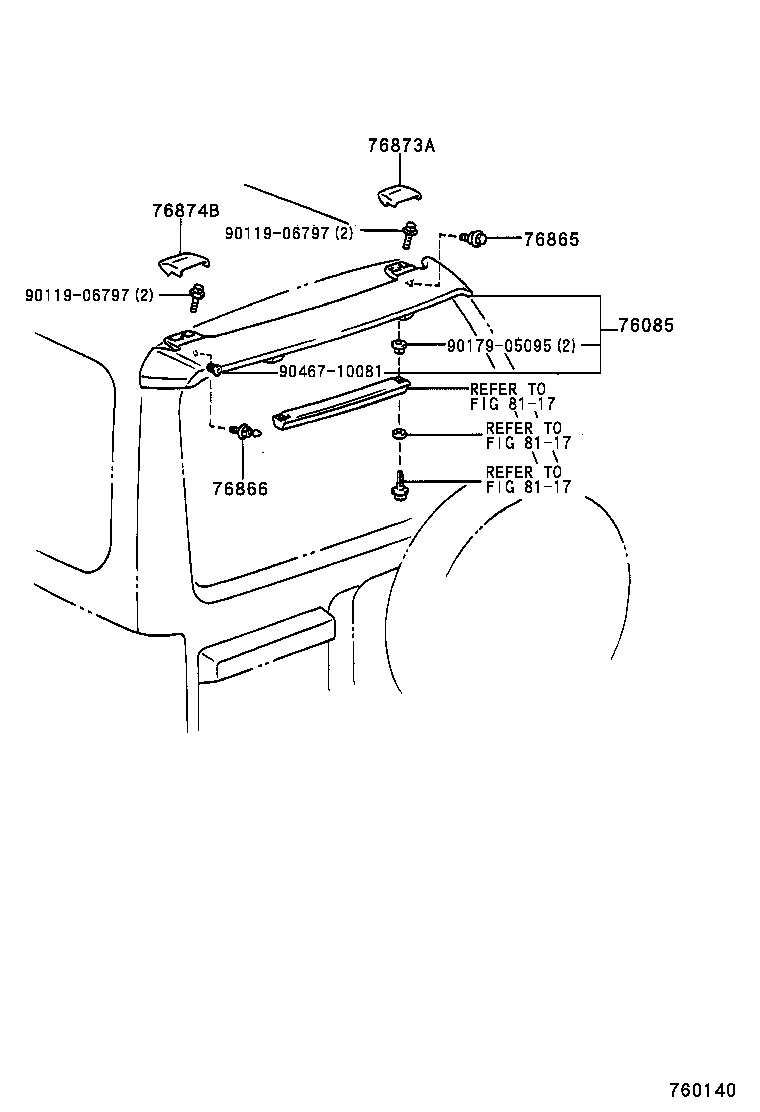

Click highlighted areas on diagram

diagram 76085 76865 76866 76873A 76874B 8117 8117 8117 8150 8150 9011906797 9011906797 9017905095 9046710081
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-35901

KZN185,RZN18#,VZN18#

PAINT REQ.

 1
76865 - RETAINER, REAR SPOILER, NO.1
76865-35020

KZN185,RZN18#,VZN18#

 1
76866 - RETAINER, REAR SPOILER, NO.2
76866-35010

KZN185,RZN18#,VZN18#

 1
76873A - PROTECTOR, REAR SPOILER, RH
76873-35020G0

KZN185,RZN18#,VZN18#

DK. GREEN MC.,KG6 ,K79 ,6Q7

 1
76873-35020C0

KZN185,RZN18#,VZN18#

BLACK,KA3 ,KG1 ,202

 1
76873-35020D0

KZN185,RZN18#,VZN18#

RED MM,KG2 ,3K4

 1
76873-35020F1

KZN185,RZN18#,VZN18#

CHAMPAGNE M.M.,KG4 ,KG5 ,587

 1
76873-35020D0

KZN185,RZN18#,VZN18#

RED MM,KG2 ,KH6 ,3K4

 1
76873-35020B1

KZN185,RZN18#,VZN18#

GRAY ME.,KF9 ,KG0 ,1D2

 1
76873-35020H0

KZN185,RZN18#,VZN18#

AQUA ME.,KG7 ,768

 1
76873-35020B0

KZN185,RZN18#,VZN18#

SILVER ME.,KF8 ,K73 ,1C0

 1
76873-35020J0

KZN185,RZN18#,VZN18#

DK.BLUE M.M.,KG9 ,8L7

 1
76873-35020A0

KZN185,RZN18#,VZN18#

WHITE,K72 ,056

 1
76873-35020G0

KZN185,RZN18#,VZN18#

DK. GREEN MC.,KG6 ,6Q7

 1
76873-35020J0

KZN185,RZN18#,VZN18#

DK.BLUE M.M.,KG9 ,KH7 ,8L7

 1
76874B - PROTECTOR, REAR SPOILER, LH
76874-35020D0

KZN185,RZN18#,VZN18#

RED MM,KG2 ,3K4

 1
76874-35020J0

KZN185,RZN18#,VZN18#

DK.BLUE M.M.,KG9 ,8L7

 1
76874-35020C0

KZN185,RZN18#,VZN18#

BLACK,KA3 ,KG1 ,202

 1
76874-35020G0

KZN185,RZN18#,VZN18#

DK. GREEN MC.,KG6 ,K79 ,6Q7

 1
76874-35020D0

KZN185,RZN18#,VZN18#

RED MM,KG2 ,KH6 ,3K4

 1
76874-35020B0

KZN185,RZN18#,VZN18#

SILVER ME.,KF8 ,K73 ,1C0

 1
76874-35020G0

KZN185,RZN18#,VZN18#

DK. GREEN MC.,KG6 ,6Q7

 1
76874-35020F1

KZN185,RZN18#,VZN18#

CHAMPAGNE M.M.,KG4 ,KG5 ,587

 1
76874-35020H0

KZN185,RZN18#,VZN18#

AQUA ME.,KG7 ,768

 1
76874-35020J0

KZN185,RZN18#,VZN18#

DK.BLUE M.M.,KG9 ,KH7 ,8L7

 1
76874-35020A0

KZN185,RZN18#,VZN18#

WHITE,K72 ,056

 1
76874-35020B1

KZN185,RZN18#,VZN18#

GRAY ME.,KF9 ,KG0 ,1D2

 1
Common parts
90119-06797
90179-05095
90467-10081
Linked diagrams
8117
8150
