KZN185L-GKMST (2000)
Toyota 4runner
Production
Aug 2000
-
Nov 2002
Engine
1KZTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )1KZTE

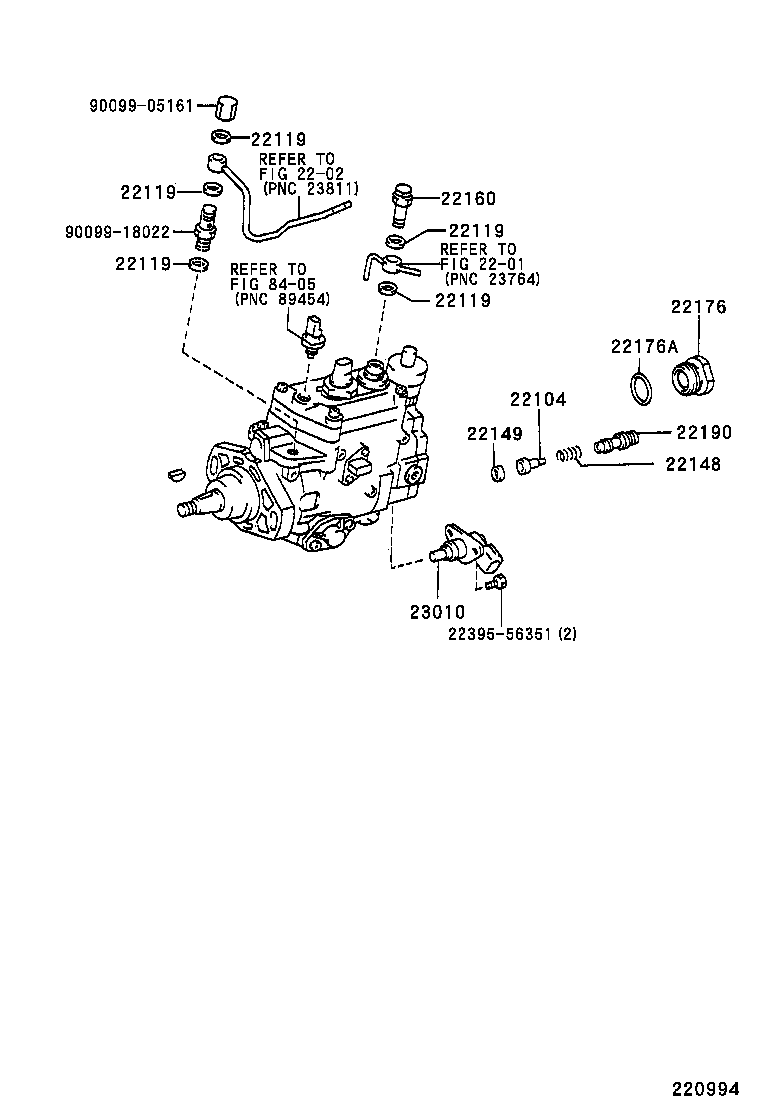

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-67100 |
1KZTE..KZN185 |
4 | ||
| 22104-5B320 |
1KZT..KZN185 |
4 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZT..KZN185 |
6 | ||
| 90201-12109 |
1KZTE..KZN185 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZT..KZN185 |
6 | ||
| 90201-12109 |
1KZTE..KZN185 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZT..KZN185 |
6 | ||
| 90201-12109 |
1KZTE..KZN185 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZT..KZN185 |
6 | ||
| 90201-12109 |
1KZTE..KZN185 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZT..KZN185 |
6 | ||
| 90201-12109 |
1KZTE..KZN185 |
5 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1KZ#..KZN185 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
1KZ#..KZN185 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-96300 |
1KZT..KZN185 |
1 | ||
| 22160-67100 |
1KZTE..KZN185 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
1KZT..KZN185 |
1 | ||
| 22176-54640 |
1KZTE..KZN185 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
1KZT..KZN185 |
1 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-6A680 |
1KZ#..KZN185 |
4 | ||
| 23010 - VALVE ASSY, TIMING CONTROL | ||||
| 23010-67010 |
1KZTE..KZN185 |
1 | ||
| Common parts | ||||
| 22395-56351 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
| 8405 | ||||
