KZN185L-GKMST (2000)
Toyota 4runner
Production
Aug 2000
-
Nov 2002
Engine
1KZTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )1KZTE

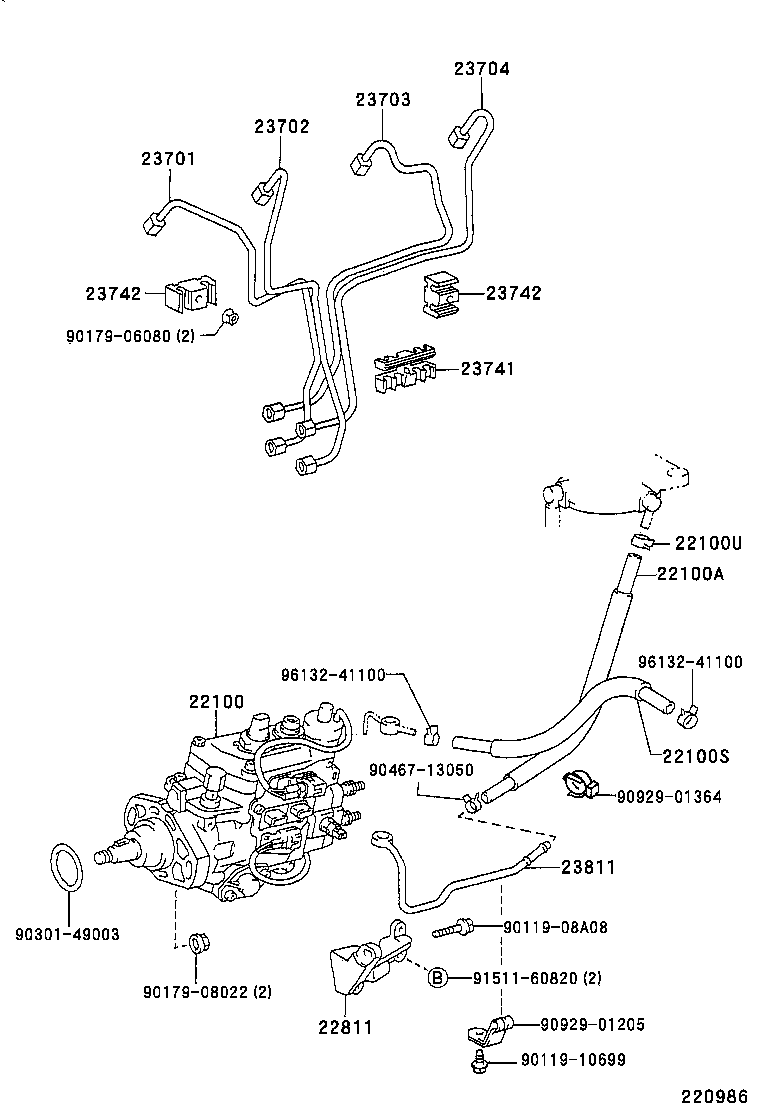

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-67120 |
1KZTE..KZN185 |
1 | ||
| 22100-67060 |
1KZT..KZN185 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-67090 |
1KZT..KZN185 L=550 |
1 | ||
| 23271-67160 |
1KZTE..KZN185 L=550 |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23273-67070 |
1KZTE..KZN185 |
1 | ||
| 23273-67050 |
1KZT..KZN185 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96135-41400 |
1KZTE..KZN185 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-67010 |
1KZ#..KZN185 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-67021 |
1KZ#..KZN185 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-67020 |
1KZT..KZN185 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-67021 |
1KZT..KZN185 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-67020 |
1KZ#..KZN185 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-64030 |
1KZ#..KZN185 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-67010 |
1KZ#..KZN185 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-67010 |
1KZ#..KZN185 |
2 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-67050 |
1KZ#..KZN185 |
1 | ||
| Common parts | ||||
| 90119-08A08 | ||||
| 90119-10699 | ||||
| 90179-06080 | ||||
| 90179-08022 | ||||
| 90301-49003 | ||||
| 90467-13050 | ||||
| 90929-01205 | ||||
| 90929-01364 | ||||
| 91511-60820 | ||||
| 96132-41100 | ||||
