KZN185L-GKMST (2000)

Toyota 4runner

Production Aug 2000 - Nov 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1KZTE

Click highlighted areas on diagram

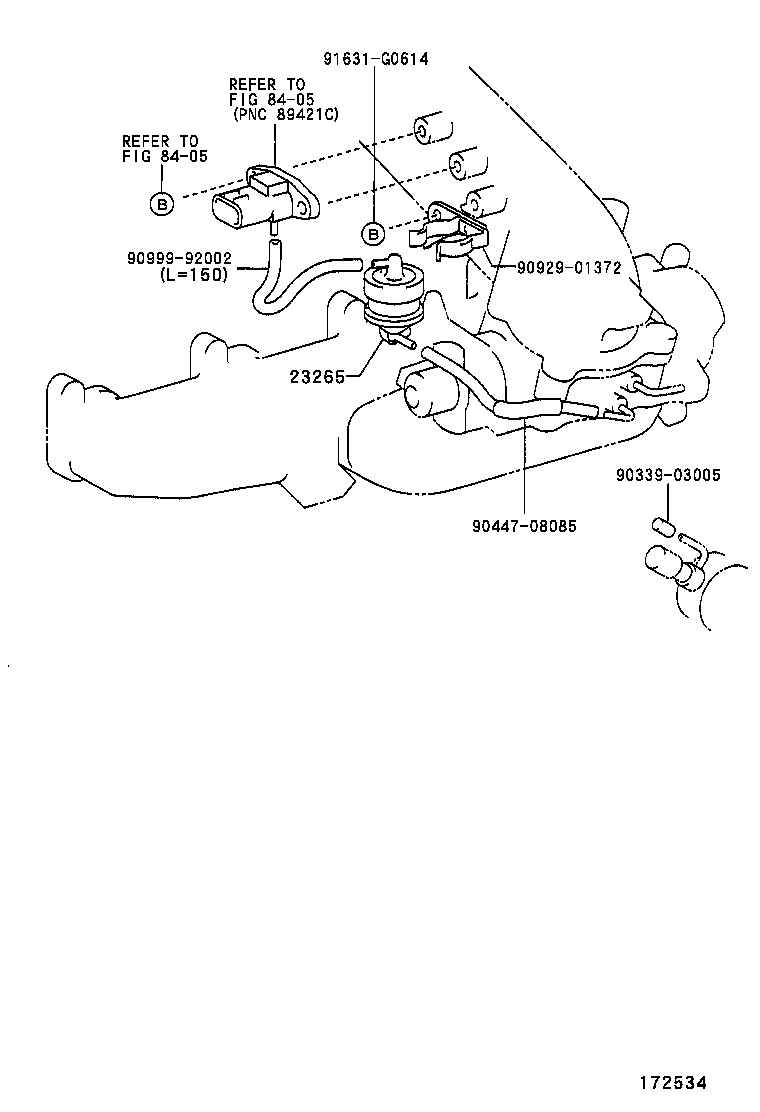

diagram 23265 8405 8405 9033903005 9044708085 9092901372 9099992002 91631G0614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1KZT..KZN185

 1
90917-11044

1KZTE..KZN185

 1
Common parts
90339-03005
90447-08085
90929-01372
90999-92002
91631-G0614
Linked diagrams
8405
