KZN185L-GKMST (2000)
Toyota 4runner
Production
Aug 2000
-
Nov 2002
Engine
1KZTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

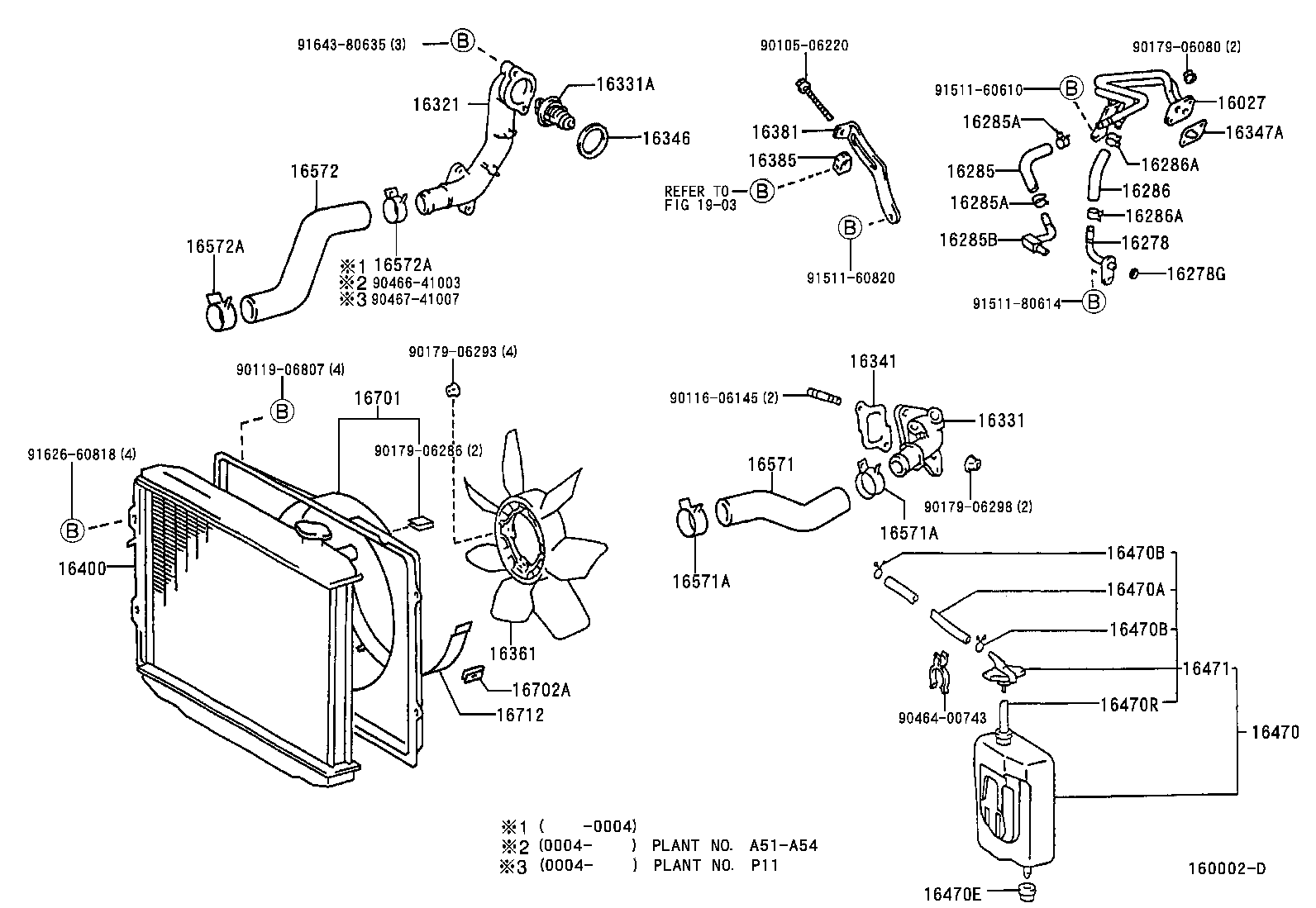

ILLUST NO. 1 OF 2(0008- )1KZTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-67010 |
1KZT..KZN185 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-67010 |
1KZ#..KZN185 |
1 | ||
| 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) | ||||
| 96761-24010 |
1KZ#..KZN185 |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-67010 |
1KZ#..KZN185 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZ#..KZN185 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZ#..KZN185 |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-10044 |
1KZ#..KZN185 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16285-67010 |
1KZT..KZN185 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZ#..KZN185 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZ#..KZN185 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-67011 |
1KZ#..KZN185 |
1 | ||
| 16321-0K010 |
1KZTE..KZN185 (L) |
1 | ||
| 16321-67011 |
1KZTE..KZN185 (J) |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-67030 |
1KZT..KZN185 |
1 | ||
| 16331-67020 |
1KZTE..KZN185 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03097 |
1KZT..KZN185 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-67020 |
1KZ#..KZN185 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KZ#..KZN185 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-67010 |
1KZ#..KZN185 |
1 | ||
| 16361 - FAN | ||||
| 16361-67020 |
1KZ#..KZN185 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-67020 |
1KZ#..KZN185 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-67010 |
1KZ#..KZN185 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-67130 |
1KZT..KZN185 |
1 | ||
| 16400-67181 |
1KZTE..KZN185 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
1KZ#..KZN185 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZT..KZN185 *H,L=410 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZ#..KZN185 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZ#..KZN185 |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
1KZ#..KZN185 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZ#..KZN185 *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
1KZ#..KZN185 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-67070 |
1KZ#..KZN185 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41006 |
1KZT..KZN185 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41006 |
1KZT..KZN185 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-67070 |
1KZ#..KZN185 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41006 |
1KZT..KZN185 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41006 |
1KZT..KZN185 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-67080 |
1KZ#..KZN185 |
1 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
1KZ#..KZN185 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67050 |
1KZ#..KZN185 |
1 | ||
| Common parts | ||||
| 90105-06220 | ||||
| 90116-06145 | ||||
| 90119-06807 | ||||
| 90179-06080 | ||||
| 90179-06286 | ||||
| 90179-06293 | ||||
| 90179-06298 | ||||
| 90464-00743 | ||||
| 90466-41003 | ||||
| 90467-41007 | ||||
| 91511-60610 | ||||
| 91511-60820 | ||||
| 91511-80614 | ||||
| 91626-60818 | ||||
| 91643-80635 | ||||
| Linked diagrams | ||||
| 1903 | ||||
