KZN185L-GKMST (2000)
Toyota 4runner
Production
Aug 2000
-
Nov 2002
Engine
1KZTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )1KZTE

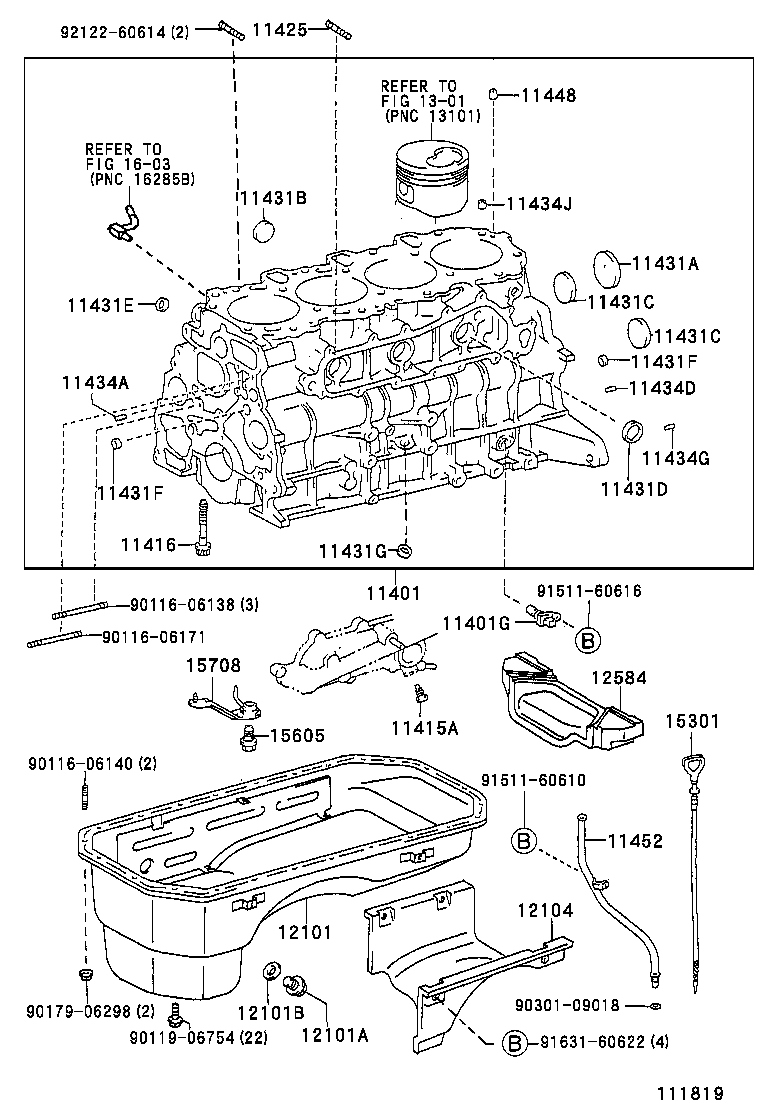

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69605 |
1KZT..KZN185 |
1 | ||
| 11401-69837 |
1KZTE..KZN185 |
1 | ||
| 11401-69838 |
1KZTE..KZN185 |
1 | ||
| 11401-69839 |
1KZTE..KZN185 |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05005 |
1KZTE..KZN185 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1KZ#..KZN185 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02113 |
1KZ#..KZN185 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-06141 |
1KZT..KZN185 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-64500 |
1KZ#..KZN185 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
1KZ#..KZN185 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
1KZ#..KZN185 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
1KZ#..KZN185 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90331-35004 |
1KZ#..KZN185 |
3 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-62000 |
1KZ#..KZN185 |
1 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
1KZ#..KZN185 |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
1KZ#..KZN185 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1KZ#..KZN185 L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1KZ#..KZN185 L=11,OD=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
1KZ#..KZN185 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
1KZ#..KZN185 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-67010 |
1KZ#..KZN185 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-67030 |
1KZ#..KZN185 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-67110 |
1KZT..KZN185 |
1 | ||
| 12101-67120 |
1KZTE..KZN185 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1KZ#..KZN185 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KZ#..KZN185 |
1 | ||
| 12104 - COVER SUB-ASSY, OIL PAN, NO.1 | ||||
| 12104-67010 |
1KZ#..KZN185 |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-67060 |
1KZT..KZN185 |
1 | ||
| 12584-30010 |
1KZTE..KZN185 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-67030 |
1KZT..KZN185 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
1KZ#..KZN185 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-30010 |
1KZTE..KZN185 |
4 | ||
| 15708-67010 |
1KZ#..KZN185 |
4 | ||
| Common parts | ||||
| 90116-06138 | ||||
| 90116-06140 | ||||
| 90116-06171 | ||||
| 90119-06754 | ||||
| 90179-06298 | ||||
| 90301-09018 | ||||
| 91511-60610 | ||||
| 91511-60616 | ||||
| 91631-60622 | ||||
| 92122-60614 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
