GRN285L-GKAGK (2019)

Toyota 4runner

Production Aug 2019 - Sep 9999
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

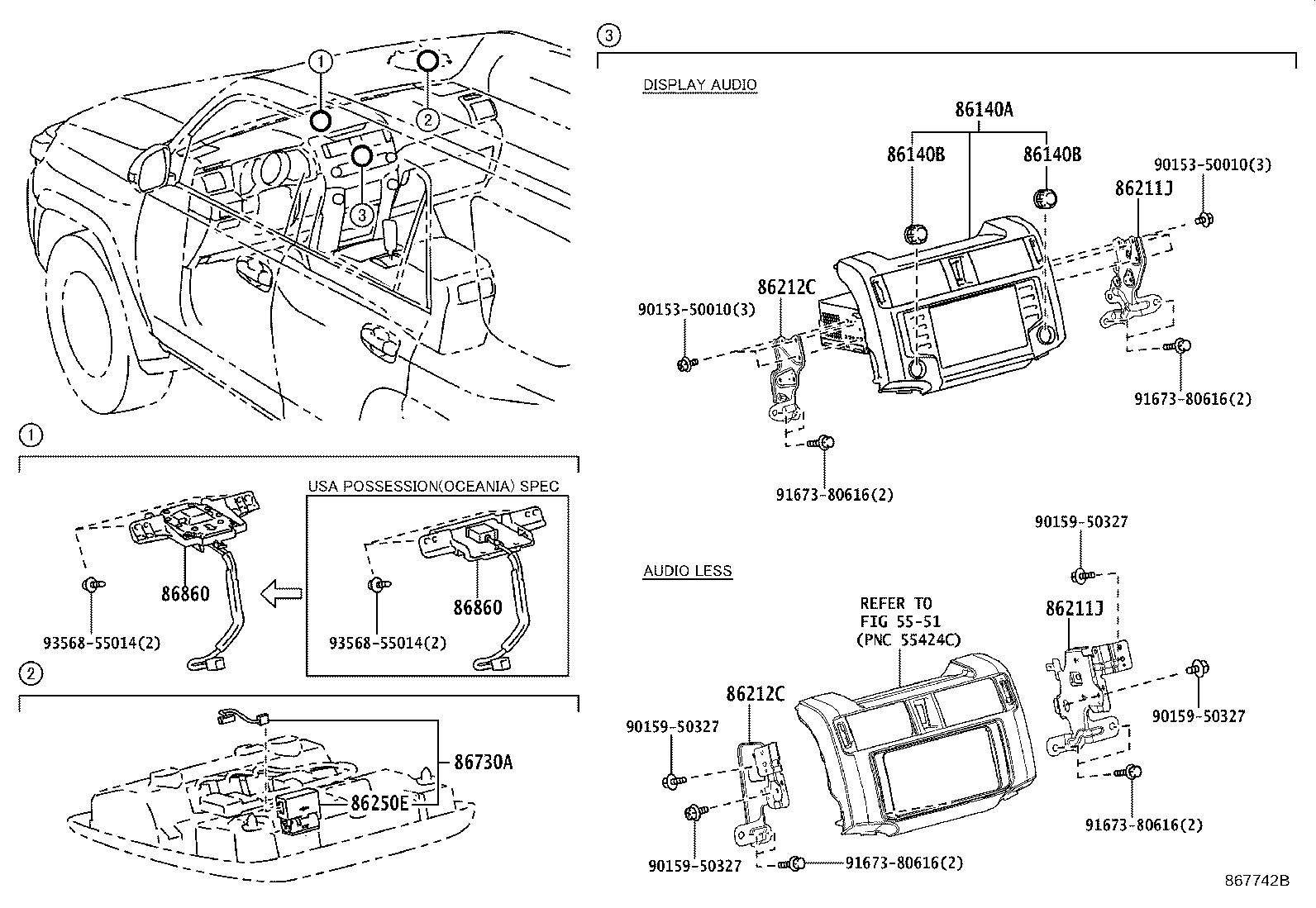

Click highlighted areas on diagram

diagram 5551 86140A 86140B 86140B 86211J 86211J 86212C 86212C 86250E 86730A 86860 86860 9015350010 9015350010 9015950327 9015950327 9015950327 9015950327 9167380616 9167380616 9167380616 9167380616 9356855014 9356855014
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-35350

GRN28#

PIONEER, SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86140-35350

GRN28#

PIONEER, LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22135

GRN28#

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 2
90010-22135

GRN28#

SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22135

GRN28#

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 2
90010-22135

GRN28#

SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-35140

GRN28#

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86211-35090

GRN28#

 1
86211-35140

GRN28#

SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-35140

GRN28#

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86211-35090

GRN28#

 1
86211-35140

GRN28#

SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-35140

GRN28#

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86212-35090

GRN28#

 1
86212-35140

GRN28#

SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-35140

GRN28#

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86212-35090

GRN28#

 1
86212-35140

GRN28#

SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

GRN28#

AUDIO-*DA & 8SPEAKER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-75020

GRN28#

AUDIO-*DA & 8SPEAKER

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-35090

GRN28#

AUDIO-*DA & 8SPEAKER

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-35090

GRN28#

AUDIO-*DA & 8SPEAKER

 1
Common parts
90153-50010
90159-50327
91673-80616
93568-55014
Linked diagrams
5551
