GRN280L-GKAGK (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 9(1308- )

Click highlighted areas on diagram

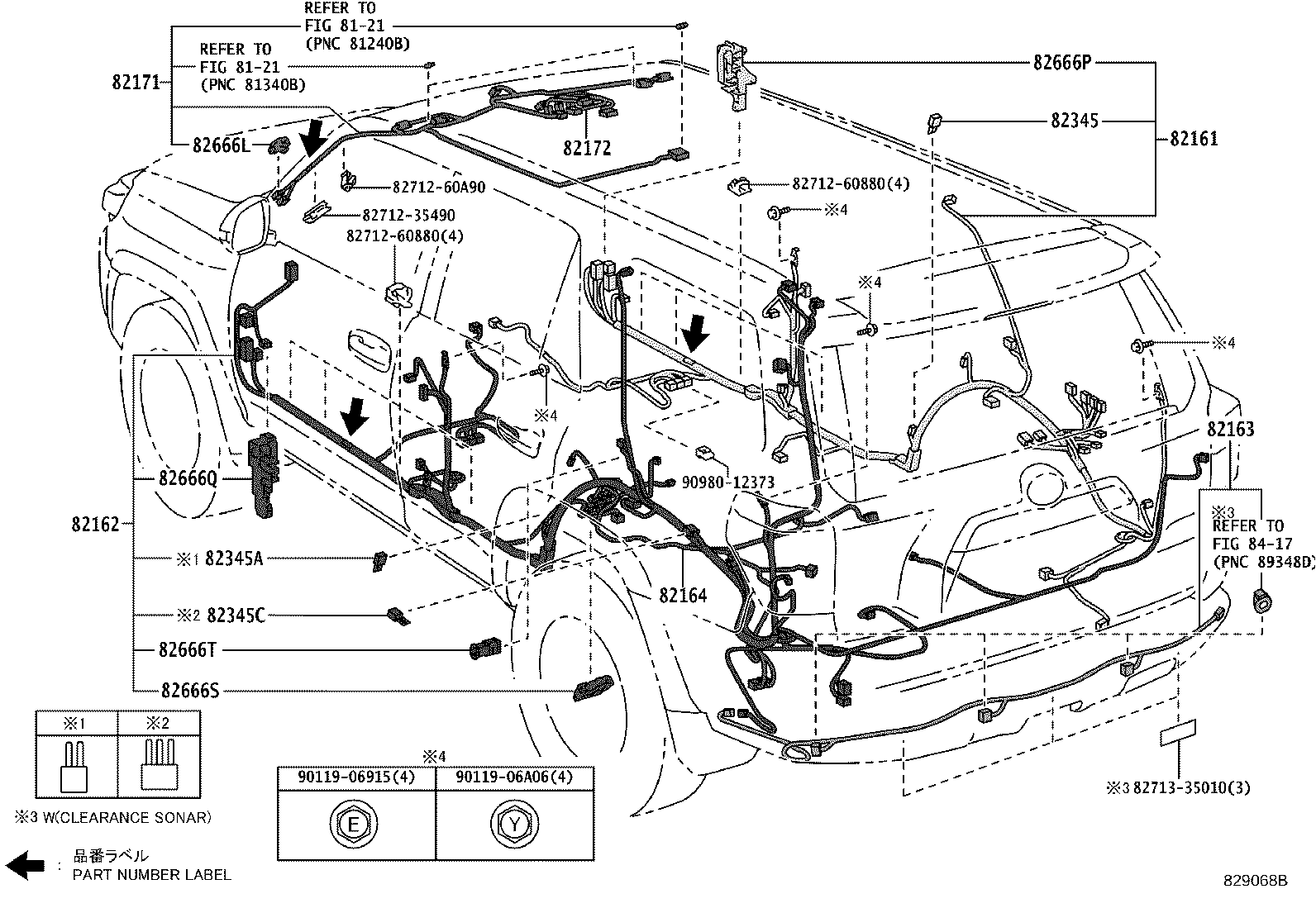

FLOOR,FRAME & ROOF

diagram 8121 8121 82161 82162 82163 82164 82171 82172 82345 82345A 82345C 82666L 82666P 82666Q 82666S 82666T 8271235490 8271260880 8271260880 8271260A90 8271335010 8417 9011906915 9011906A06 9098012373
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-35F70

GRN28#

 1
82161-35F80

GRN28#

LIMITED PACKAGE&AUDIO-*DA

 1
82162 - WIRE, FLOOR, NO.2
82162-35K00

GRN28#

CHILE SPEC

 1
82162-35J80

GRN28#

 1
82162-35J90

GRN28#

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER

 1
82162-35K10

GRN28#

CHILE SPEC&LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER

 1
82163 - WIRE, FLOOR, NO.3
82163-35150

GRN28#

LIMITED PACKAGE

 1
82164 - WIRE, FRAME
82164-60C20

GRN28#

 1
82164-35A60

GRN28#

CHILE SPEC

 1
82171 - WIRE, ROOF, NO.1
82171-35D30

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)

 1
82171-35D20

GRN28#

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
82171-35D40

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
82171-35D41

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
82171-35D31

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)

 1
82171-35D10

GRN28#

 1
82172 - WIRE, ROOF, NO.2
82172-35130

GRN280

 1
82345 - DIODE
82345-12050

GRN28#

 1
82345A - DIODE
82345-12050

GRN28#

 1
82345C - DIODE
82345-22051

GRN28#

 1
82666L - HOLDER, CONNECTOR NO.9
82666-35480

GRN28#

 1
82666P - HOLDER, CONNECTOR NO.11
82666-60830

GRN28#

 1
82666Q - HOLDER, CONNECTOR NO.12
82666-60840

GRN28#

 1
82666S - HOLDER, CONNECTOR NO.13
82666-60850

GRN28#

 1
82666T - HOLDER, CONNECTOR NO.14
82666-20270

GRN28#

 1
Common parts
82712-35490
82712-60880
82712-60A90
82713-35010
90119-06915
90119-06A06
90980-12373
Linked diagrams
8121
8417
