GRN280L-GKAGK (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )

Click highlighted areas on diagram

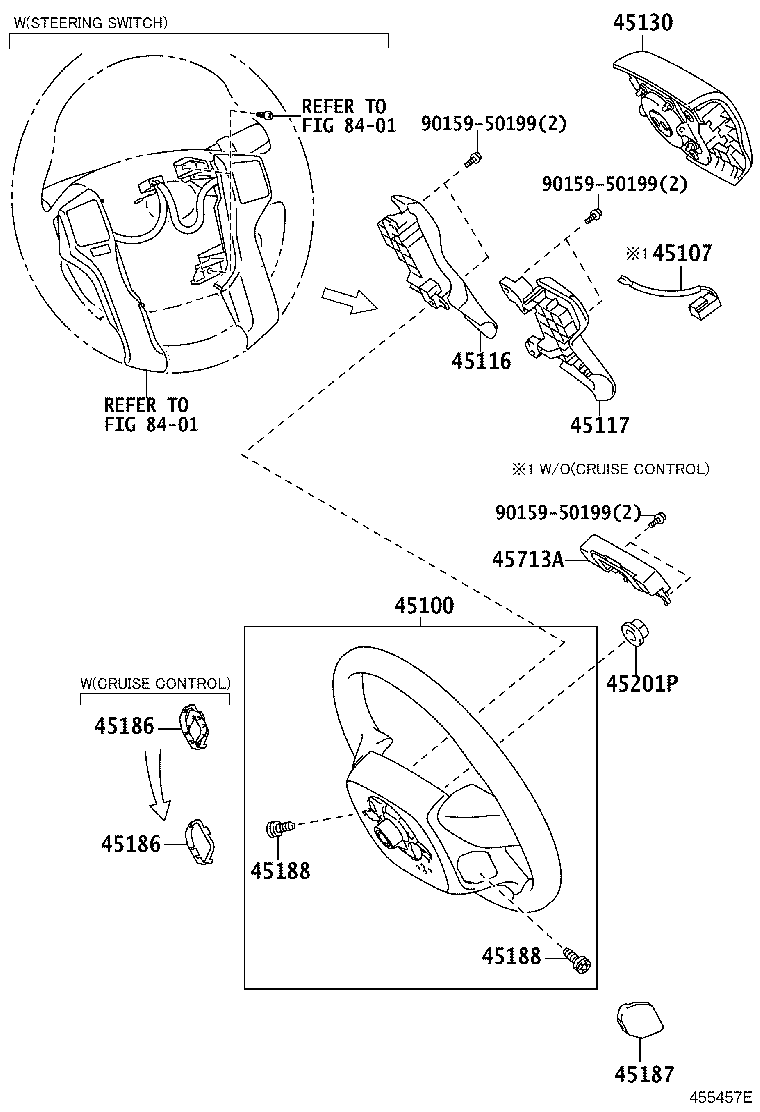

4-SPOKE

diagram 45100 45107 45116 45117 45130 45186 45186 45187 45188 45188 45201P 45713A 8401 8401 9015950199 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60670C0

GRN28#

4-SPOKE, URETHANE,BLACK,TRIM1#,4#

 1
45100-35540C0

GRN28#

4-SPOKE,LEATHER,LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,4#

 1
45100-35540C0

GRN28#

4-SPOKE,LEATHER,SR5 PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-22010

GRN28#

AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER

 1
45107-22010

GRN28#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-60030B1

GRN28#

SILVER ME.,TRIM1#,4#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-60030B2

GRN28#

SILVER ME.,TRIM1#,4#

 1
45130 - BUTTON ASSY, HORN
45130-35460C0

GRN28#

BLACK,TRIM1#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60070C0

GRN28#

SR5 PACKAGE,BLACK,TRIM1#,4#

 1
45186-60070C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM1#,4#

 1
45186-60080C0

GRN28#

BLACK,TRIM1#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60070C0

GRN28#

SR5 PACKAGE,BLACK,TRIM1#,4#

 1
45186-60070C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM1#,4#

 1
45186-60080C0

GRN28#

BLACK,TRIM1#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-60040C0

GRN28#

BLACK,TRIM1#,4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

GRN28#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

GRN28#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

GRN28#

 1
45713A - DAMPER, STEERING SHAKE
45713-60070

GRN28#

 1
Common parts
90159-50199
Linked diagrams
8401
