GRN215L-GKPZK (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

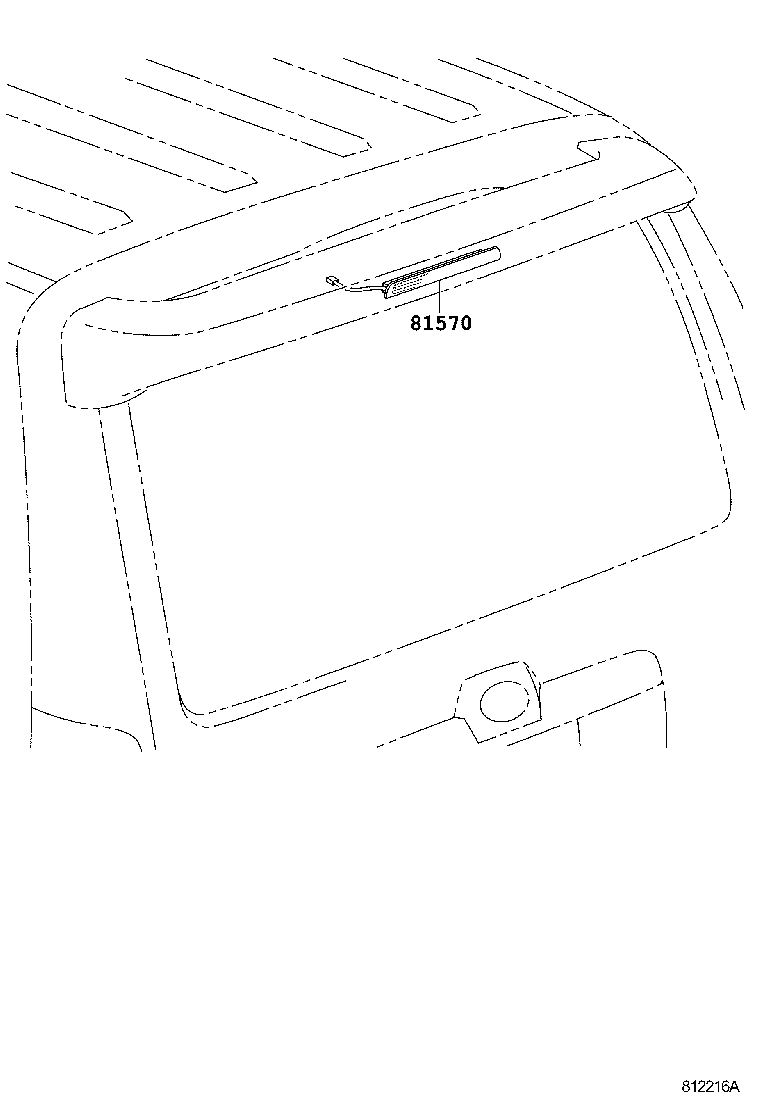

Click highlighted areas on diagram

W(REAR SPOILER)

diagram 81570
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-35100

GRN21#

REAR SPOILER-WITH

 1
81570-35080

GRN21#

 1

(0211- )

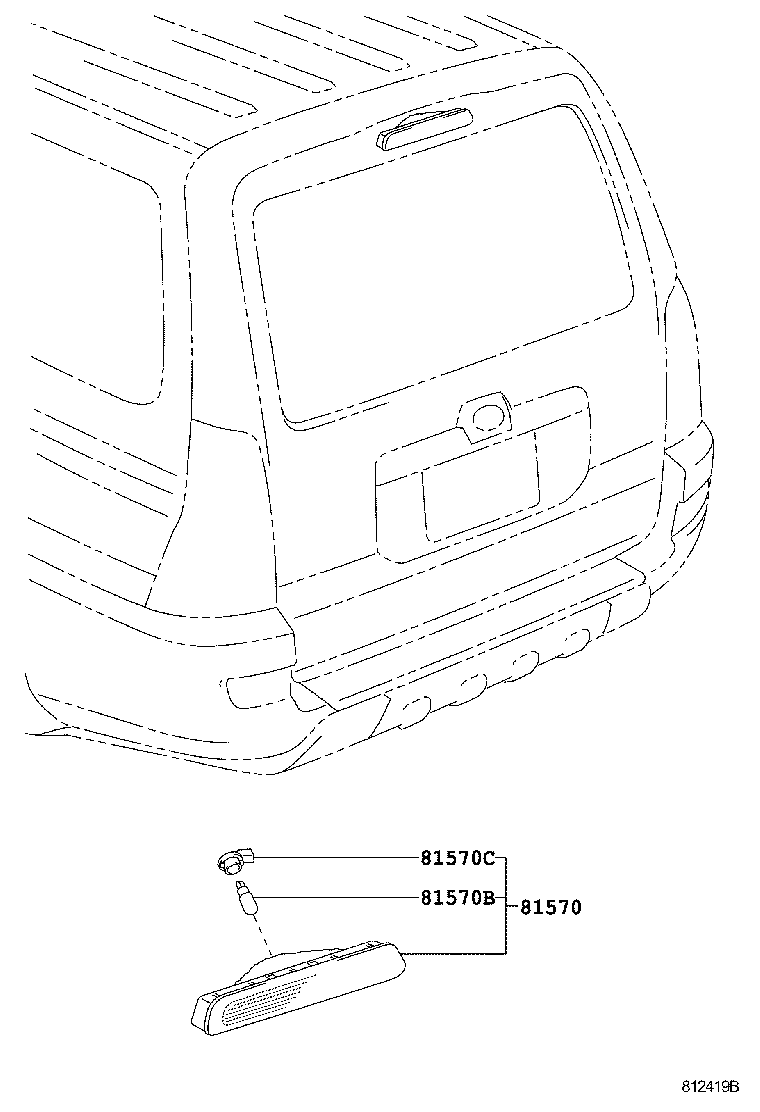

Click highlighted areas on diagram

diagram 81570 81570B 81570C
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-35100

GRN21#

REAR SPOILER-WITH

 1
81570-35080

GRN21#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

GRN21#

12V 16W

 1
81570C - SOCKET, CENTER STOP LAMP
90075-60059

GRN21#,KZN215

 1
