GRN215L-GKPZK (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

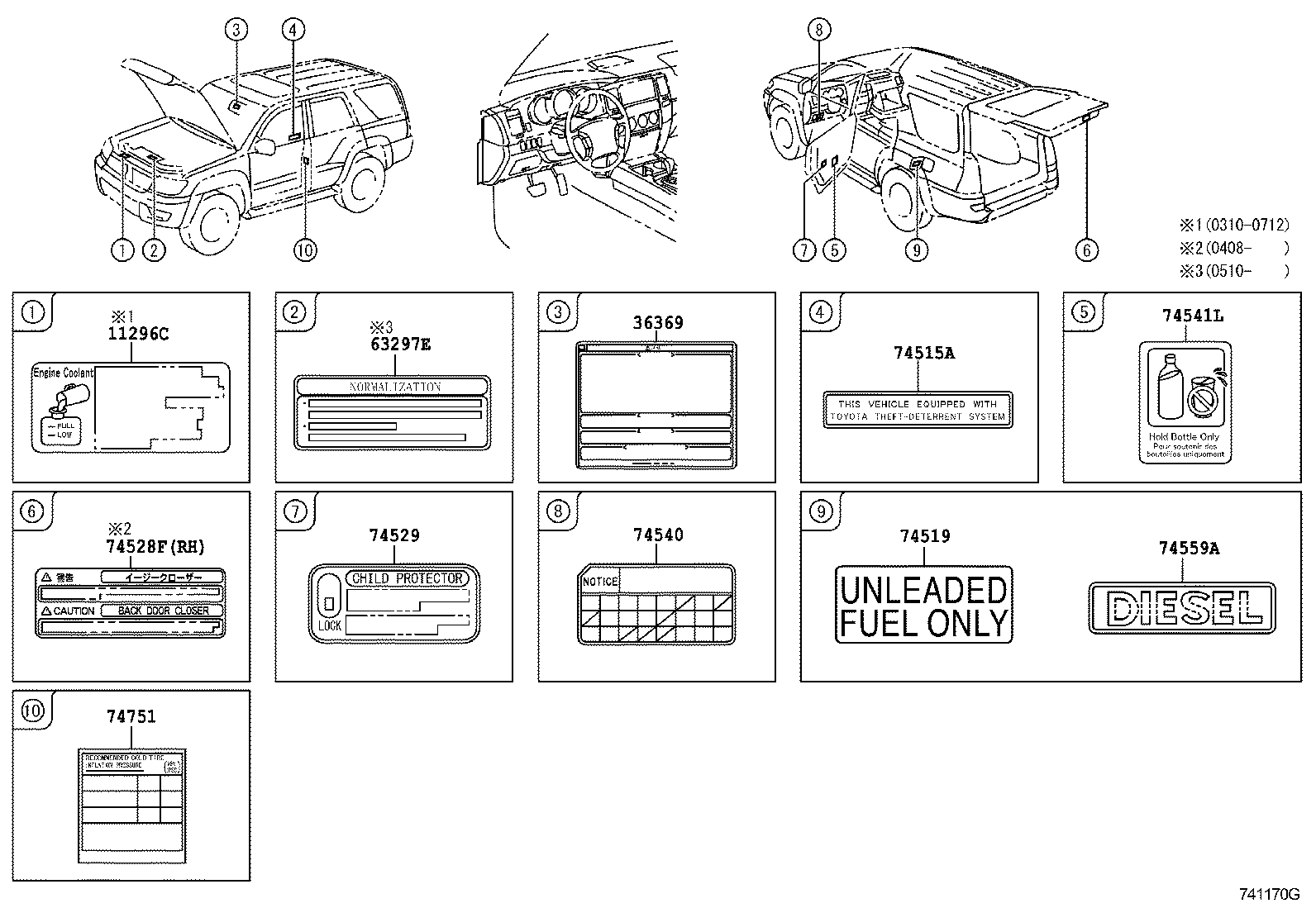

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 11296C 36369 63297E 74515A 74519 74528F 74529 74540 74541L 74559A 74751
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-34012

GRN215

 1
74515A - PLATE, THEFT WARNING
74515-14010

GRN215..LIMD

 1
74519 - PLATE, FUEL CAUTION
74559-14050

GRN21#

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

GRN21#

 2
74540 - PLATE, FUSE BLOCK CAUTION
82683-35160

GRN21#

 1
74541L - LABEL, BOTTLE HOLDER INFORMATION
74541-48020

GRN21#

 4
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-35620

GRN21#,KZN215

 1
