GRN215L-GKPZK (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

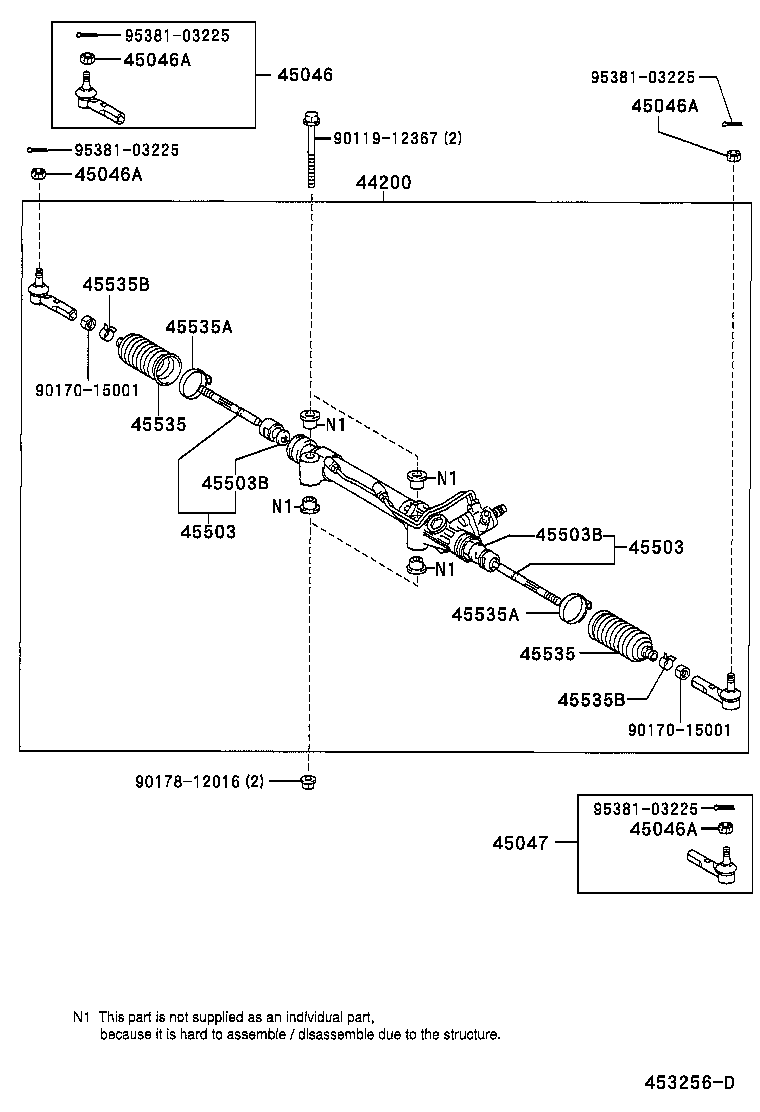

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 44200 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535 45535A 45535A 45535B 45535B 9011912367 9017015001 9017015001 9017812016 9538103225 9538103225 9538103225 9538103225
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-35060

GRN21#,KZN215

 1
44200-35061

GRN21#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-39505

GRN21#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GRN21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GRN21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GRN21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GRN21#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39505

GRN21#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39235

GRN21#,KZN215

 2
45503-39265

GRN21#,KZN215

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39235

GRN21#,KZN215

 2
45503-39265

GRN21#,KZN215

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-22001

GRN21#

OD=43

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-22001

GRN21#

OD=43

 2
45535 - BOOT, STEERING RACK, NO.1
45535-26030

GRN21#

 2
45535 - BOOT, STEERING RACK, NO.1
45535-26030

GRN21#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

GRN21#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

GRN21#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GRN21#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GRN21#

 2
Common parts
90119-12367
90170-15001
90178-12016
95381-03225

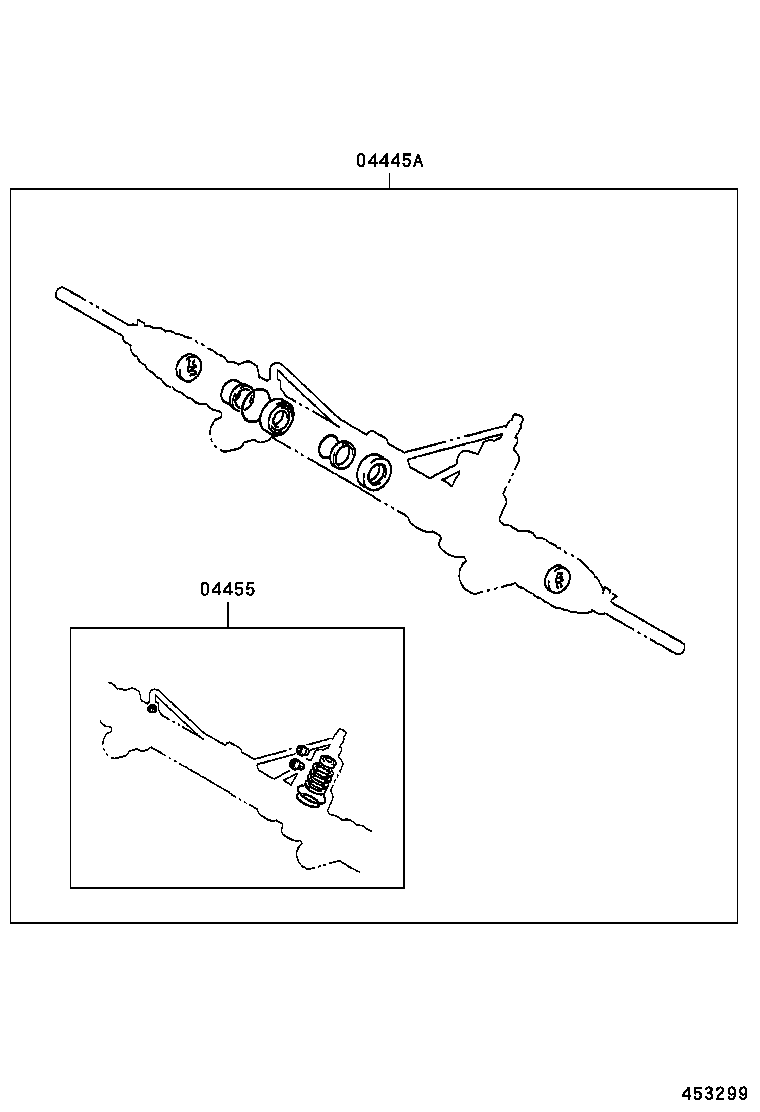

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-28091

GRN21#,KZN215

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-28061

GRN21#,KZN215

 1
