GRN215L-GKPZK (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

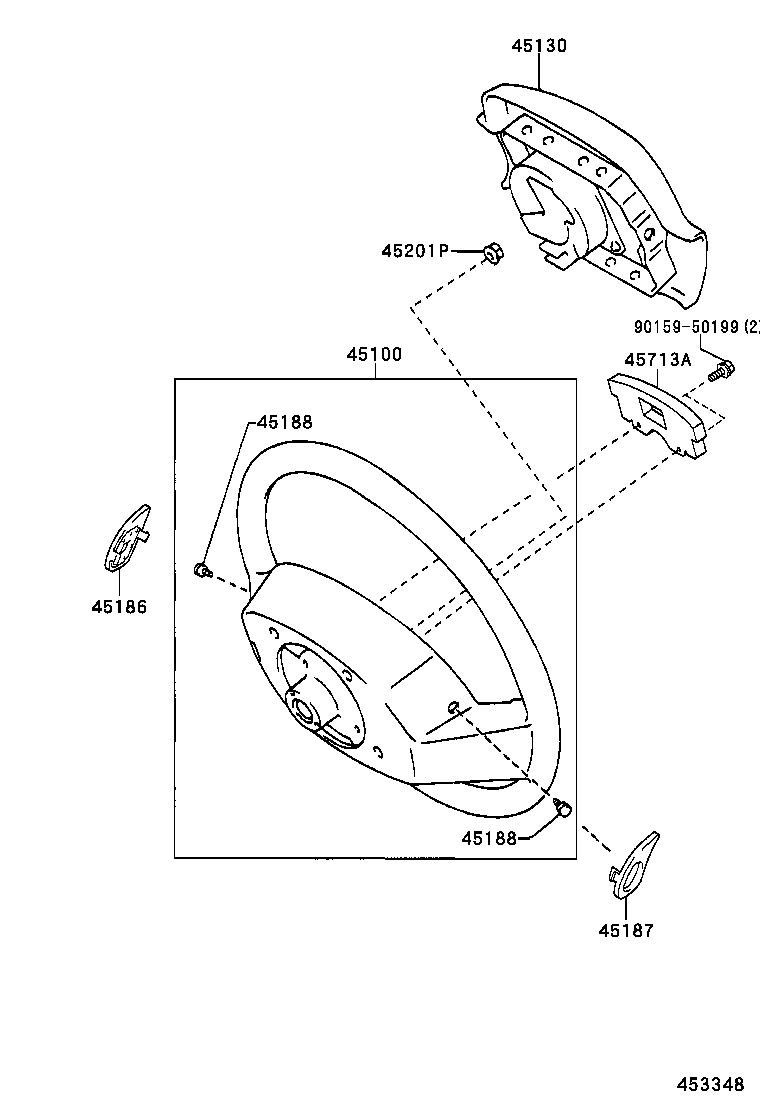

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45187 45188 45188 45201P 45713A 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0W170B0

GRN215..LIMD

4-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

 1
45130 - BUTTON ASSY, HORN
45130-35420B0

GRN21#,KZN215

DK.GRAY,TRIM1#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-58020B0

GRN21#

DK.GRAY,TRIM1#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-58010B0

GRN21#

DK.GRAY,TRIM1#,4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

GRN215..LIMD

L=18.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

GRN215..LIMD

L=18.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

GRN21#

 1
45713A - DAMPER, STEERING SHAKE
45713-35030

GRN21#

 1
Common parts
90159-50199
