GRN215L-GKPZK (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )GRN21#

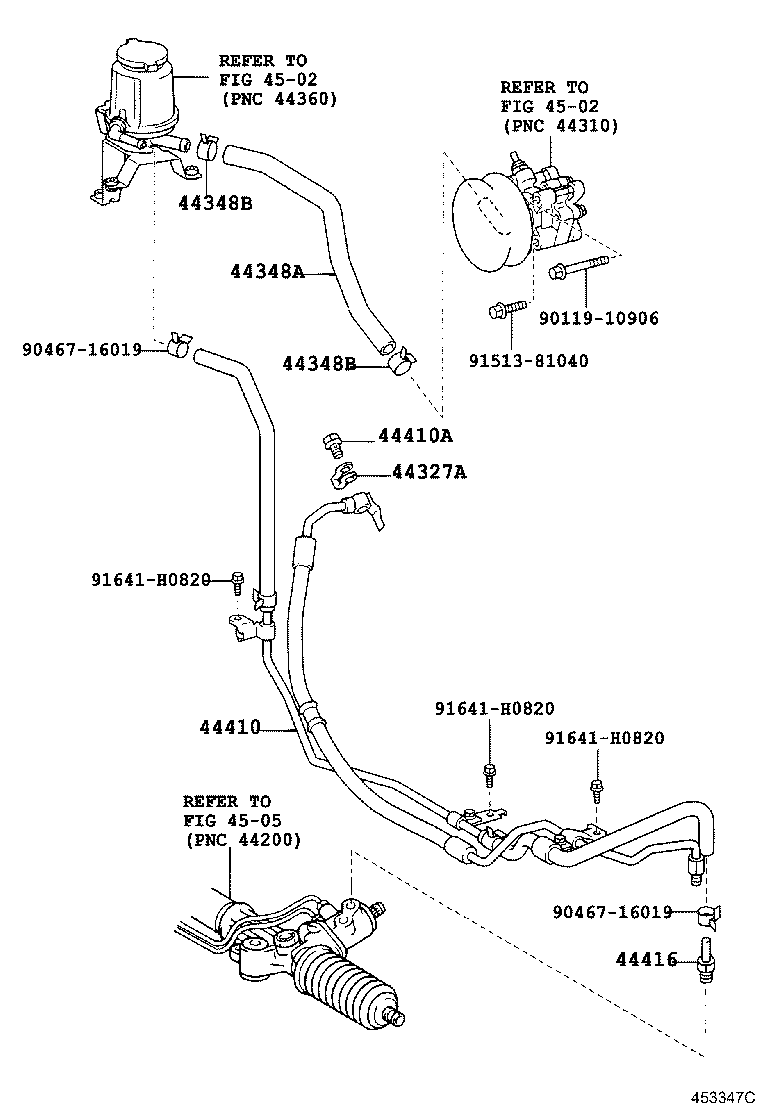

Click highlighted areas on diagram

diagram 44327A 44348A 44348B 44348B 44410 44410A 44416 4502 4502 4505 9011910906 9046716019 9046716019 9151381040 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

GRN21#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35280

GRN21#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010

GRN21#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21010

GRN21#

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-35690

GRN21#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

GRN21#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

GRN21#

 1
Common parts
90119-10906
90467-16019
91513-81040
91641-H0820
Linked diagrams
4502
4505
