GRN215L-GKPGK (2002)
Toyota 4runner

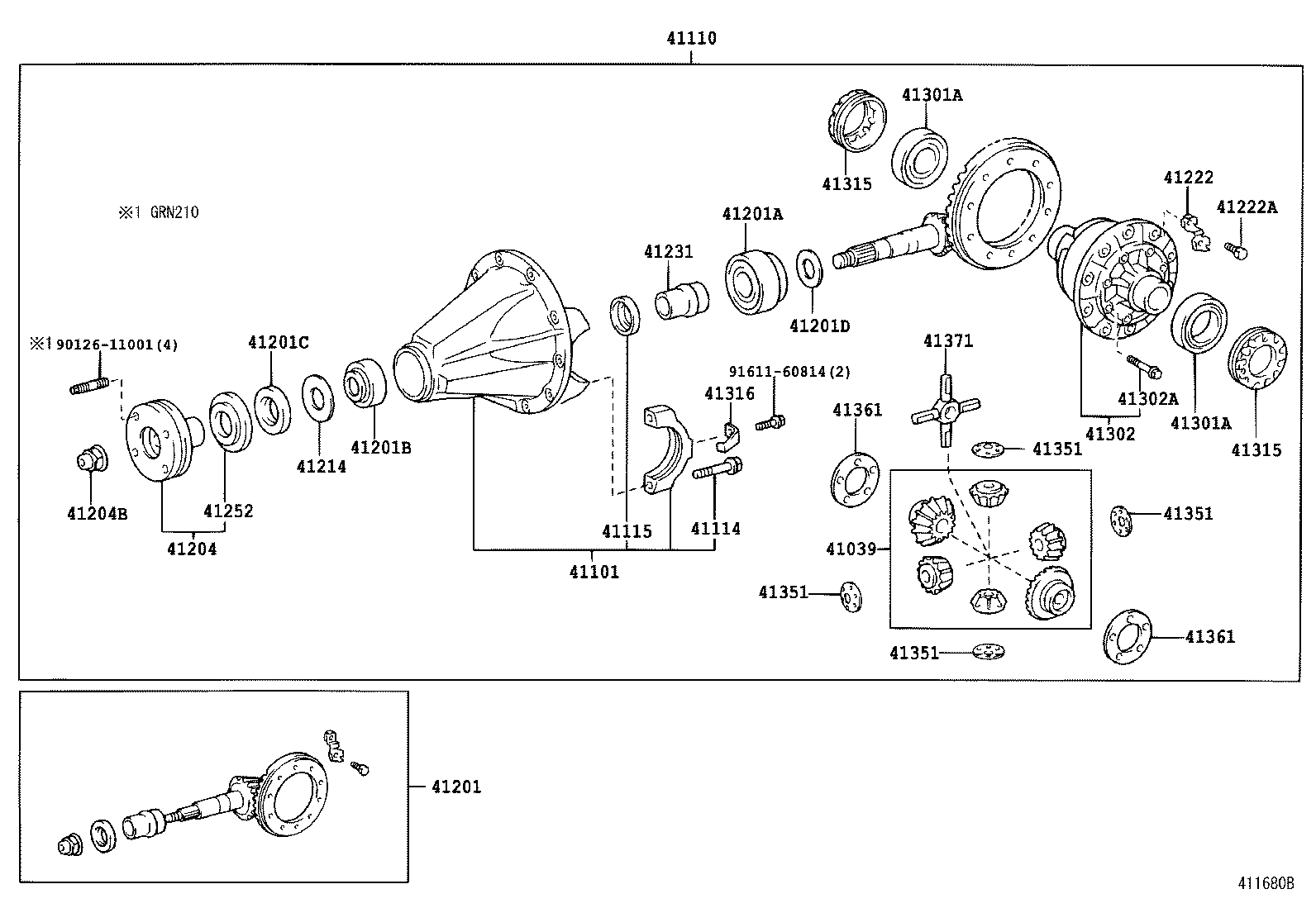

ILLUST NO. 1 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
GRN215 W/LSD |
1 | ||
| 41039-34080 |
GRN21# |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
GRN21# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D560 |
GRN215 *FGR=43:11=3.909 |
1 | ||
| 41110-3D380 |
GRN215 *FGR=43:11=3.909,W/LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
GRN21# |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
GRN21# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80177 |
GRN215 *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
GRN21# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
GRN21# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
GRN21# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
GRN21# OD=47,T=1.73 |
1 | ||
| 90201-35501 |
GRN21# OD=47,T=1.82 |
1 | ||
| 90201-35497 |
GRN21# OD=47,T=1.70 |
1 | ||
| 90201-35508 |
GRN21# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
GRN21# OD=47,T=2.06 |
1 | ||
| 90201-35500 |
GRN21# OD=47,T=1.79 |
1 | ||
| 90201-35504 |
GRN21# OD=47,T=1.91 |
1 | ||
| 90201-35505 |
GRN21# OD=47,T=1.94 |
1 | ||
| 90201-35503 |
GRN21# OD=47,T=1.88 |
1 | ||
| 90201-35502 |
GRN21# OD=47,T=1.85 |
1 | ||
| 90201-35515 |
GRN21# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35499 |
GRN21# OD=47,T=1.76 |
1 | ||
| 90201-35513 |
GRN21# OD=47,T=2.18 |
1 | ||
| 90201-35511 |
GRN21# OD=47,T=2.12 |
1 | ||
| 90201-35517 |
GRN21# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35516 |
GRN21# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
GRN21# OD=47,T=2.15 |
1 | ||
| 90201-35510 |
GRN21# OD=47,T=2.09 |
1 | ||
| 90201-35506 |
GRN21# OD=47,T=1.97 |
1 | ||
| 90201-35507 |
GRN21# OD=47,T=2.00 |
1 | ||
| 90201-35514 |
GRN21# OD=47,T=2.21 |
1 | ||
| 90201-35518 |
GRN21# OD=47,T=2.33,MARK 04 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35100 |
GRN215 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
GRN21# OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GRN21# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GRN21# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GRN21# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
GRN21# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
GRN215 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GRN21# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GRN21# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35040 |
GRN215 W/LSD |
1 | ||
| 41302-35020 |
GRN21# |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
GRN21# |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRN21# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRN21# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
GRN21# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRN21# T=0.9 |
2 | ||
| 41361-35290 |
GRN215,KZN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35160 |
GRN215,KZN215 T=1.8,W/LSD |
6 | ||
| 41361-35330 |
GRN21# T=1.1 |
2 | ||
| 41361-35350 |
GRN21# T=1.3 |
2 | ||
| 41361-35320 |
GRN21# T=1.0 |
2 | ||
| 41361-35161 |
GRN215 T=1.8,W/LSD |
6 | ||
| 41361-35291 |
GRN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35340 |
GRN21# T=1.2 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRN21# T=0.9 |
2 | ||
| 41361-35290 |
GRN215,KZN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35160 |
GRN215,KZN215 T=1.8,W/LSD |
6 | ||
| 41361-35330 |
GRN21# T=1.1 |
2 | ||
| 41361-35350 |
GRN21# T=1.3 |
2 | ||
| 41361-35320 |
GRN21# T=1.0 |
2 | ||
| 41361-35161 |
GRN215 T=1.8,W/LSD |
6 | ||
| 41361-35291 |
GRN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35340 |
GRN21# T=1.2 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
GRN215 W/LSD |
1 | ||
| 41371-35020 |
GRN21# |
1 | ||
| Common parts | ||||
| 90126-11001 | ||||
| 91611-60814 | ||||

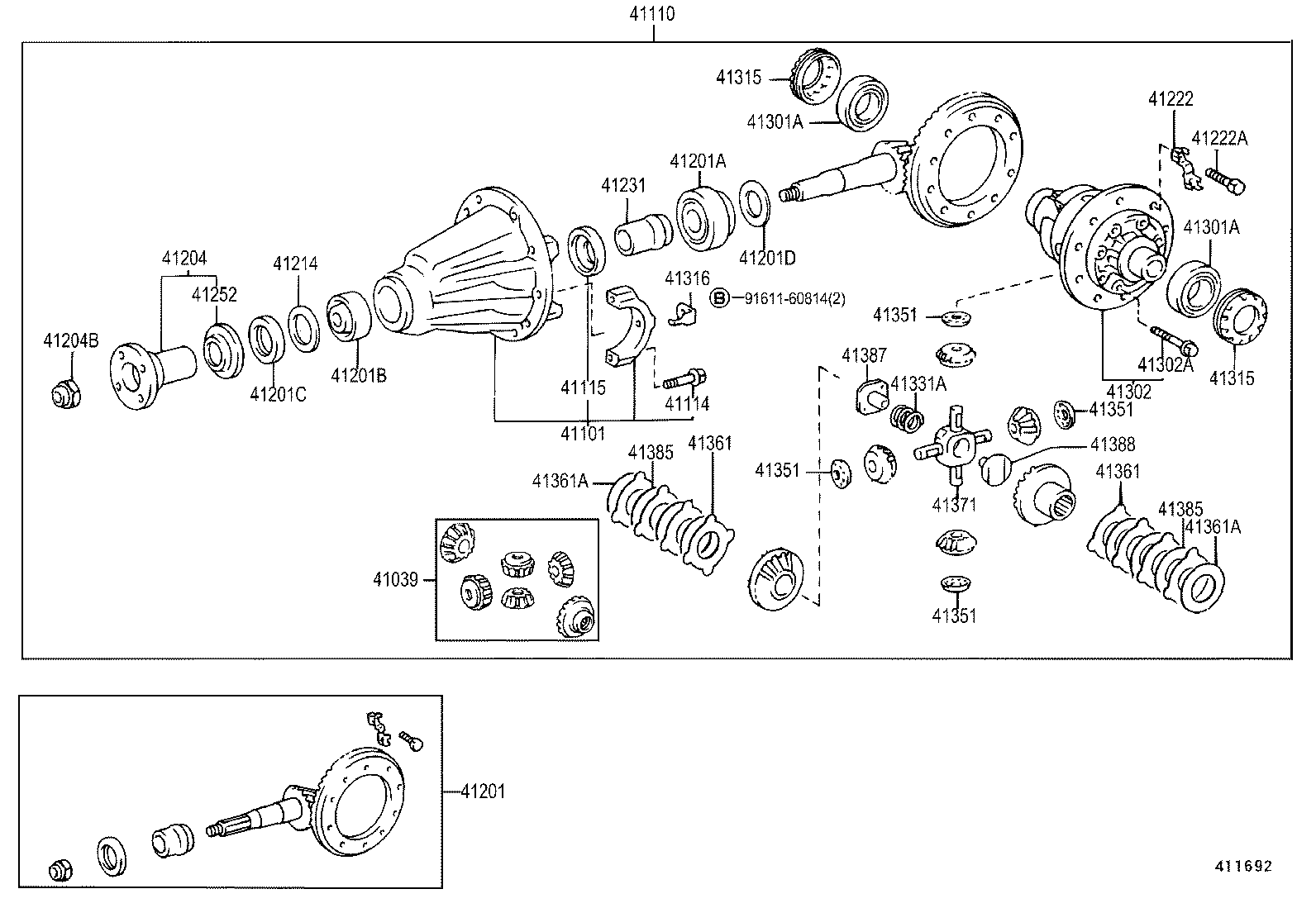

ILLUST NO. 1 OF 2(0211- )GRN215,KZN215
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
GRN215 W/LSD |
1 | ||
| 41039-34080 |
GRN21# |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
GRN21# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D560 |
GRN215 *FGR=43:11=3.909 |
1 | ||
| 41110-3D380 |
GRN215 *FGR=43:11=3.909,W/LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
GRN21# |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
GRN21# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80177 |
GRN215 *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
GRN21# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
GRN21# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
GRN21# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
GRN21# OD=47,T=1.73 |
1 | ||
| 90201-35501 |
GRN21# OD=47,T=1.82 |
1 | ||
| 90201-35497 |
GRN21# OD=47,T=1.70 |
1 | ||
| 90201-35508 |
GRN21# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
GRN21# OD=47,T=2.06 |
1 | ||
| 90201-35500 |
GRN21# OD=47,T=1.79 |
1 | ||
| 90201-35504 |
GRN21# OD=47,T=1.91 |
1 | ||
| 90201-35505 |
GRN21# OD=47,T=1.94 |
1 | ||
| 90201-35503 |
GRN21# OD=47,T=1.88 |
1 | ||
| 90201-35502 |
GRN21# OD=47,T=1.85 |
1 | ||
| 90201-35515 |
GRN21# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35499 |
GRN21# OD=47,T=1.76 |
1 | ||
| 90201-35513 |
GRN21# OD=47,T=2.18 |
1 | ||
| 90201-35511 |
GRN21# OD=47,T=2.12 |
1 | ||
| 90201-35517 |
GRN21# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35516 |
GRN21# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
GRN21# OD=47,T=2.15 |
1 | ||
| 90201-35510 |
GRN21# OD=47,T=2.09 |
1 | ||
| 90201-35506 |
GRN21# OD=47,T=1.97 |
1 | ||
| 90201-35507 |
GRN21# OD=47,T=2.00 |
1 | ||
| 90201-35514 |
GRN21# OD=47,T=2.21 |
1 | ||
| 90201-35518 |
GRN21# OD=47,T=2.33,MARK 04 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35100 |
GRN215 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
GRN21# OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
GRN21# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GRN21# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GRN21# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
GRN21# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
GRN215 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GRN21# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GRN21# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35040 |
GRN215 W/LSD |
1 | ||
| 41302-35020 |
GRN21# |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
GRN21# |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRN21# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GRN21# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
GRN21# |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-65003 |
GRN215 W/LSD |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GRN21# |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRN21# T=0.9 |
2 | ||
| 41361-35290 |
GRN215,KZN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35160 |
GRN215,KZN215 T=1.8,W/LSD |
6 | ||
| 41361-35330 |
GRN21# T=1.1 |
2 | ||
| 41361-35350 |
GRN21# T=1.3 |
2 | ||
| 41361-35320 |
GRN21# T=1.0 |
2 | ||
| 41361-35161 |
GRN215 T=1.8,W/LSD |
6 | ||
| 41361-35291 |
GRN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35340 |
GRN21# T=1.2 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GRN21# T=0.9 |
2 | ||
| 41361-35290 |
GRN215,KZN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35160 |
GRN215,KZN215 T=1.8,W/LSD |
6 | ||
| 41361-35330 |
GRN21# T=1.1 |
2 | ||
| 41361-35350 |
GRN21# T=1.3 |
2 | ||
| 41361-35320 |
GRN21# T=1.0 |
2 | ||
| 41361-35161 |
GRN215 T=1.8,W/LSD |
6 | ||
| 41361-35291 |
GRN215 T=1.70,MARK N,W/LSD |
2 | ||
| 41361-35340 |
GRN21# T=1.2 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50003 |
GRN215 T=0.25,W/LSD |
1 | ||
| 90564-50005 |
GRN215 T=0.35,W/LSD |
1 | ||
| 90564-50004 |
GRN215 T=0.30,W/LSD |
1 | ||
| 90564-50002 |
GRN215 T=0.20,W/LSD |
1 | ||
| 90564-50001 |
GRN215 T=0.15,W/LSD |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50003 |
GRN215 T=0.25,W/LSD |
1 | ||
| 90564-50005 |
GRN215 T=0.35,W/LSD |
1 | ||
| 90564-50004 |
GRN215 T=0.30,W/LSD |
1 | ||
| 90564-50002 |
GRN215 T=0.20,W/LSD |
1 | ||
| 90564-50001 |
GRN215 T=0.15,W/LSD |
1 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
GRN215 W/LSD |
1 | ||
| 41371-35020 |
GRN21# |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-35010 |
GRN215 W/LSD |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-35010 |
GRN215 W/LSD |
6 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41308-35010 |
GRN215 W/LSD |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35020 |
GRN215 W/LSD |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||

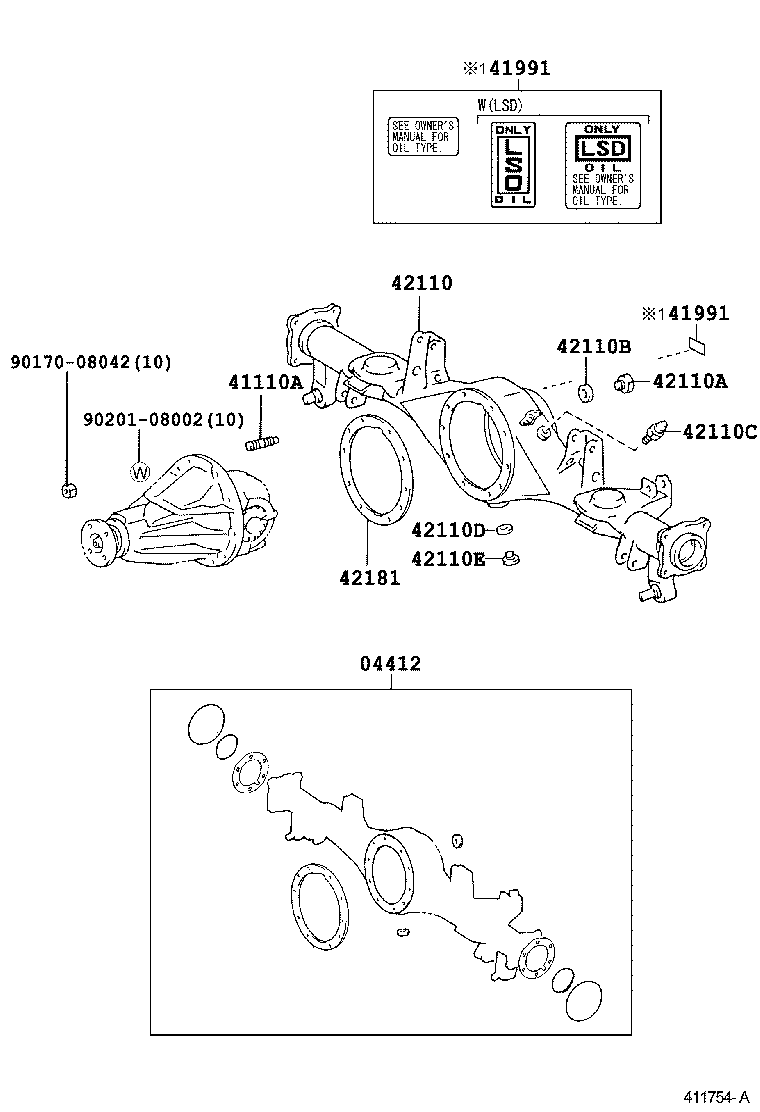

ILLUST NO. 2 OF 2(0211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60270 |
GRN21#,KZN215 |
1 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-22010 |
GRN215 W/LSD |
1 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-22010 |
GRN215 W/LSD |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60860 |
GRN21# |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GRN21# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GRN21# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
GRN21# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GRN21# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GRN21# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60120 |
GRN21# |
1 | ||
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
