GRN215L-GKAGK (2005)

Toyota 4runner

Production Aug 2005 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

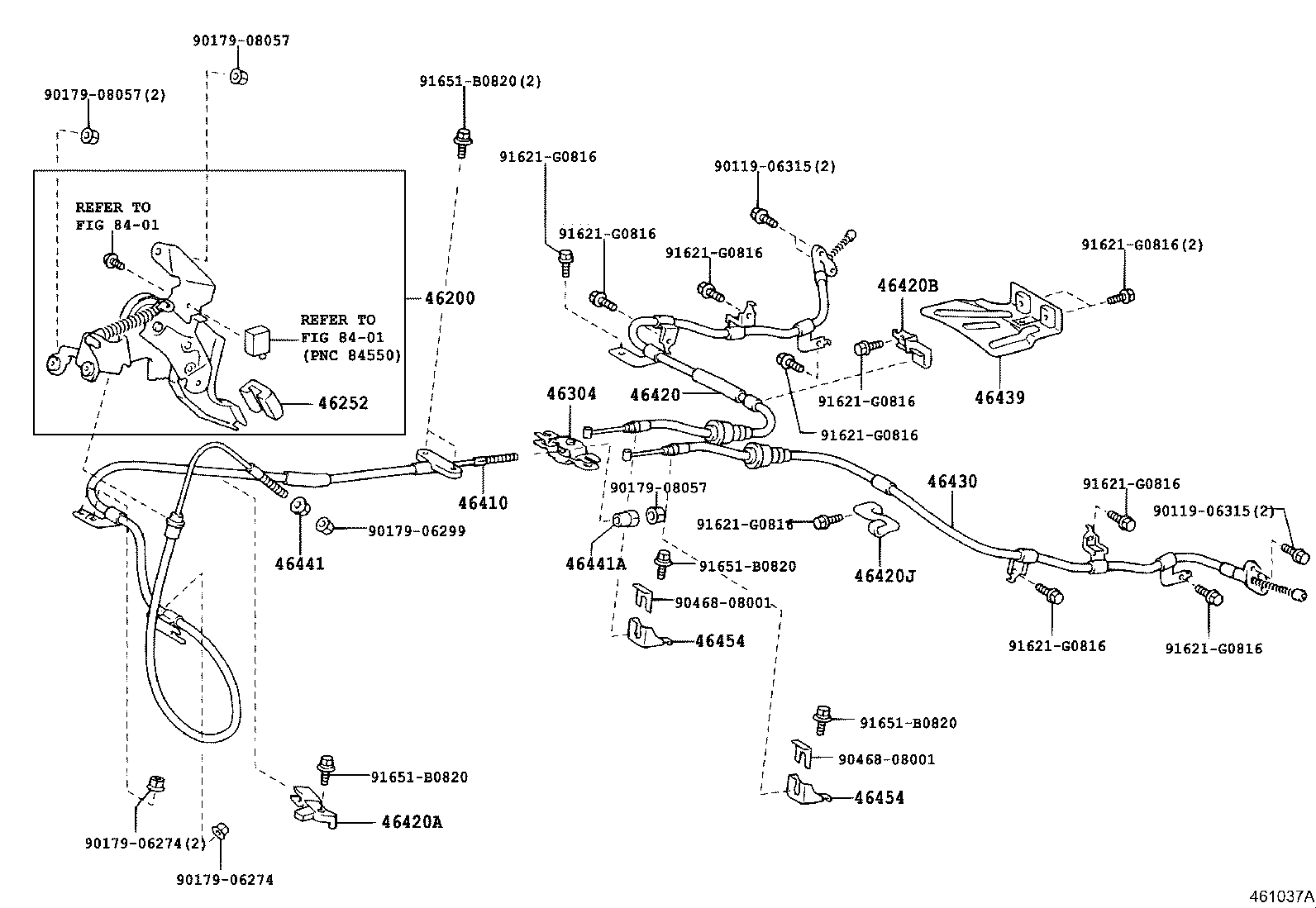

ILLUST NO. 1 OF 2(0211-0802)

Click highlighted areas on diagram

diagram 46200 46252 46304 46410 46420 46420A 46420B 46420J 46430 46439 46441 46441A 46454 46454 8401 8401 9011906315 9011906315 9017906274 9017906274 9017906299 9017908057 9017908057 9017908057 9046808001 9046808001 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-35010

KZN215;GRN21#..5FC

 1
46200-35010

GRN21#

 1
46210-35040

GRN21#

 1
46200-35010

GRN21#

 1
46252 - PAD, PARKING PEDAL
46252-52010

GRN21#

 1
46252-52010

KZN215;GRN21#..5FC

 1
46252-52010

GRN21#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-17020

GRN21#

 1
46304-17020

GRN21#

 1
46304-17020

KZN215;GRN21#..5FC

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-3D080

GRN21#

 1
46410-3D080

GRN21#

 1
46410-3D080

KZN215;GRN21#..5FC

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35760

GRN21#

 1
46420-35760

GRN21#

 1
46420-35760

KZN215;GRN21#..5FC

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-35080

GRN21#

 1
46411-35080

KZN215;GRN21#..5FC

 1
46411-35080

GRN21#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46421-35020

KZN215;GRN21#..5FC

 1
46421-35020

GRN21#

 1
46421-35020

GRN21#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46431-35020

GRN21#

 1
46431-35020

GRN21#

 1
46431-35020

KZN215;GRN21#..5FC

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35550

GRN21#

 1
46430-35550

GRN21#

 1
46430-35550

KZN215;GRN21#..5FC

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-35060

GRN21#

 1
46439-35060

GRN21#

 1
46439-35060

KZN215;GRN21#..5FC

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

GRN21#

 1
46441-12010

GRN21#

 1
46441-12010

KZN215;GRN21#..5FC

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-35020

KZN215;GRN21#..5FC

 1
46441-35020

GRN21#

 1
46441-35020

GRN21#

 1
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35180

KZN215;GRN21#..5FC

 2
46454-35180

GRN21#

 2
46454-35180

GRN21#

 2
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35180

KZN215;GRN21#..5FC

 2
46454-35180

GRN21#

 2
46454-35180

GRN21#

 2
Common parts
90119-06315
90179-06274
90179-06299
90179-08057
90468-08001
91621-G0816
91651-B0820
Linked diagrams
8401

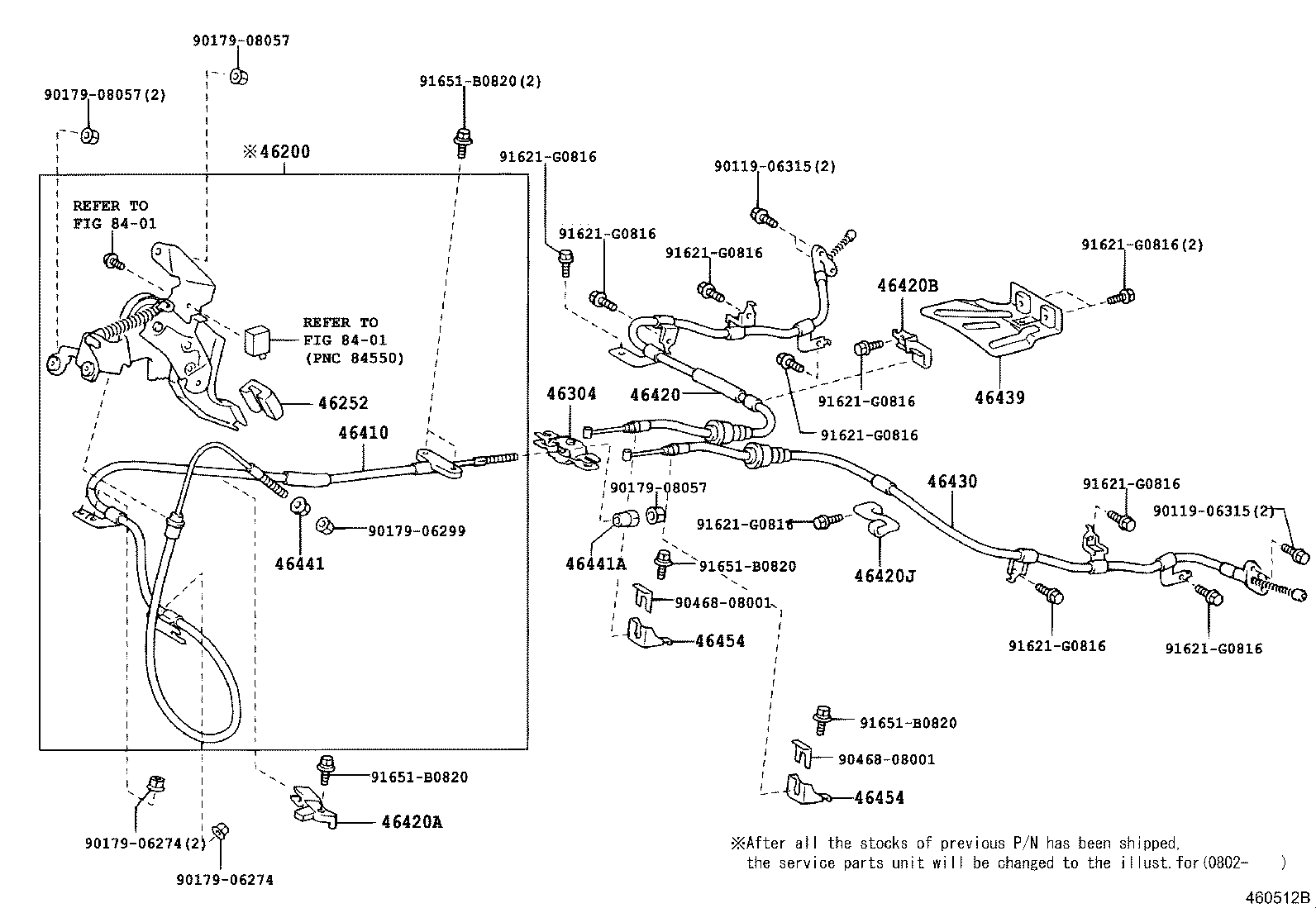

ILLUST NO. 1 OF 2(0802- )

Click highlighted areas on diagram

diagram 46200 46252 46304 46410 46420 46420A 46420B 46420J 46430 46439 46441 46441A 46454 46454 8401 8401 9011906315 9011906315 9017906274 9017906274 9017906299 9017908057 9017908057 9017908057 9046808001 9046808001 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91651B0820 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-35010

KZN215;GRN21#..5FC

 1
46200-35010

GRN21#

 1
46210-35040

GRN21#

 1
46200-35010

GRN21#

 1
46252 - PAD, PARKING PEDAL
46252-52010

GRN21#

 1
46252-52010

KZN215;GRN21#..5FC

 1
46252-52010

GRN21#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-17020

GRN21#

 1
46304-17020

GRN21#

 1
46304-17020

KZN215;GRN21#..5FC

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-3D080

GRN21#

 1
46410-3D080

GRN21#

 1
46410-3D080

KZN215;GRN21#..5FC

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35760

GRN21#

 1
46420-35760

GRN21#

 1
46420-35760

KZN215;GRN21#..5FC

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-35080

GRN21#

 1
46411-35080

KZN215;GRN21#..5FC

 1
46411-35080

GRN21#

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46421-35020

KZN215;GRN21#..5FC

 1
46421-35020

GRN21#

 1
46421-35020

GRN21#

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46431-35020

GRN21#

 1
46431-35020

GRN21#

 1
46431-35020

KZN215;GRN21#..5FC

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35550

GRN21#

 1
46430-35550

GRN21#

 1
46430-35550

KZN215;GRN21#..5FC

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-35060

GRN21#

 1
46439-35060

GRN21#

 1
46439-35060

KZN215;GRN21#..5FC

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

GRN21#

 1
46441-12010

GRN21#

 1
46441-12010

KZN215;GRN21#..5FC

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-35020

KZN215;GRN21#..5FC

 1
46441-35020

GRN21#

 1
46441-35020

GRN21#

 1
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35180

KZN215;GRN21#..5FC

 2
46454-35180

GRN21#

 2
46454-35180

GRN21#

 2
46454 - BRACKET, CABLE RETAINER, FRONT
46454-35180

KZN215;GRN21#..5FC

 2
46454-35180

GRN21#

 2
46454-35180

GRN21#

 2
Common parts
90119-06315
90179-06274
90179-06299
90179-08057
90468-08001
91621-G0816
91651-B0820
Linked diagrams
8401
