GRN210L-GKPGK (2002)
Toyota 4runner

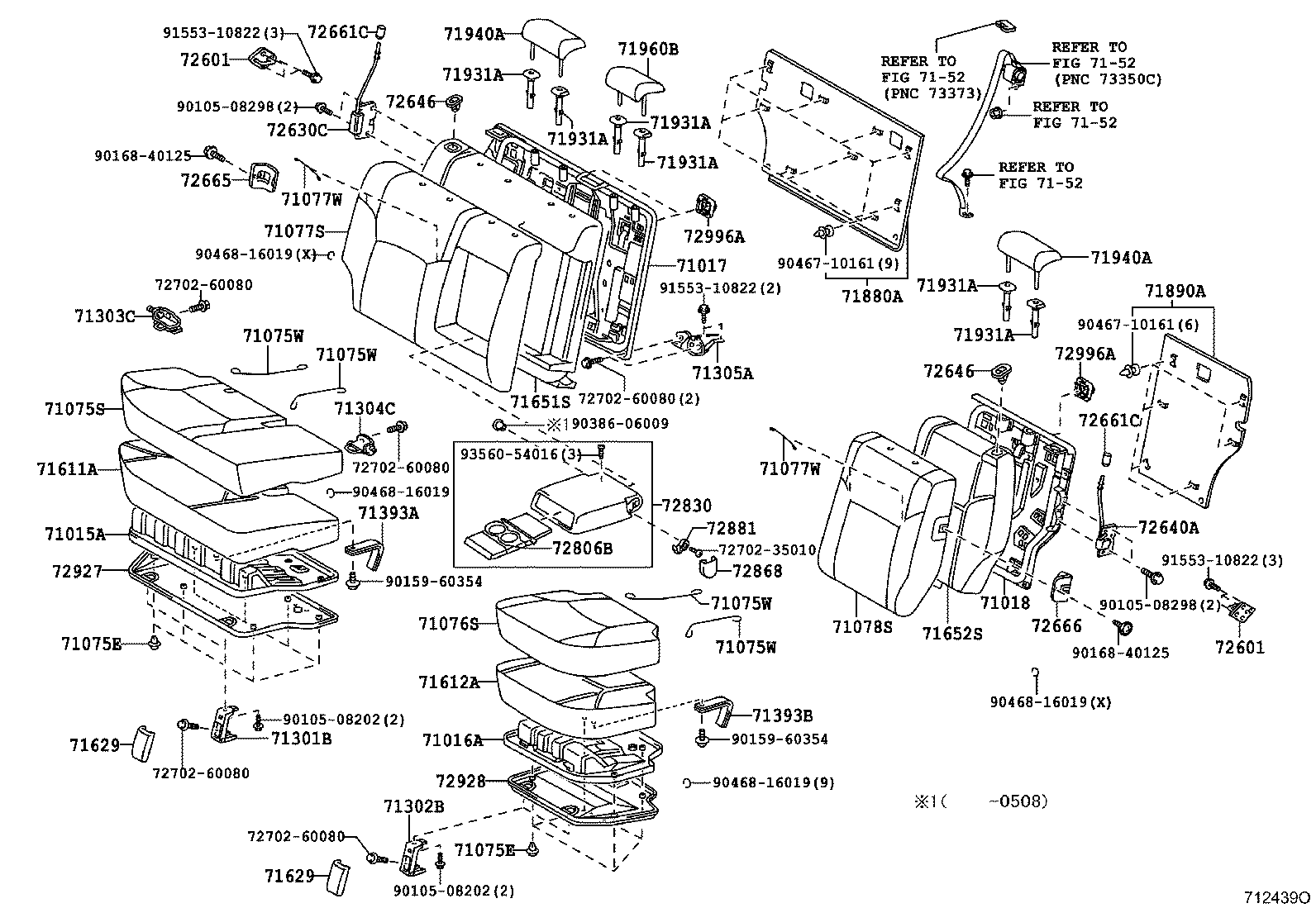

ILLUST NO. 3 OF 3(0211- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-35080 |
GRN21#,KZN215 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-35050 |
GRN21#,KZN215 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-35170 |
GRN21#,KZN215..4FC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-35110 |
GRN21#,KZN215..4FC |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010B2 |
GRN21#,KZN215 STONE,TRIM1# |
12 | ||
| 71769-60010E1 |
GRN21#,KZN215 FAWN,TRIM4# |
12 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010B2 |
GRN21#,KZN215 STONE,TRIM1# |
12 | ||
| 71769-60010E1 |
GRN21#,KZN215 FAWN,TRIM4# |
12 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-35880E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 71075-35880B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
GRN21#,KZN215 |
4 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
GRN21#,KZN215 |
4 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
GRN21#,KZN215 |
4 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
GRN21#,KZN215 |
4 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-35490B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 71076-35490E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3D460B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 71077-3D460E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71293-35030 |
GRN21#,KZN215..4FC |
4 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71293-35030 |
GRN21#,KZN215..4FC |
4 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-35690B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 71078-35690E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-35040 |
GRN21#,KZN215 INNER |
1 | ||
| 71301-35050 |
GRN21#,KZN215 OUTER |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-35040 |
GRN21#,KZN215 INNER |
1 | ||
| 71301-35050 |
GRN21#,KZN215 OUTER |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-35020 |
GRN21# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-35020 |
GRN21# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-35060 |
GRN21#,KZN215 |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-35020E0 |
GRN21#,KZN215 FAWN,TRIM4# |
1 | ||
| 71393-35020B0 |
GRN21#,KZN215 GRAY,TRIM1# |
1 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-35020E0 |
GRN21#,KZN215 FAWN,TRIM4# |
1 | ||
| 71393-35020B0 |
GRN21#,KZN215 GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-35070 |
GRN21#,KZN215 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-35030 |
GRN21#,KZN215 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35030B0 |
GRN21#,KZN215 STONE,TRIM1# |
4 | ||
| 71629-35030E0 |
GRN21#,KZN215 FAWN,TRIM4# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35030B0 |
GRN21#,KZN215 STONE,TRIM1# |
4 | ||
| 71629-35030E0 |
GRN21#,KZN215 FAWN,TRIM4# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-35060 |
GRN21#,KZN215..4FC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-35040 |
GRN21#,KZN215..4FC |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-35010E0 |
GRN21# FAWN,TRIM4# |
1 | ||
| 71880-35010B0 |
GRN21# STONE,TRIM1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-35010B0 |
GRN21# STONE,TRIM1# |
1 | ||
| 71890-35010E0 |
GRN21# FAWN,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
3 | ||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35420B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
2 | ||
| 71940-35420E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35420B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
2 | ||
| 71940-35420E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-35010B0 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 71960-35010E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35020 |
GRN21# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35020 |
GRN21# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-35040 |
GRN21#,KZN215..4FC |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-35040 |
GRN21#,KZN215..4FC |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B5 |
GRN21#,KZN215..4FC STONE,TRIM1# |
2 | ||
| 72646-33020E1 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B5 |
GRN21#,KZN215..4FC STONE,TRIM1# |
2 | ||
| 72646-33020E1 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
2 | ||
| 72661-35010B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
2 | ||
| 72661-35010B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-35020B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
1 | ||
| 72665-35020E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-35020E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
1 | ||
| 72665-35020B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-35010B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
1 | ||
| 72806-35010E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-35040E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 72830-35040B0 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-35010B1 |
GRN21#,KZN215..4FC STONE,TRIM1# |
1 | ||
| 72868-35010E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
1 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-35010 |
GRN21#,KZN215..4FC |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-35030B0 |
GRN21#,KZN215 STONE,TRIM1# |
1 | ||
| 72927-35030E0 |
GRN21#,KZN215 FAWN,TRIM4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-35030E0 |
GRN21#,KZN215 FAWN,TRIM4# |
1 | ||
| 72928-35030B0 |
GRN21#,KZN215 STONE,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-35040B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
3 | ||
| 72996-35040E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
3 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-35040B0 |
GRN21#,KZN215..4FC STONE,TRIM1# |
3 | ||
| 72996-35040E0 |
GRN21#,KZN215..4FC FAWN,TRIM4# |
3 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 72702-60080 | ||||
| 90105-08202 | ||||
| 90105-08298 | ||||
| 90159-60354 | ||||
| 90168-40125 | ||||
| 90386-06009 | ||||
| 90467-10161 | ||||
| 90468-16019 | ||||
| 91553-10822 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7152 | ||||

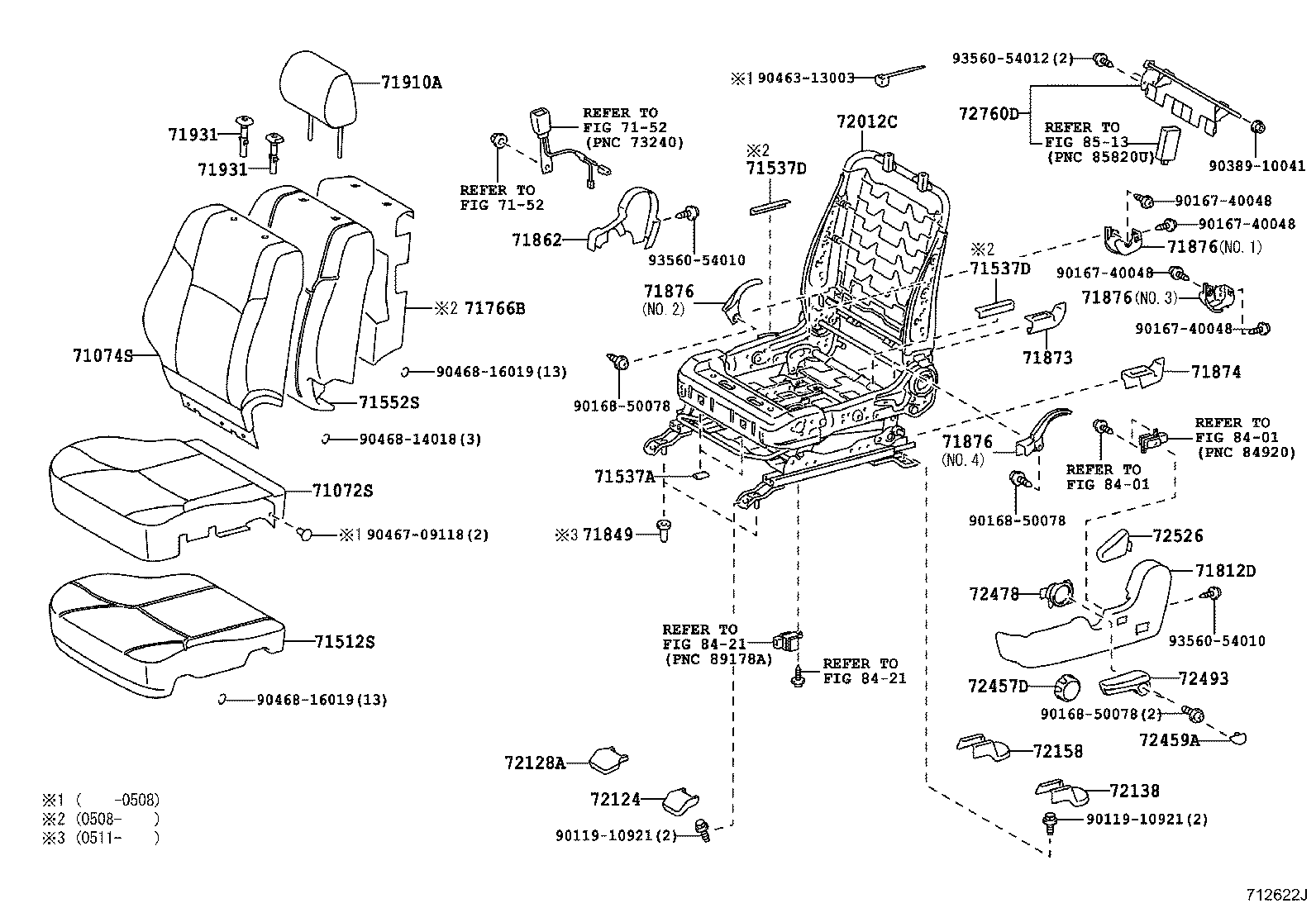

ILLUST NO. 1 OF 3(0211- )SR5
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35200E1 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71072-35200B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71073-3G220E1 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35100 |
GRN21#,KZN215..4FC..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,KZN215..4FC |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-35100 |
GRN21#,KZN215..SR5 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35180B0 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71812-35180E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71862-60110E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
GRN21#,KZN215..4FC..SR5 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GRN21#,KZN215..4FC..SR5 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
2 | ||
| 71910-35700B0 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
2 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
2 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35030 |
GRN21#,KZN215..SR5 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72124-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128-35010B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 72457-58010B1 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60010B1 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 72459-60010E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GRN21#,KZN215..4FC..SR5 |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60010E0 |
GRN21#,KZN215..SR5 FAWN,TRIM4# |
1 | ||
| 72493-60010B1 |
GRN21#,KZN215..SR5 STONE,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 72526-60070B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60050 |
GRN21#,KZN215..SR5 |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||

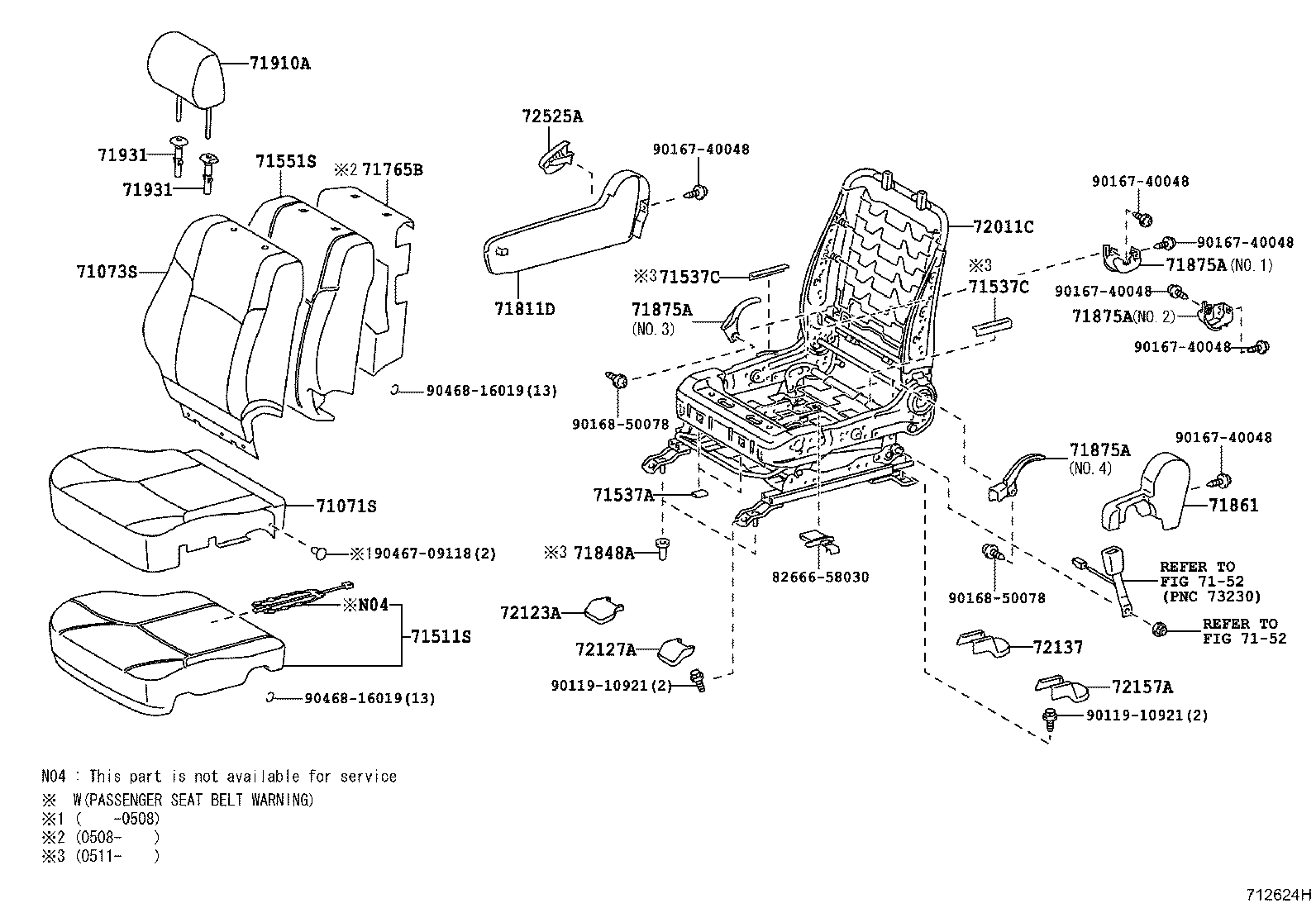

ILLUST NO. 2 OF 3(0211- )SR5
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G300E1 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71071-3G300B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G220B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71073-3G220E1 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-35090 |
GRN21#,KZN215..4FC..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,KZN215..4FC |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35100 |
GRN21#,KZN215 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B0 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71811-35130E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71861-60100B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.2 |
1 | ||
| 71876-60160B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
GRN21#,KZN215..SR5 BLACK,NO.3 |
1 | ||
| 71876-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
2 | ||
| 71910-35700B0 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
2 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W(BUTTON),STONE,TRIM1# |
2 | ||
| 71931-42020B3 |
GRN21#,KZN215..4FC W(LOCK)&W/O(BUTTON),STONE,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35210 |
GRN21#,KZN215..SR5 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72123-35010B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72127-35010B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B2 |
GRN21#,KZN215..4FC..SR5 STONE,TRIM1# |
1 | ||
| 72525-60100E0 |
GRN21#,KZN215..4FC..SR5 FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
