GRN210L-GKAGK (2005)

Toyota 4runner

Production Aug 2005 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

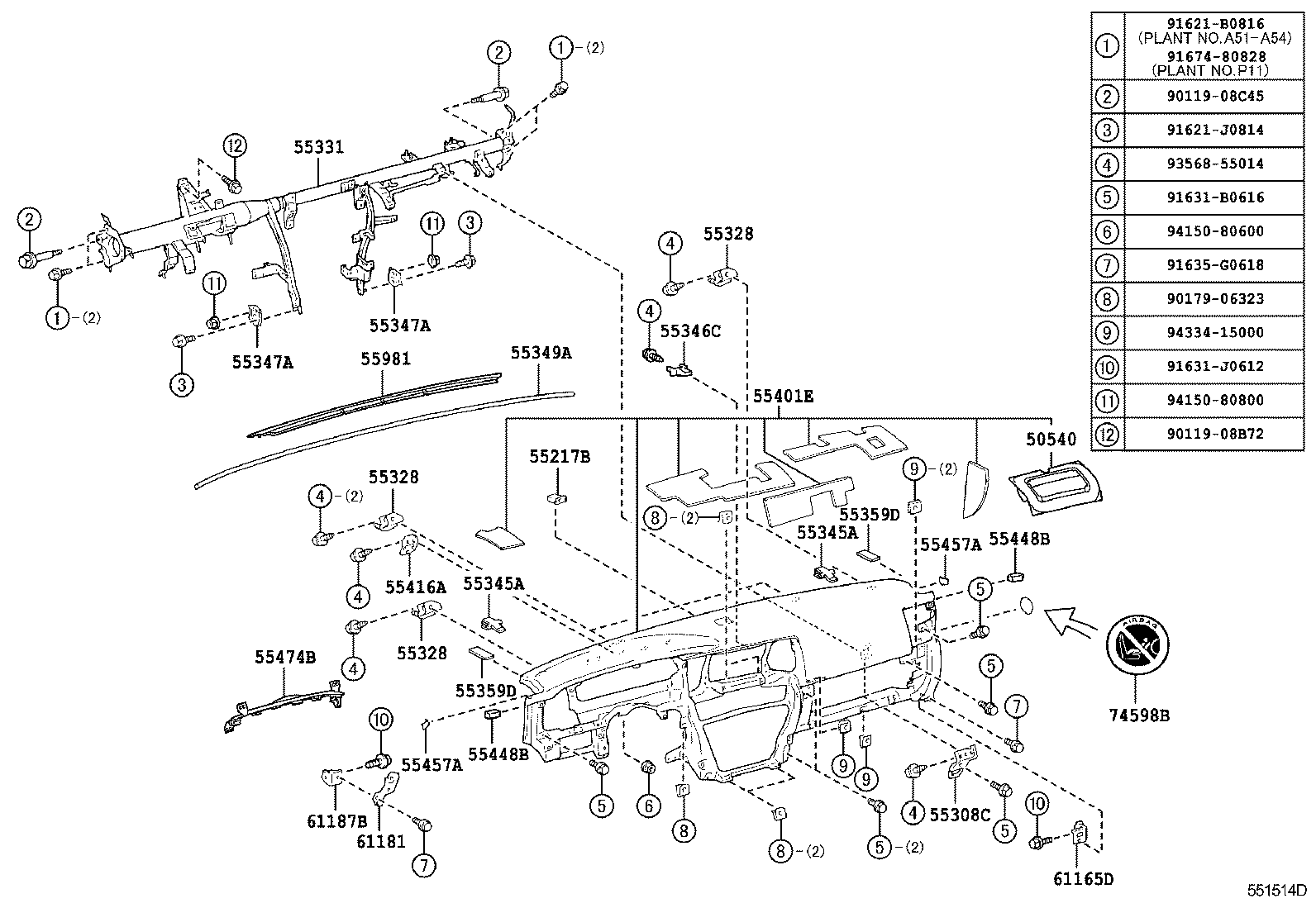

ILLUST NO. 1 OF 2(0508-0605)

Click highlighted areas on diagram

diagram 50540 55217B 55308C 55328 55328 55328 55331 55345A 55345A 55346C 55347A 55347A 55349A 55359D 55359D 55401E 55416A 55448B 55448B 55457A 55457A 55474B 55981 61165D 61181 61187B 74598B 9011908B72 9011908C45 9017906323 91621B0816 91621J0814 91631B0616 91631J0612 91635G0618 9167480828 9356855014 9415080600 9415080800 9433415000
Part # Description Qty Price
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-35050

GRN21#,KZN215

 1
50540-35070

GRN21#

 1
55217B - RETAINER, DASH PANEL SILENCER
55217-35020

GRN21#,KZN215

 5
55217-35020

GRN21#

 5
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-35050

GRN21#

 1
55308-35030

GRN21#

 1
55308-35030

KZN215;GRN21#..5FC

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35060

GRN21#

 4
55328-35030

GRN21#,KZN215

NO.1

 2
55328-35050

GRN21#,KZN215

NO.2

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35060

GRN21#

 4
55328-35030

GRN21#,KZN215

NO.1

 2
55328-35050

GRN21#,KZN215

NO.2

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35060

GRN21#

 4
55328-35030

GRN21#,KZN215

NO.1

 2
55328-35050

GRN21#,KZN215

NO.2

 2
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-35140

GRN21#

 1
55330-35160

GRN21#

 1
55330-35140

KZN215;GRN21#..5FC

 1
55330-35190

GRN21#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-35020

GRN21#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-35020

GRN21#

 1
55346C - PIN, INSTRUMENT PANEL
55346-35010

GRN21#

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-35050

GRN21#

 2
55347-35050

KZN215;GRN21#..5FC

 2
55347-35050

GRN21#

 2
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-35050

GRN21#

 2
55347-35050

KZN215;GRN21#..5FC

 2
55347-35050

GRN21#

 2
55349A - CUSHION, INSTRUMENT PANEL
55349-35040

GRN21#,KZN215

 1
55349-35040

GRN21#

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-35020

GRN21#,KZN215

 2
55359-35020

GRN21#

 2
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-35020

GRN21#,KZN215

 2
55359-35020

GRN21#

 2
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-35900B1

GRN21#,KZN215

FAWN,TRIM4#

 1
55401-35070B1

GRN21#

FAWN,TRIM4#

 1
55401-35900B0

GRN21#,KZN215

STONE,TRIM1#

 1
55401-35070B0

GRN21#

STONE,TRIM12

 1
55401-35912B1

GRN21#

FAWN,TRIM42

 1
55401-35912B0

GRN21#

STONE,TRIM1#

 1
55416A - RETAINER, METER HOOD, NO.1
55416-35010

GRN21#

 1
55416-35010

GRN21#

 1
55416-35010

KZN215;GRN21#..5FC

 1
55448B - COVER, OIL RESERVOIR TANK, RH
55448-35020

GRN21#

 2
55448B - COVER, OIL RESERVOIR TANK, RH
55448-35020

GRN21#

 2
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-35010

GRN21#

 2
55457-35010

GRN21#,KZN215

 2
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-35010

GRN21#

 2
55457-35010

GRN21#,KZN215

 2
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55474-35020B1

GRN21#

DK.GRAY,TRIM1#,4#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-35010B1

GRN21#

DK.GRAY,TRIM1#,4#

 1
61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE
61165-35020

GRN21#,KZN215

 1
61165-35020

GRN21#

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
61181-35030

GRN21#,KZN215

 1
61181-35030

GRN21#

 1
61187B - BRACKET, INSTRUMENT PANEL SIDE, NO.4
61187-35010

GRN21#

 1
61187-35010

GRN21#,KZN215

 1
74598B - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

GRN21#

 1
74598-20010

GRN21#

 1
74598-20010

KZN215;GRN21#..5FC

 1
Common parts
90119-08B72
90119-08C45
90179-06323
91621-B0816
91621-J0814
91631-B0616
91631-J0612
91635-G0618
91674-80828
93568-55014
94150-80600
94150-80800
94334-15000

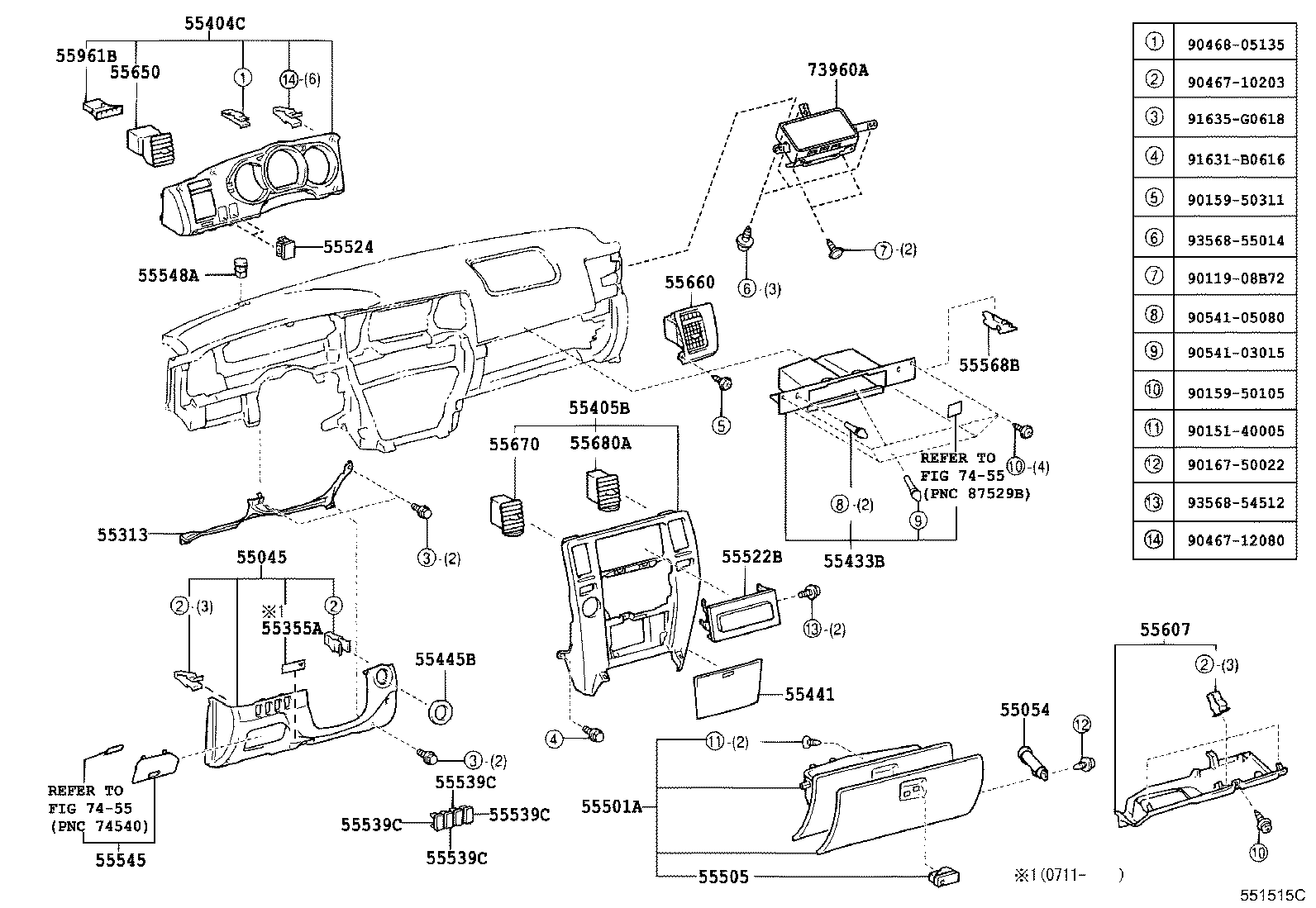

ILLUST NO. 2 OF 2(0508- )

Click highlighted areas on diagram

diagram 55045 55054 55313 55355A 55404C 55405B 55433B 55441 55445B 55501A 55505 55522B 55524 55539C 55539C 55539C 55539C 55545 55548A 55568B 55607 55650 55660 55670 55680A 55961B 73960A 7455 7455 9011908B72 9015140005 9015950105 9015950311 9016750022 9046710203 9046712080 9046805135 9054103015 9054105080 91631B0616 91635G0618 9356854512 9356855014
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-35112E0

GRN21#

FAWN,TRIM4#

 1
55045-35110B0

GRN21#,KZN215

STONE,TRIM1#

 1
55045-35110E0

GRN21#,KZN215

FAWN,TRIM4#

 1
55045-35111E0

GRN21#

FAWN,TRIM4#

 1
55045-35112B0

GRN21#

STONE,TRIM1#

 1
55045-35111B0

GRN21#

STONE,TRIM1#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-35010

GRN21#,KZN215

 1
55054-35010

GRN21#

 1
55313 - PANEL, INSTRUMENT, LOWER LH
55313-35020

GRN21#

 1
55313-35020

GRN21#

 1
55313-35020

KZN215;GRN21#..5FC

 1
55355A - PLATE, INSTRUMENT PANEL
55355-35080

GRN21#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-35300B0

GRN21#

DK.GRAY,TRIM1#,4#

 1
55404-35280B0

GRN21#,KZN215

DK.GRAY,TRIM1#,4#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-35420

GRN210

 1
55405-35420

GRN210

 1
55405-35420

GRN210..5FC

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55046-35020

GRN21#

 1
55046-35020

KZN215;GRN21#..5FC

 1
55046-35060

GRN21#

 1
55441 - BOX, INSTRUMENT PANEL
55440-35090

KZN215..SR5;GRN21#..5FC..SR5

 1
55440-35090

GRN21#..SR5

 1
55440-35090

GRN21#..SR5

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-60100B0

GRN21#

STONE,TRIM1#

 1
55445-60100B0

GRN21#

STONE,TRIM1#

 1
55445-60100E0

GRN21#

FAWN,TRIM4#

 1
55445-60100B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 1
55445-60100E0

GRN21#

FAWN,TRIM4#

 1
55445-60100E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55550-35060E0

GRN21#,KZN215

FAWN,TRIM4#

 1
55550-35060B0

GRN21#

STONE,TRIM1#

 1
55550-35060E0

GRN21#

FAWN,TRIM4#

 1
55550-35060B0

GRN21#,KZN215

STONE,TRIM1#

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55506-35020E0

GRN21#,KZN215

FAWN,TRIM4#

 1
55506-35020B0

GRN21#

STONE,TRIM1#

 1
55506-35020E0

GRN21#

FAWN,TRIM4#

 1
55506-35020B0

GRN21#,KZN215

STONE,TRIM1#

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

GRN21#..5FC;KZN215..SR5

 1
55522-52020

GRN21#..SR5

 1
55522-52020

GRN21#

 1
55524 - COVER, SWITCH BACE HOLE
55524-51010B2

KZN215;GRN21#..5FC

DK.GRAY,TRIM1#,4#

 1
55524-22080B2

GRN21#

DK.GRAY,TRIM1#,4#

 1
55524-51010B2

GRN21#

DK.GRAY,TRIM1#,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020C0

KZN215;GRN21#..5FC

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020C0

KZN215;GRN21#..5FC

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020C0

KZN215;GRN21#..5FC

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-51020C0

KZN215;GRN21#..5FC

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55539-51020C0

GRN21#

BLACK,TRIM1#,4#

 1
55545 - COVER, FUSE BOX OPENING
55545-35020E0

GRN21#

FAWN,TRIM4#

 1
55545-35020B0

GRN21#

STONE,TRIM1#

 1
55545-35020E0

GRN21#

FAWN,TRIM4#

 1
55545-35020E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 1
55545-35020B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 1
55545-35020B0

GRN21#

STONE,TRIM1#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-12070B4

GRN21#

DK.GRAY,TRIM1#,4#

 1
55548-12070B4

KZN215;GRN21#..5FC

DK.GRAY,TRIM1#,4#

 1
55548-12070B4

GRN21#

DK.GRAY,TRIM1#,4#

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-35030

GRN21#

 1
55568-35030

KZN215;GRN21#..5FC

 1
55568-35030

GRN21#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-35050

KZN215;GRN21#..5FC

 1
55607-35050

GRN21#

 1
55607-35050

GRN21#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-35070B0

GRN21#

DK.GRAY,TRIM1#,4#

 1
55650-35070B0

GRN21#,KZN215

DK.GRAY,TRIM1#,4#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-35090B0

KZN215;GRN21#..5FC

DK.GRAY,TRIM1#,4#

 1
55660-35090B0

GRN21#

DK.GRAY,TRIM1#,4#

 1
55660-35090B0

GRN21#

DK.GRAY,TRIM1#,4#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-35090

GRN21#

 1
55670-35090

GRN21#

 1
55670-35090

KZN215;GRN21#..5FC

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-35070

GRN21#

 1
55680-35070

KZN215;GRN21#..5FC

 1
55680-35070

GRN21#

 1
55961B - NOZZLE, SIDE DEFROSTER, NO.1
55961-35010C0

GRN21#,KZN215

BLACK

 1
55961-35010C0

GRN21#

BLACK

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-35050

GRN21#

 1
73960-35090

GRN21#

 1
73960-35050

KZN215;GRN21#..5FC

 1
Common parts
90119-08B72
90151-40005
90159-50105
90159-50311
90167-50022
90467-10203
90467-12080
90468-05135
90541-03015
90541-05080
91631-B0616
91635-G0618
93568-54512
93568-55014
Linked diagrams
7455

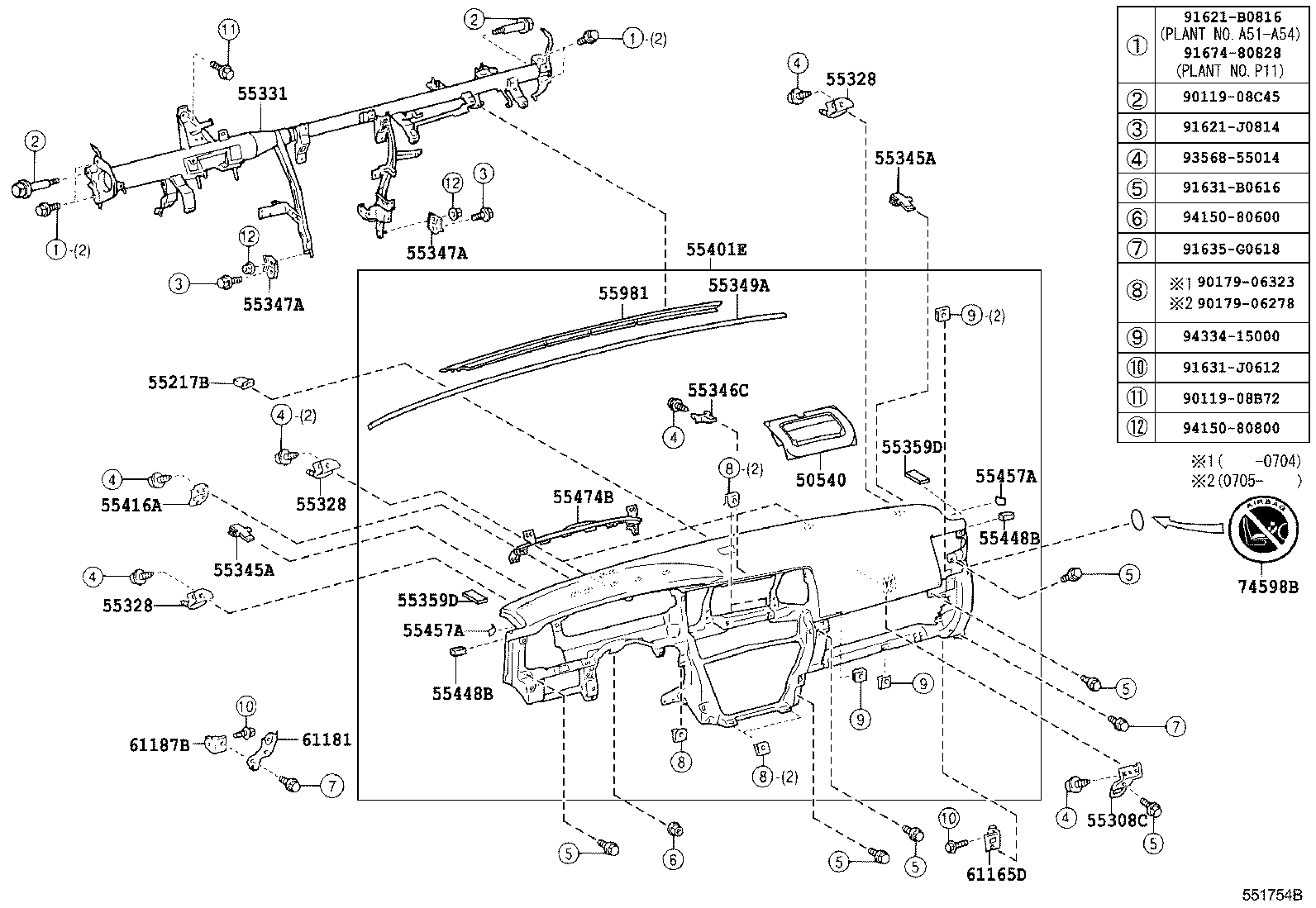

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

diagram 50540 55217B 55308C 55328 55328 55328 55331 55345A 55345A 55346C 55347A 55347A 55349A 55359D 55359D 55401E 55416A 55448B 55448B 55457A 55457A 55474B 55981 61165D 61181 61187B 74598B 9011908B72 9011908C45 9017906278 9017906323 91621B0816 91621J0814 91631B0616 91631J0612 91635G0618 9167480828 9356855014 9415080600 9415080800 9433415000
Part # Description Qty Price
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-35050

GRN21#,KZN215

 1
50540-35070

GRN21#

 1
55217B - RETAINER, DASH PANEL SILENCER
55217-35020

GRN21#,KZN215

 5
55217-35020

GRN21#

 5
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-35050

GRN21#

 1
55308-35030

GRN21#

 1
55308-35030

KZN215;GRN21#..5FC

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35060

GRN21#

 4
55328-35030

GRN21#,KZN215

NO.1

 2
55328-35050

GRN21#,KZN215

NO.2

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35060

GRN21#

 4
55328-35030

GRN21#,KZN215

NO.1

 2
55328-35050

GRN21#,KZN215

NO.2

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35060

GRN21#

 4
55328-35030

GRN21#,KZN215

NO.1

 2
55328-35050

GRN21#,KZN215

NO.2

 2
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-35140

GRN21#

 1
55330-35160

GRN21#

 1
55330-35140

KZN215;GRN21#..5FC

 1
55330-35190

GRN21#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-35020

GRN21#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-35020

GRN21#

 1
55346C - PIN, INSTRUMENT PANEL
55346-35010

GRN21#

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-35050

GRN21#

 2
55347-35050

KZN215;GRN21#..5FC

 2
55347-35050

GRN21#

 2
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-35050

GRN21#

 2
55347-35050

KZN215;GRN21#..5FC

 2
55347-35050

GRN21#

 2
55349A - CUSHION, INSTRUMENT PANEL
55349-35040

GRN21#,KZN215

 1
55349-35040

GRN21#

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-35020

GRN21#,KZN215

 2
55359-35020

GRN21#

 2
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-35020

GRN21#,KZN215

 2
55359-35020

GRN21#

 2
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-35900B1

GRN21#,KZN215

FAWN,TRIM4#

 1
55401-35070B1

GRN21#

FAWN,TRIM4#

 1
55401-35900B0

GRN21#,KZN215

STONE,TRIM1#

 1
55401-35070B0

GRN21#

STONE,TRIM12

 1
55401-35912B1

GRN21#

FAWN,TRIM42

 1
55401-35912B0

GRN21#

STONE,TRIM1#

 1
55416A - RETAINER, METER HOOD, NO.1
55416-35010

GRN21#

 1
55416-35010

GRN21#

 1
55416-35010

KZN215;GRN21#..5FC

 1
55448B - COVER, OIL RESERVOIR TANK, RH
55448-35020

GRN21#

 2
55448B - COVER, OIL RESERVOIR TANK, RH
55448-35020

GRN21#

 2
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-35010

GRN21#

 2
55457-35010

GRN21#,KZN215

 2
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-35010

GRN21#

 2
55457-35010

GRN21#,KZN215

 2
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55474-35020B1

GRN21#

DK.GRAY,TRIM1#,4#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-35010B1

GRN21#

DK.GRAY,TRIM1#,4#

 1
61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE
61165-35020

GRN21#,KZN215

 1
61165-35020

GRN21#

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
61181-35030

GRN21#,KZN215

 1
61181-35030

GRN21#

 1
61187B - BRACKET, INSTRUMENT PANEL SIDE, NO.4
61187-35010

GRN21#

 1
61187-35010

GRN21#,KZN215

 1
74598B - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

GRN21#

 1
74598-20010

GRN21#

 1
74598-20010

KZN215;GRN21#..5FC

 1
Common parts
90119-08B72
90119-08C45
90179-06278
90179-06323
91621-B0816
91621-J0814
91631-B0616
91631-J0612
91635-G0618
91674-80828
93568-55014
94150-80600
94150-80800
94334-15000
