GRN210L-GKAGK (2005)

Toyota 4runner

Production Aug 2005 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0908)1GRFE

Click highlighted areas on diagram

12V 1.6KW

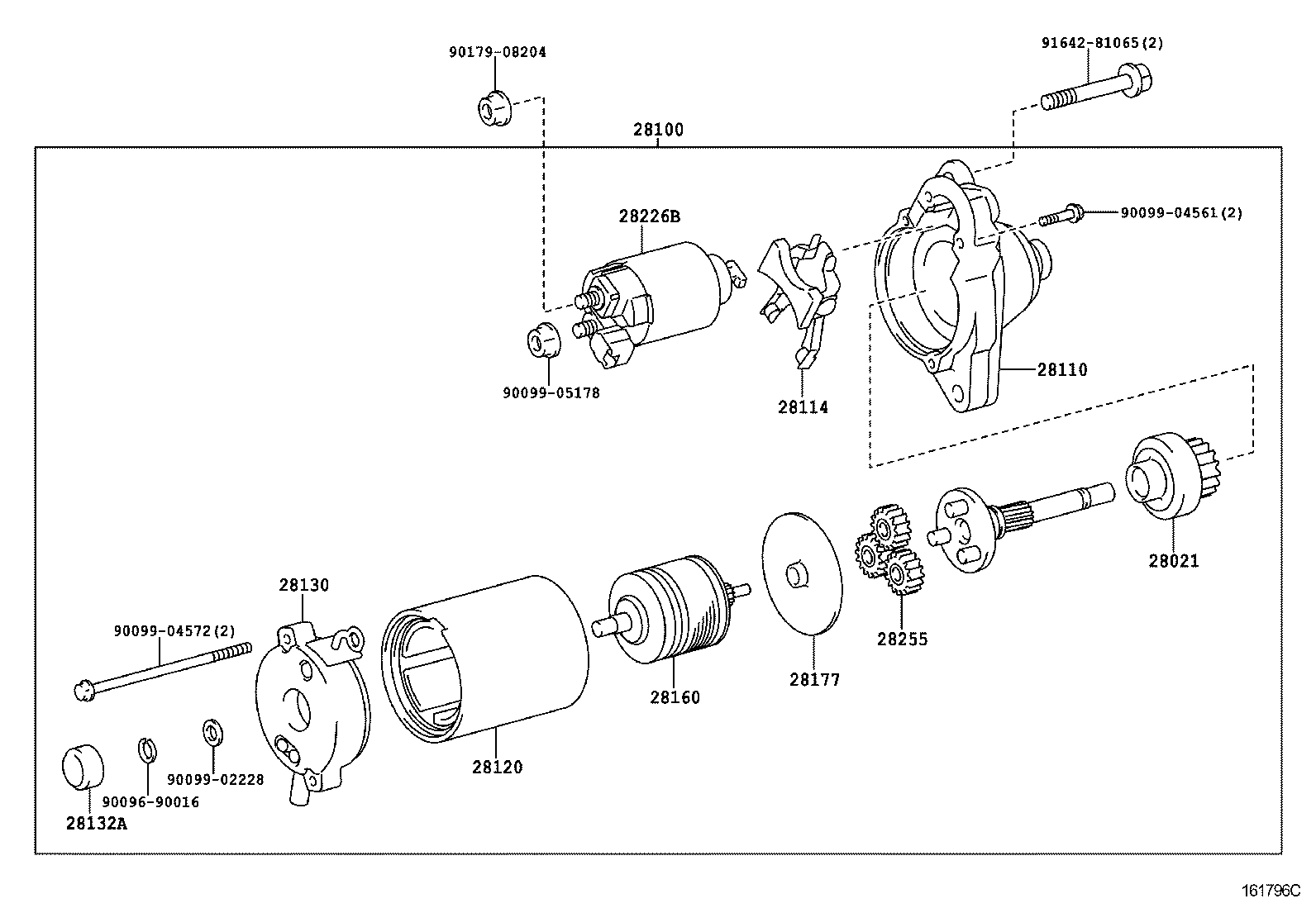

diagram 28021 28100 28110 28114 28120 28130 28132A 28160 28177 28226B 28255 9009690016 9009902228 9009904561 9009904572 9009905178 9017908204 9164281065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060

1GRFE..GRN21#

 1
28021-21060

1GRFE..GRN21#

 1
28021-21060

1GRFE..GRN21#..5FC

 1
28100 - STARTER ASSY
28100-31040

1GRFE..GRN21#

12V 1.6KW

 1
28100-31040

1GRFE..GRN21#

12V 1.6KW

 1
28100-31040

1GRFE..GRN21#..5FC

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-31040

1GRFE..GRN21#

 1
28110-31040

1GRFE..GRN21#

 1
28110-31040

1GRFE..GRN21#..5FC

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-21060

1GRFE..GRN21#

 1
28114-21060

1GRFE..GRN21#..5FC

 1
28114-21060

1GRFE..GRN21#

 1
28120 - YOKE ASSY, STARTER
28120-28060

1GRFE..GRN21#

 1
28120-28040

1GRFE..GRN21#

 1
28120-28040

1GRFE..GRN21#

 1
28120-28040

1GRFE..GRN21#..5FC

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-31040

1GRFE..GRN21#

 1
28130-31040

1GRFE..GRN21#

 1
28130-31040

1GRFE..GRN21#..5FC

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

1GRFE..GRN21#..5FC

 1
28132-28040

1GRFE..GRN21#

 1
28132-28040

1GRFE..GRN21#

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

1GRFE..GRN21#

 1
28160-21060

1GRFE..GRN21#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

1GRFE..GRN21#..5FC

 1
28177-28040

1GRFE..GRN21#

 1
28177-28040

1GRFE..GRN21#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-22061

1GRFE..GRN21#

 1
28226-22061

1GRFE..GRN21#

 1
28255 - GEAR, PLANET
28255-28040

1GRFE..GRN21#..5FC

 3
28255-28040

1GRFE..GRN21#

 3
28255-28040

1GRFE..GRN21#

 3
Common parts
90096-90016
90099-02228
90099-04561
90099-04572
90099-05178
90179-08204
91642-81065
