GRN210L-GKAGK (2004)

Toyota 4runner

Production Aug 2004 - Aug 2005
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0211-0508)

Click highlighted areas on diagram

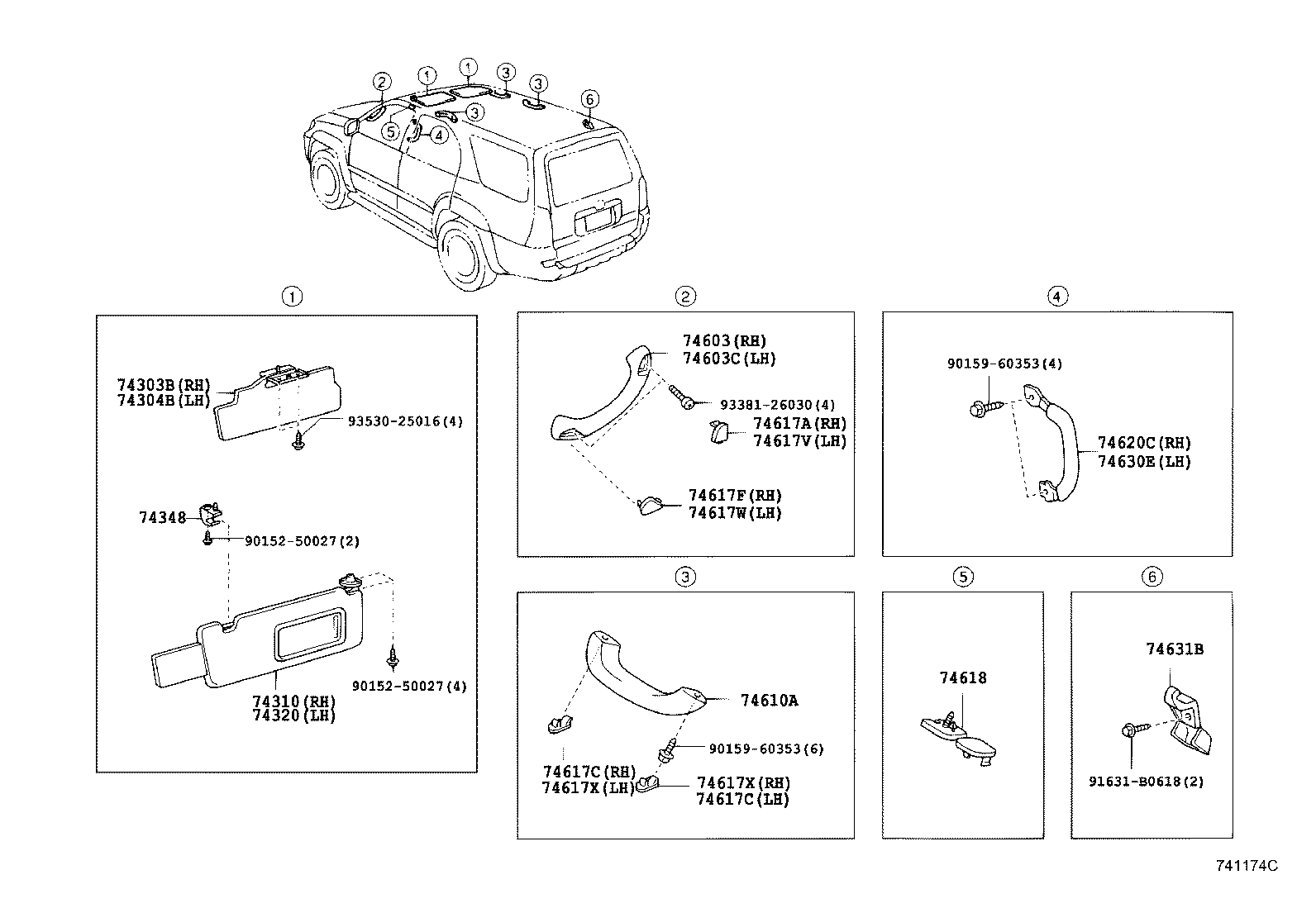

VISOR & ASSIST GRIP

diagram 74303B 74304B 74310 74320 74348 74603 74603C 74610A 74617A 74617C 74617C 74617F 74617V 74617W 74617X 74617X 74618 74620C 74630E 74631B 9015250027 9015250027 9015960353 9015960353 91631B0618 9338126030 9353025016
Part # Description Qty Price
74303B - VISOR SUB-ASSY, RH
74303-35010B0

GRN21#

STONE,TRIM1#

 1
74303-35010E0

GRN21#

FAWN,TRIM4#

 1
74303-35010B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 1
74303-35010E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 1
74304B - VISOR SUB-ASSY, LH
74304-35010B0

GRN21#

STONE,TRIM1#

 1
74304-35010B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 1
74304-35010E0

GRN21#

FAWN,TRIM4#

 1
74304-35010E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 1
74310 - VISOR ASSY, RH
74310-35850E0

GRN21#,KZN215..SR5

FAWN,TRIM4#

 1
74310-35860E0

KZN215..SR5;GRN21#..5FC..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,FAWN,TRIM4#

 1
74310-35860B0

GRN21#..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,STONE,TRIM1#

 1
74310-35860E0

GRN21#..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,FAWN,TRIM4#

 1
74310-35860B0

KZN215..SR5;GRN21#..5FC..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,STONE,TRIM1#

 1
74310-35850B0

GRN21#,KZN215..SR5

STONE,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-3D030B0

GRN21#,KZN215..SR5

STONE,TRIM1#

 1
74320-3D040E0

KZN215..SR5;GRN21#..5FC..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,FAWN,TRIM4#

 1
74320-3D040B0

GRN21#..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,STONE,TRIM1#

 1
74320-3D040B0

KZN215..SR5;GRN21#..5FC..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,STONE,TRIM1#

 1
74320-3D030E0

GRN21#,KZN215..SR5

FAWN,TRIM4#

 1
74320-3D040E0

GRN21#..SR5

SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB,FAWN,TRIM4#

 1
74348 - HOLDER, VISOR
74348-34010E1

GRN21#

FAWN,TRIM4#

 2
74348-34010B3

KZN215;GRN21#..5FC

STONE,TRIM1#

 2
74348-34010B3

GRN21#

STONE,TRIM1#

 2
74348-34010E1

KZN215;GRN21#..5FC

FAWN,TRIM4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-60010E0

GRN21#,KZN215

FAWN,TRIM4#

 1
74603-60010B0

GRN21#,KZN215

STONE,TRIM1#

 1
74603C - GRIP SUB-ASSY, ASSIST
74603-60010B0

GRN21#,KZN215

STONE,TRIM1#

 1
74603-60010E0

GRN21#,KZN215

FAWN,TRIM4#

 1
74610A - GRIP SUB-ASSY, ASSIST
74603-60010B0

GRN21#,KZN215

STONE,TRIM1#

 3
74603-60010E0

GRN21#,KZN215

FAWN,TRIM4#

 3
74617A - PLUG, ASSIST GRIP
74617-60040E0

GRN21#,KZN215

FAWN,TRIM4#

 1
74617-60040B0

GRN21#,KZN215

STONE,TRIM1#

 1
74617C - PLUG, ASSIST GRIP
74617-60040B0

GRN21#,KZN215

STONE,TRIM1#

 3
74617-60040E0

GRN21#,KZN215

FAWN,TRIM4#

 3
74617C - PLUG, ASSIST GRIP
74617-60040B0

GRN21#,KZN215

STONE,TRIM1#

 3
74617-60040E0

GRN21#,KZN215

FAWN,TRIM4#

 3
74617F - PLUG, ASSIST GRIP
74617-60050E0

GRN21#,KZN215

FAWN,TRIM4#

 1
74617-60050B0

GRN21#,KZN215

STONE,TRIM1#

 1
74617V - PLUG, ASSIST GRIP
74617-60050B0

GRN21#,KZN215

STONE,TRIM1#

 1
74617-60050E0

GRN21#,KZN215

FAWN,TRIM4#

 1
74617W - PLUG, ASSIST GRIP
74617-60040B0

GRN21#,KZN215

STONE,TRIM1#

 1
74617-60040E0

GRN21#,KZN215

FAWN,TRIM4#

 1
74617X - PLUG, ASSIST GRIP
74617-60050B0

GRN21#,KZN215

STONE,TRIM1#

 3
74617-60050E0

GRN21#,KZN215

FAWN,TRIM4#

 3
74617X - PLUG, ASSIST GRIP
74617-60050B0

GRN21#,KZN215

STONE,TRIM1#

 3
74617-60050E0

GRN21#,KZN215

FAWN,TRIM4#

 3
74618 - PLUG, FRONT ASSIST GRIP
74618-35010E0

GRN21#

FAWN,TRIM4#

 2
74618-35010B0

GRN21#

STONE,TRIM1#

 2
74618-35010E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 2
74618-35010B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 2
74620C - GRIP ASSY, ASSIST, REAR RH
74620-60050B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 1
74620-60050E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 1
74620-60050B0

GRN21#

STONE,TRIM1#

 1
74620-60050E0

GRN21#

FAWN,TRIM4#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74630-60050E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 1
74630-60050B0

GRN21#

STONE,TRIM1#

 1
74630-60050E0

GRN21#

FAWN,TRIM4#

 1
74630-60050B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 1
74631B - HOOK, COAT
74631-35030B0

KZN215;GRN21#..5FC

STONE,TRIM1#

 2
74631-35030B0

GRN21#

STONE,TRIM1#

 2
74631-35030E0

KZN215;GRN21#..5FC

FAWN,TRIM4#

 2
74631-35030E0

GRN21#

FAWN,TRIM4#

 2
Common parts
90152-50027
90159-60353
91631-B0618
93381-26030
93530-25016
