GRN210L-GKAGK (2004)
Toyota 4runner
Production
Aug 2004
-
Aug 2005
Engine
1GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )GRN210

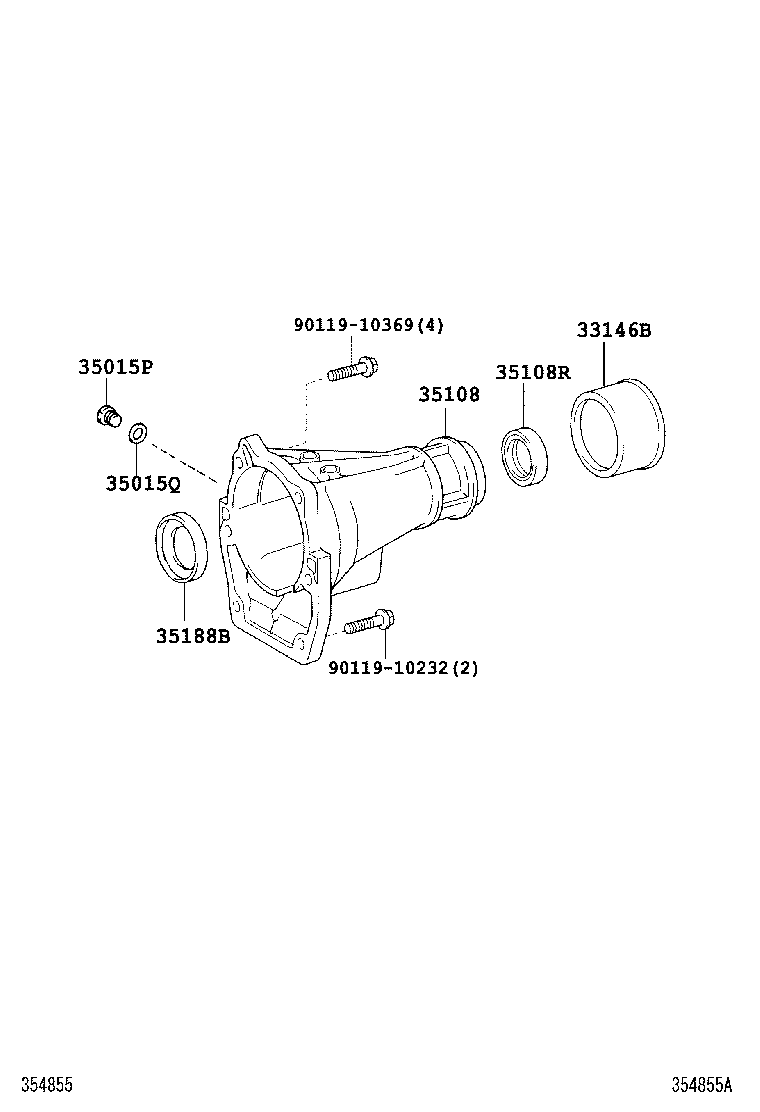

Click highlighted areas on diagram
A750E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146B - DEFLECTOR, EXTENSION HOUSING DUST | ||||
| 33146-30020 |
GRN210 |
1 | ||
| 35015P - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPT | ||||
| 90341-18059 |
GRN210 |
1 | ||
| 35015Q - RING, O(FOR TRANSMISSION CASE ADAPTER PLUG) | ||||
| 90301-15004 |
GRN210 |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-35100 |
GRN210 |
1 | ||
| 35108-35070 |
GRN210 |
1 | ||
| 35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING | ||||
| 90311-40001 |
GRN210..5FC |
1 | ||
| 90311-40001 |
GRN210 |
1 | ||
| 35188B - RETAINER, EXTENSION HOUSING BUSH | ||||
| 35188-35010 |
GRN210 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10369 | ||||
