NSP131L-CGFNBW (2017)

Toyota Yaris Grmn

Production Nov 2017 - Apr 2018
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )LHD

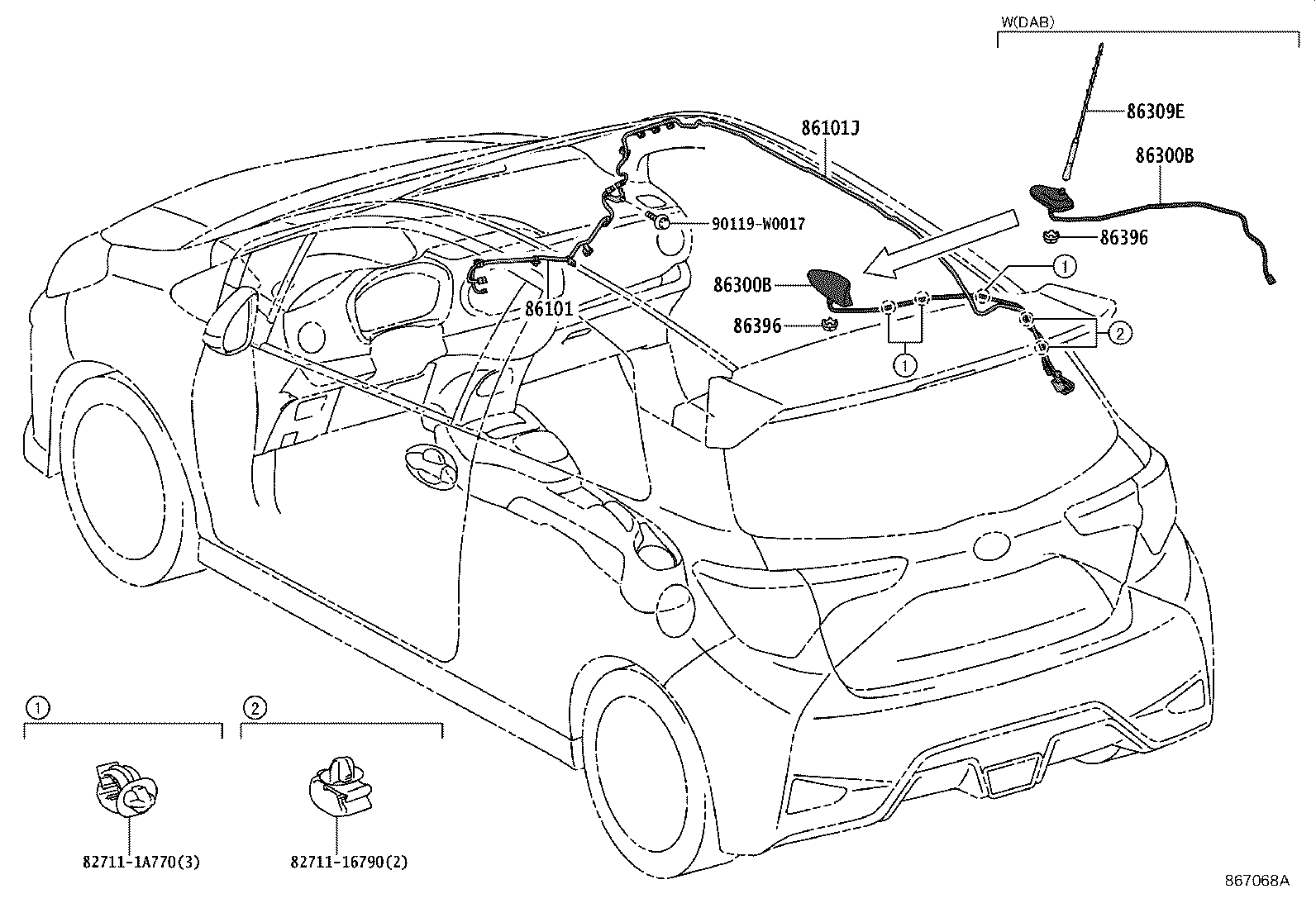

Click highlighted areas on diagram

diagram 8271116790 827111A770 86101 86101J 86300B 86300B 86309E 86396 86396 90119W0017
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0D410

NSP131..LHD

 1
86101-0D650

NSP131..LHD

ANTENNA-WITH(DAB)

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0D400

NSP131

 1
86101-0D390

NSP131

ANTENNA-WITH(DAB)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D490C0

NSP131

BLACK MC.,2NR

 1
863C0-0D010

NSP131

ANTENNA-WITH(DAB)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D490C0

NSP131

BLACK MC.,2NR

 1
863C0-0D010

NSP131

ANTENNA-WITH(DAB)

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0D210

NSP131

ANTENNA-WITH(DAB)

 1
86396 - NUT, ANTENNA
86396-47010

NSP131

 1
86396 - NUT, ANTENNA
86396-47010

NSP131

 1
Common parts
82711-16790
82711-1A770
90119-W0017
