NSP131L-CGFNBW (2017)

Toyota Yaris Grmn

Production Nov 2017 - Apr 2018
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

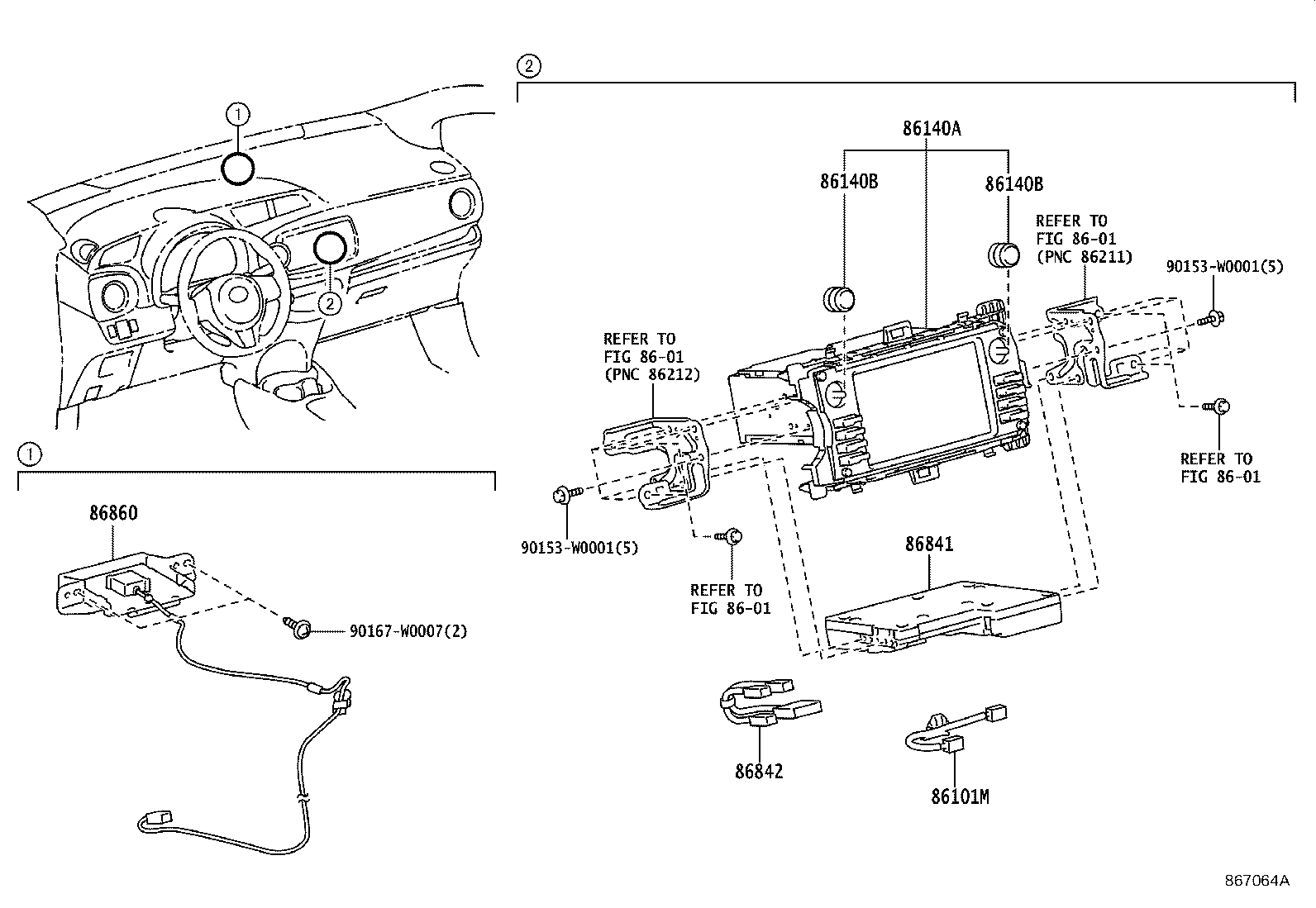

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86101M 86140A 86140B 86140B 86841 86842 86860 90153W0001 90153W0001 90167W0007
Part # Description Qty Price
86101M - CORD SUB-ASSY, ANTENNA
86705-02070

NSP131

EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE)

 1
86705-02070

NSP131

EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC)

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-0D340

NSP131..LHD

FUJITSU TEN,ANTENNA-WITH(DAB)

 1
86140-0D440

NSP131..LHD

FUJITSU TEN

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25299

NSP131

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25299

NSP131

 2
86841 - COMPUTER, NAVIGATION
86840-0F040

NSP131

EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE)

 1
86840-0F020

NSP131

EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC)

 1
86842 - WIRE, NAVIGATION, NO.1
86842-12010

NSP131

EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC)

 1
86842-12010

NSP131

EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE)

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-0D020

NSP131

EMV & NAVIGATION SYSTEM-WITH(WESTERN EUROPE SPEC)

 1
86860-0D020

NSP131

EMV & NAVIGATION SYSTEM-WITH(EASTERN EUROPE)

 1
Common parts
90153-W0001
90167-W0007
Linked diagrams
8601
