NSP131L-CGFNBW (2017)
Toyota Yaris Grmn

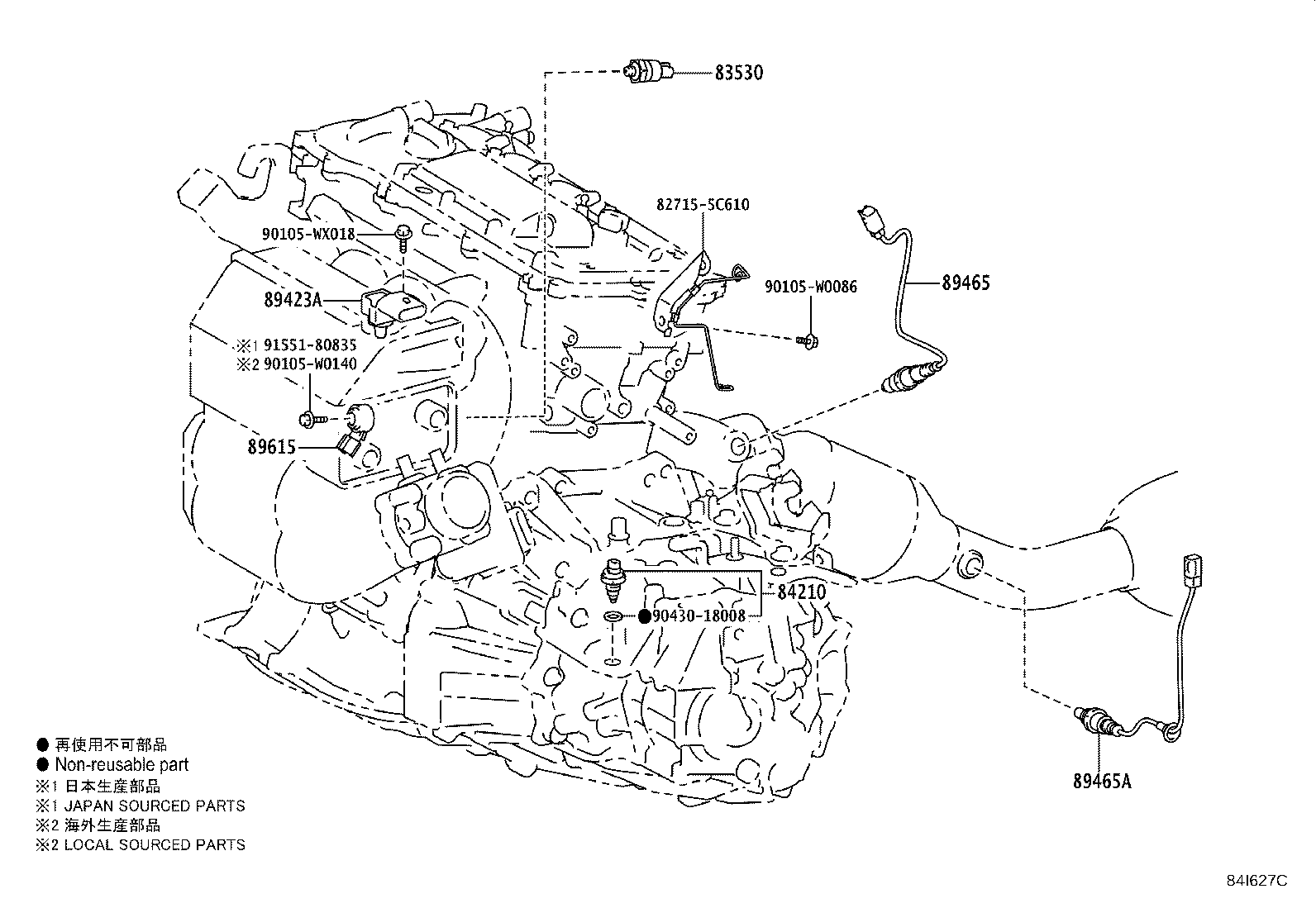

ILLUST NO. 1 OF 7(1711- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NSP131 DENSO |
1 | ||
| 83530-60020 |
NSP131 YAZAKI |
1 | ||
| 83530-05010 |
NSP131 VALEO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NSP131 |
1 | ||
| 89423A - SENSOR, MANIFOLD TEMPERATURE | ||||
| 89423-YV010 |
NSP131 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
NSP131 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52880 |
NSP131 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02020 |
NSP131 |
1 | ||
| Common parts | ||||
| 82715-5C610 | ||||
| 90105-W0086 | ||||
| 90105-W0140 | ||||
| 90105-WX018 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||

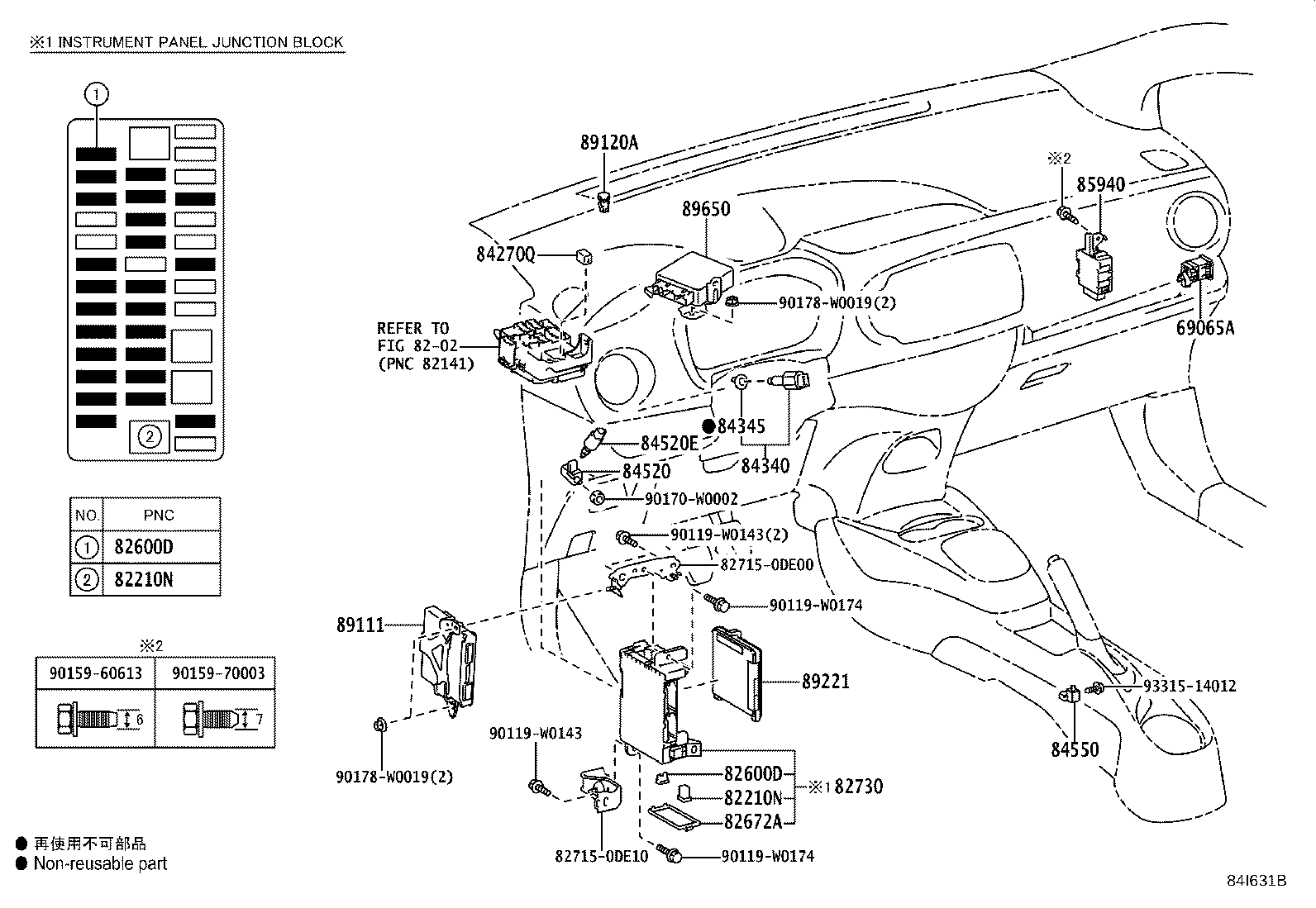

ILLUST NO. 4 OF 7(1711- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
NSP131 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NSP131 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NSP131 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
NSP131 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NSP131 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NSP131 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
NSP131 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NSP131 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP131 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
NSP131 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NSP131 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NSP131 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
NSP131 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NSP131 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP131 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52090 |
NSP131 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52K40 |
NSP131 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
NSP131 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09100 |
NSP131 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NSP131 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NSP131 |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 88280-42010 |
NSP131..LHD |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NSP131 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0D030 |
NSP131 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-52050 |
NSP131 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
NSP131 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0D360 |
NSP131..LHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52F20 |
NSP131..LHD JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 82715-0DE00 | ||||
| 82715-0DE10 | ||||
| 90119-W0143 | ||||
| 90119-W0174 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90170-W0002 | ||||
| 90178-W0019 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

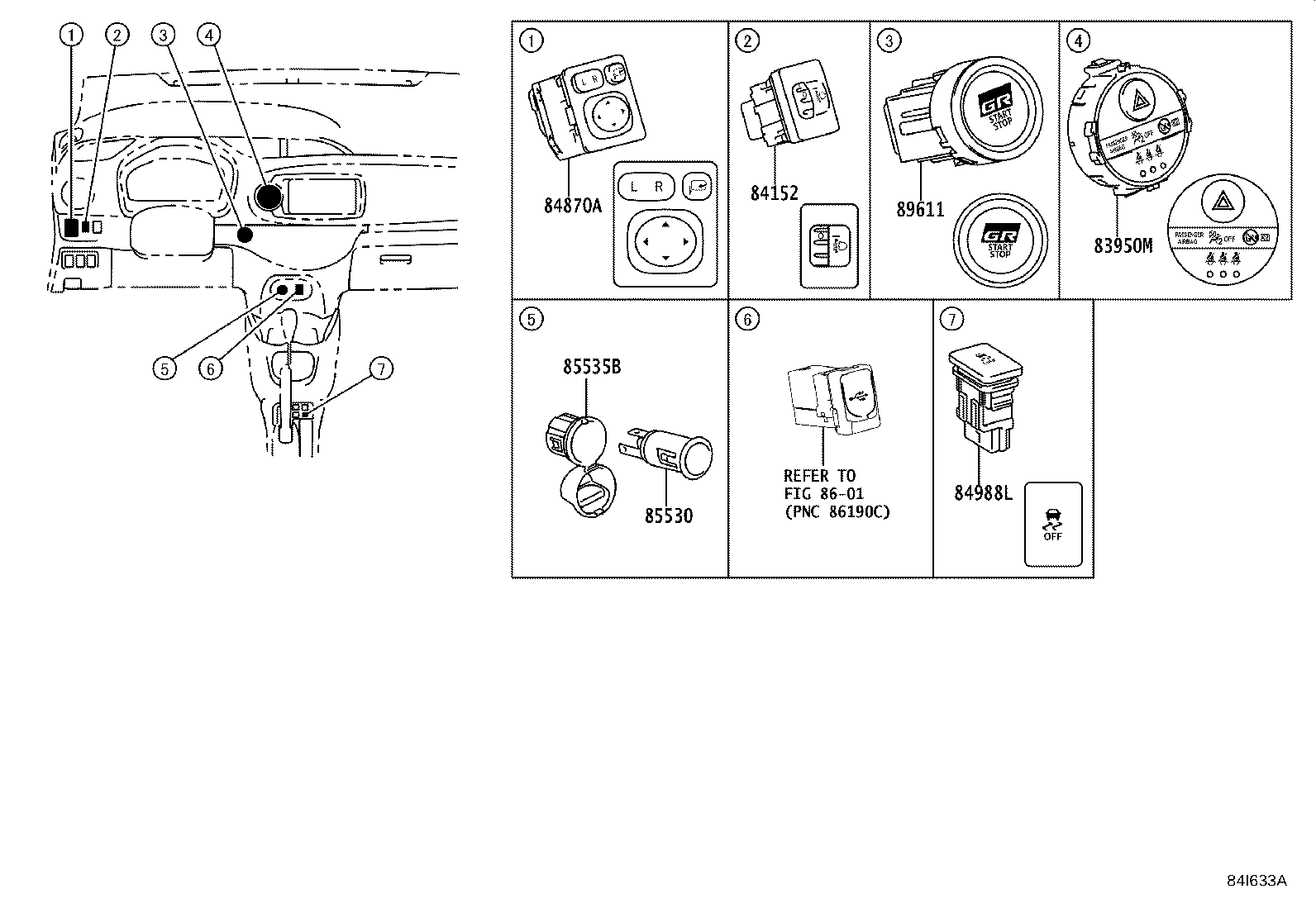

ILLUST NO. 5 OF 7(1711- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0D100 |
NSP131 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
NSP131 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D151 |
NSP131 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02041 |
NSP131 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D021 |
NSP131 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
NSP131 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52040 |
NSP131 |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||

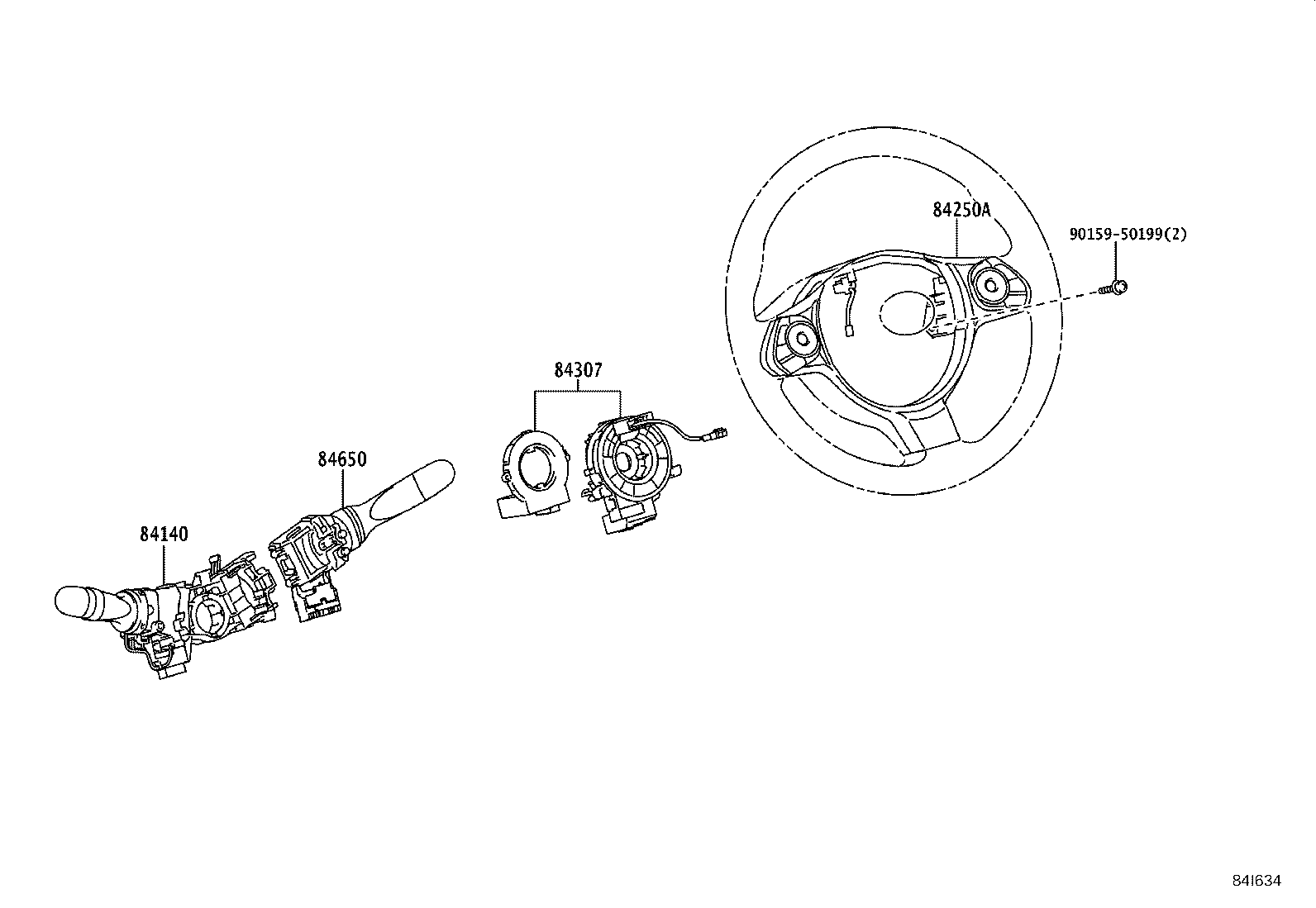

ILLUST NO. 6 OF 7(1711- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D310 |
NSP131 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52480B1 |
NSP131 SATIN SILVER,TRIM2# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0D250 |
NSP131 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D190 |
NSP131 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

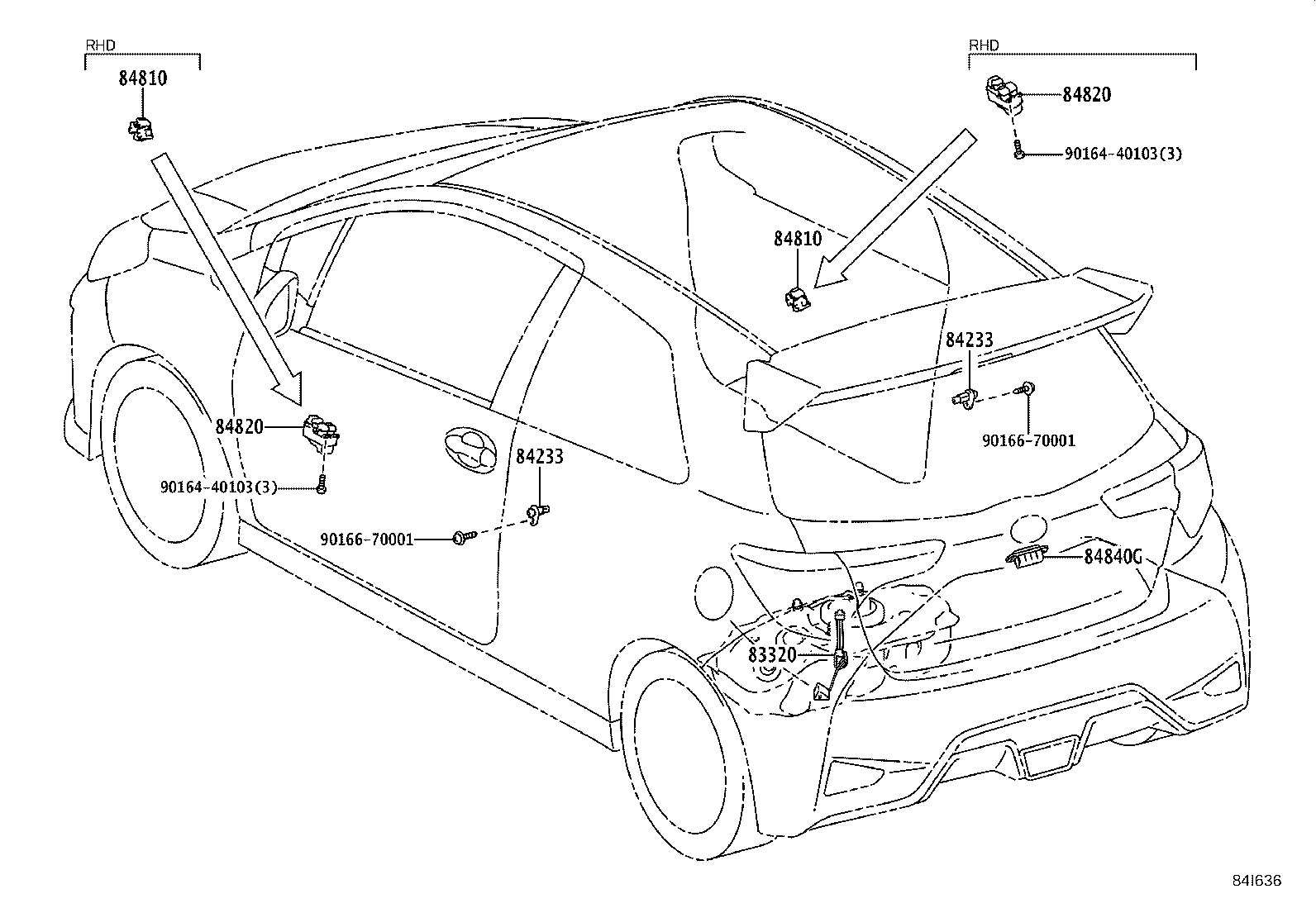

ILLUST NO. 7 OF 7(1711- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52261 |
NSP131 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NSP131 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NSP131 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NSP131 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NSP131 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02340 |
NSP131..LHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02340 |
NSP131..LHD |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-02060 |
NSP131 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||

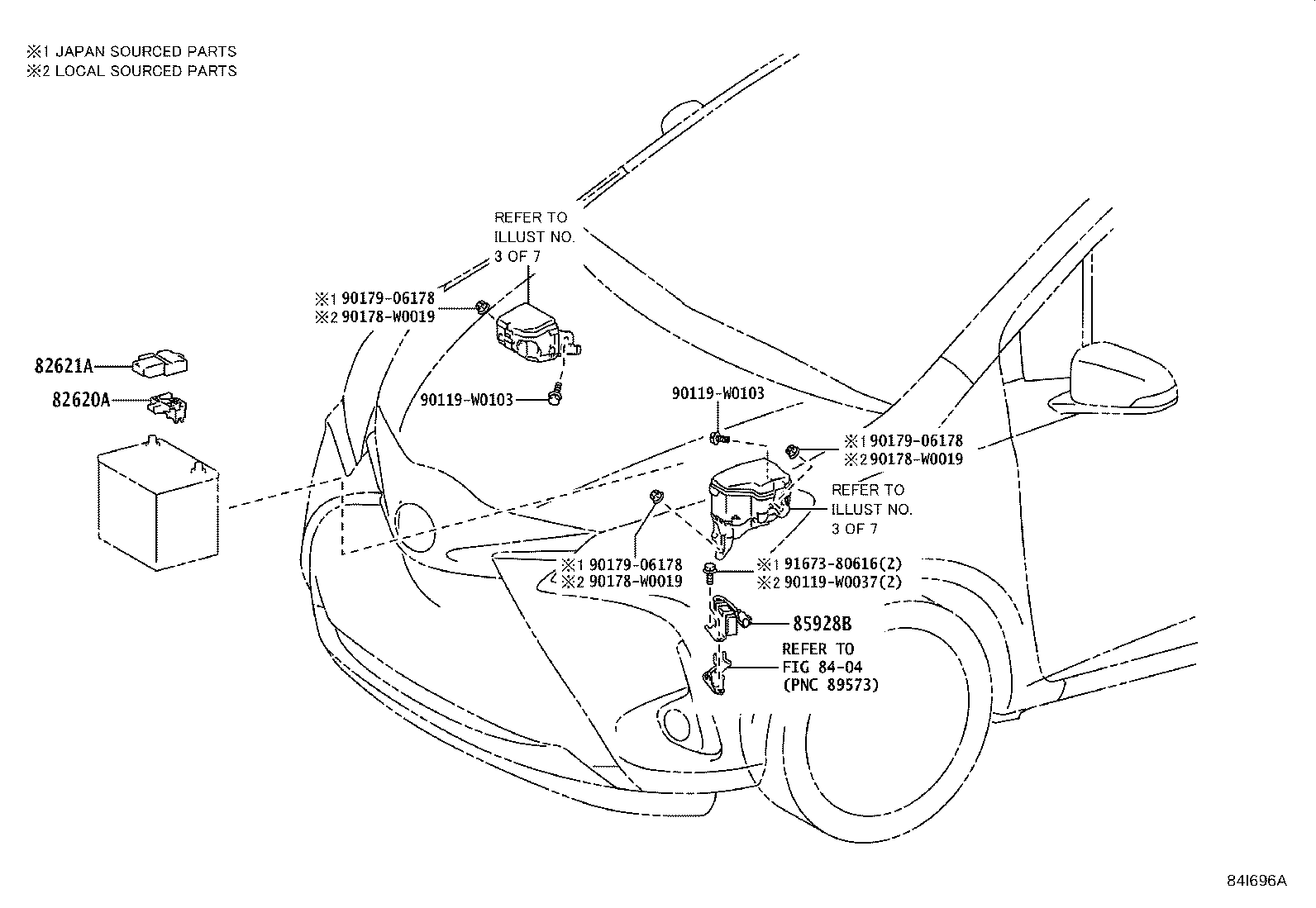

ILLUST NO. 2 OF 7(1711- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NSP131 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-0D020 |
NSP131 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NSP131 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0103 | ||||
| 90178-W0019 | ||||
| 90179-06178 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||

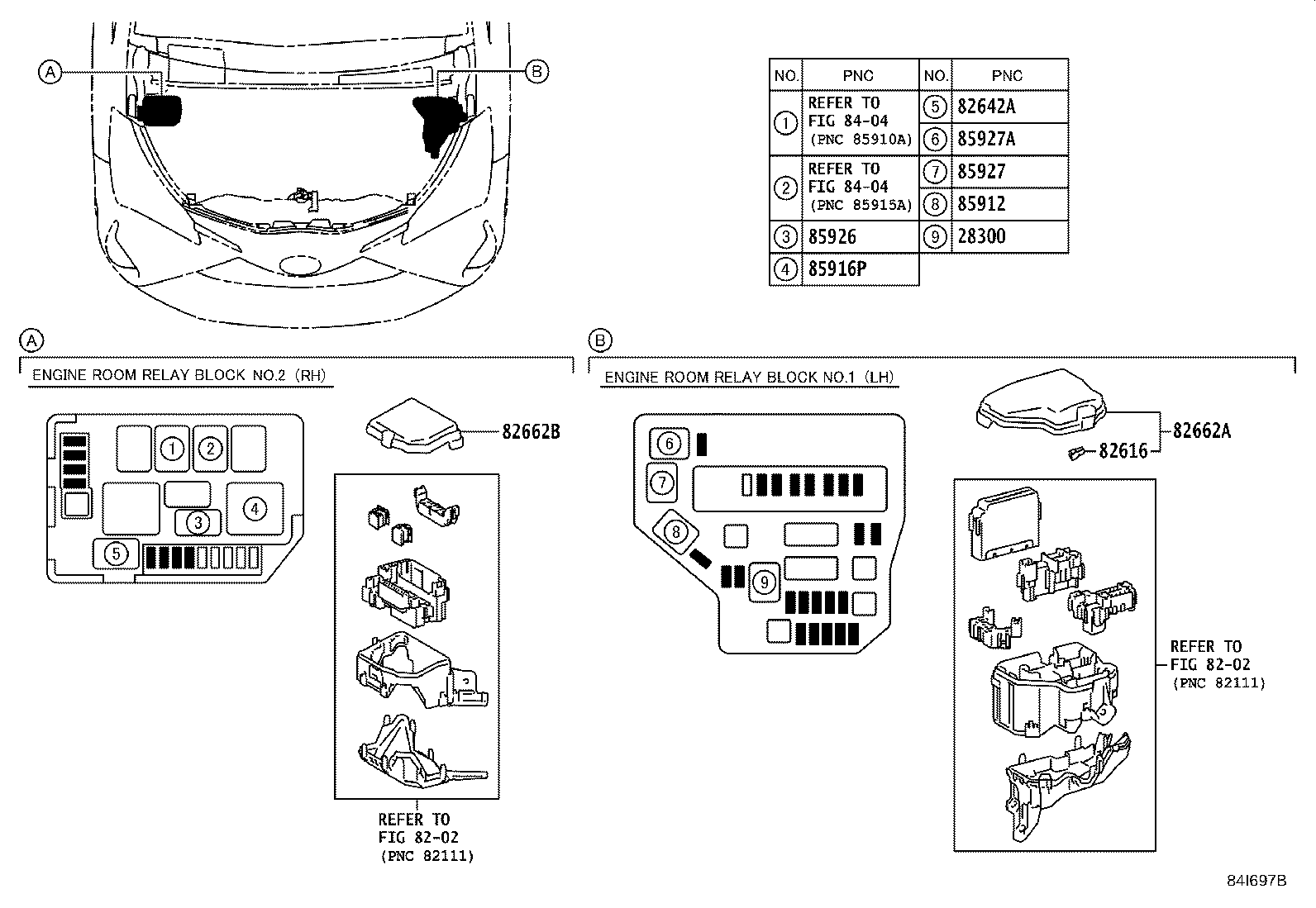

ILLUST NO. 3 OF 7(1711- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
2ZRFE..NSP131 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NSP131 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90080-87021 |
NSP131 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0DD40 |
NSP131 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0DD50 |
NSP131 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87021 |
NSP131 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
NSP131 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
NSP131 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
NSP131 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP131 (J) |
1 | ||
| 90080-87020 |
NSP131 (L) |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
